External SUS 304 316 Decorative Woven Wire Mesh Curtain Wall ISO9002

External SUS 304 316 Decorative Woven Wire Mesh Curtain Wall ISO9002
External SUS 304 316 Decorative Woven Wire Mesh Curtain Wall ISO9002 External SUS 304 316 Decorative Woven Wire Mesh Curtain Wall ISO9002 External SUS 304 316 Decorative Woven Wire Mesh Curtain Wall ISO9002 External SUS 304 316 Decorative Woven Wire Mesh Curtain Wall ISO9002

Large Image :  External SUS 304 316 Decorative Woven Wire Mesh Curtain Wall ISO9002

Product Details:
Place of Origin: China
Brand Name: Velp
Certification: SGS CE ISO9002 BV
Model Number: Decorative woven mesh-17
Payment & Shipping Terms:
Minimum Order Quantity: 50sqm
Price: USD 10-20 Per Sqm
Packaging Details: Wooden Case / Iron Pallet + Bubble Film +Waterproof Paper +Safety Belts
Delivery Time: 15 days
Payment Terms: MoneyGram, Western Union, T/T, L/C
Supply Ability: 2000 sqm per week

External SUS 304 316 Decorative Woven Wire Mesh Curtain Wall ISO9002

Description
Product Name: Curtain Wall External Architectural Stainless Steel Cable Rod Decorative Mesh Material: Aisi 304 316 316L
Wire Diameter: 4.0mm Characteris: Easy To Install,transport,wide Range Of Uses
Color: Nature Color,brass Color,different Color,brass,copper Feature: Durable,ventilation,transmission,fireproof,
Application: Internal And Outside Decoration,restaurants,opera,exhibition Halls. Surface: Plating,Powder Coating,PVDF,Anodized Oxidation
High Light:

SUS304 decorative woven wire mesh

,

ISO9002 ss woven wire mesh

,

ISO9002 Decorative Woven Wire Mesh

Curtain Wall External Architectural Stainless Steel Cable Rod Decorative Mesh

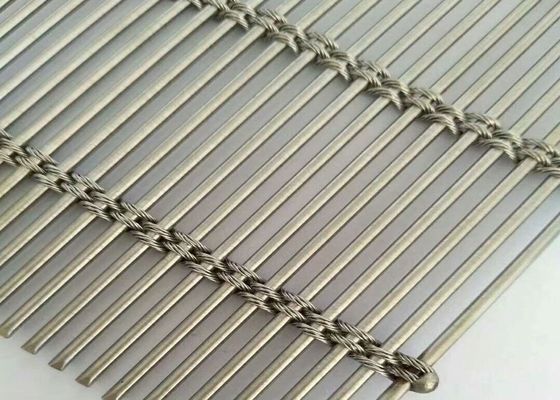

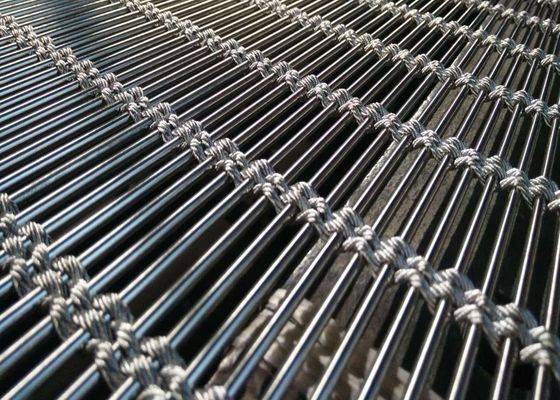

Stainless steel cable rod decorative mesh basic information



Decorative woven mesh is one kind of our wire mesh products.Also named metal fabric or architectural mesh.It is weaved with high quality stainless steel wire, aluminum alloy wire,brass wire,copper wire or other alloy materials.It is a new decorative material in the modern industrial and architectural decoration applications.



                                   Architectural Stainless Steel Cable Rod Decorative Mesh
Material  Cable diameter  Cable pitch mm  Rod  diameter mm  Rod pitch mm  Weight kg/sqm
SUS 304 316 316L    0.75mm*4 26.4 1.5 3.0 5.3
1.0mm*4 36.0 2.0 4.0 7.0
0.6mm*2.0 5.5 0.8 2.3 2.6
2.0mm*4 50.0 3.0 6.0 11.56
3.0mm*3 40.0 3.0 11.0 9.5
2.75mm*2 40.0 4.0 14.5 9.41
1.05mm*2 16.0 4.0 7.0 14.9
2.0mm*3 80.0 3.0 10.0 6.6
1.6mm*1 3.2 1.2 6.0 5.0
2.0mm*1 3.1 1.2 5.0 10.0
2.5mm*1 5.0 2.0 6.0 12.2
2.0mm*3             80.0               3.0          10.0             7.3



Stainless steel cable rod decorative mesh feature:



1. Fireproof: Its meting point is far higher than that of cloth.

2. Stable:No shrinks or stretches when used

3. Light diffusing:Light filtration is controlled by curtain fullness and light conditions

4. No maintenance: Stains can be washed off by mild soap water.

5. Permanent:It will last longer than your life except you don't like to hang it any more.



The installation methods

External SUS 304 316 Decorative Woven Wire Mesh Curtain Wall ISO9002 0

External SUS 304 316 Decorative Woven Wire Mesh Curtain Wall ISO9002 1

External SUS 304 316 Decorative Woven Wire Mesh Curtain Wall ISO9002 2

Staibless steel cable rod decorative mesh usage :



   Metal decorative stainless steel curtain screen is also used in the structure of the facade,partition,ceiling,balcony and corridors,shutter,stairs passage,high grade internal and external decoration of airport station,hotels,senior villas,museums,theaters,concern halls,office buildings,exhibition halls,shopping malls etc.Especially the decorative mesh show more elegant,transparant and plain visual effect.



External SUS 304 316 Decorative Woven Wire Mesh Curtain Wall ISO9002 3

External SUS 304 316 Decorative Woven Wire Mesh Curtain Wall ISO9002 4

External SUS 304 316 Decorative Woven Wire Mesh Curtain Wall ISO9002 5

External SUS 304 316 Decorative Woven Wire Mesh Curtain Wall ISO9002 6
