Product Details:
|
| Name: | Industrial Super Fine Filter Tube Slotted Stainless Steel Wedge Wire Mesh Filter Screen | Material: | Stainless Steel 201 304 316L |
|---|---|---|---|
| Wire Wrap Size: | 1.5*2.0mm 2*3mm 2.2*3.5mm 3*5mm | Out Diameter: | 28mm--600mm |
| Length: | Up To 6m Or As Client Requirements | After Sale Service: | Video Technical Support,online Support |
| Support Profile: | Flat,triangle Wire,round Wire, Trapezoid Wire | Application: | Architecture ,construction,waste Water Treatment |
| High Light: | Wedge Wire Filter Screen 600mm OD,Inckel Slotted Wedge Wire Filter Screen,Inconel Inckel wedge wire filter |
||

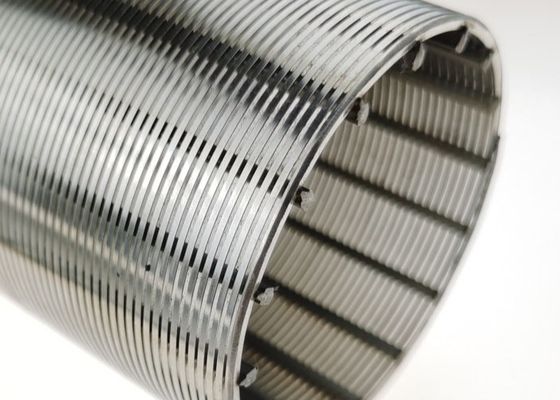

Industrial Super Fine Filter Tube Slotted Stainless Steel Wedge Wire Mesh Filter Screen
Wedge wire mesh filter screen basic information
Wedge wire also called wedge wire screen, is mainly made of stainless steel.And wedge wire products include wedge wire nozzle.cylinder,support grid and lateral assemblies.The size of the pores on the one side is smaller than the pores on the other side.So the wedge wire can greatly filter something from the small pore side to the large pore side without clogging.We can design the flow direction and shape to meet the application requirements.What is more.We can customized the wedge wire filter element such as filter tube,filter basket based on the clients requirements.
Wedge wire mesh filter screen specification
| Material | Stainless steel 304 304L 316 316L,hastelloy steel,nickle alloy steel or other alloy steel |
| Wedge wire |
Width:1.5 mm 1.8mm 2.3mm 3.0mm 3.3mm 3.7mm Height:2.2mm 2.5mm 2.7mm 3.6mm 4.3mm 4.7mm 5.6mm 6.3mm 7.0mm |
| Support rod |
Width:2.3mm 3.0mm 3.3mm 3.7mm Height:2.7mm 3.6mm 4.7mm 5.6mm 6.3mm Round : from 2.5mm---6.0mm |
| Note | Other specifications available as per request |
| Support profile | Flat,triangle wire,round wire,trapezoid wire |
| Length | Up to 6 meters |
| Diameter | From 25mm to 1200mm |
| End type | Standard type,end ring type,flange type,threaded type |
| Characteristics | Strong solid structure,High open area, accurate slot dimensions |
Wedge wire mesh filter screen benefits
* High quality steel for high strength
* High filtering efficiency without clogging
* Various types and sizes for choice
* Corrosion and rust resistance
* Easy installation and replacement
* Durable and long service life
Wedge wire mesh filter screen advantages
1. Various types and sizes for choice
We have standard type,end ring type,flange type,threaded type for your choose.
2.Corrosion and rust resistance
We use high quality stainless steel with long life span.
3.High filtering efficiency without clogging
The wedge wire can greatly filter something from the small pore side to the large pore side without clogging.
Wedge wire mesh filter screen application
It is mainly used in petroleum industry,chemical industry,heavy duty machine industry,food processing industry.pharmaceutical industry,environmental protect industry and ship manufacturing industry etc.
