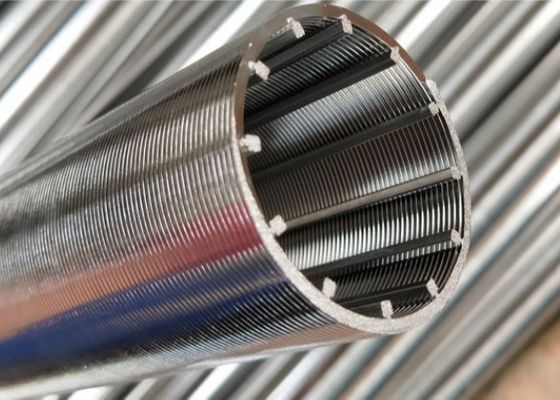

4-10mm V Shaped Wedge Wire Screens Cylinder 25 Micron Slot

4-10mm V Shaped Wedge Wire Screens Cylinder 25 Micron Slot
4-10mm V Shaped Wedge Wire Screens Cylinder 25 Micron Slot 4-10mm V Shaped Wedge Wire Screens Cylinder 25 Micron Slot 4-10mm V Shaped Wedge Wire Screens Cylinder 25 Micron Slot 4-10mm V Shaped Wedge Wire Screens Cylinder 25 Micron Slot

Large Image :  4-10mm V Shaped Wedge Wire Screens Cylinder 25 Micron Slot

Product Details:
Place of Origin: China
Brand Name: Velp
Certification: SGS CE ISO9002 BV
Model Number: Wedge wire screen-7
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: USD 10-20 Per pcs
Packaging Details: Wooden Case / Iron Pallet + Bubble Film +Waterproof Paper +Safety Belts
Delivery Time: 15 days
Payment Terms: MoneyGram, Western Union, T/T, L/C
Supply Ability: 2000 pcs per week

4-10mm V Shaped Wedge Wire Screens Cylinder 25 Micron Slot

Description
Name: Stainless Steel 316 100 Micron Slot Wedge Wire Screen Flat Sieve Panel For Sand Filtering Material: Stainless Steel 201 304 316L
Slot: 0.02mm--5.0mm Smaller On Available On Customer' Request Thickness: 4-10mm
Feature: Custom Design,lower Maintenance,less Costly,optional After Sale Service: Video Technical Support,online Support
Support Profile: Flat,triangle Wire,round Wire, Trapezoid Wire Application: Separating,filtering,media Retention,sizing,dewatering
High Light:

10mm V Shaped Wedge Wire Screens

,

Wedge Wire Screens Cylinder 25 Micron

,

25 Micron cylindrical wedge wire screens

Stainless Steel 316 100 Micron Slot Wedge Wire Screen Flat Sieve Panel For Sand Filtering





Flat sieve panel for sand filtering basic information



Wedge wire is a welded steel structure,mainly used for filtration,separation and retention media.It consists of surface profiles,Usually V shaped.That are resistance welded onto support profiles.The distance between the surface profiles is controlled very accurately.as it form the slot through which the filtrate flows.



Flat sieve panel for sand filtering specification



Name 316 100 Micron Slot Wedge Wire Screen Flat Sieve Panel For Sand Filtering
Profile wire

Wedge shape width 0.75mm 1.0mm 1.5mm

Height : 1.5mm 2.0mm 3.0mm

Diameter  25mm 40mm  Length 1000mm
Open area  Large open area Efficiency  High
Material SS 304 316 Monel,hastelloy,inconel,inckel etc Function Liquid filtering,solid separation
QC system Factory own control Cleaning way Back flush,easy to clean
Support rod Square shape width:2.0mm height:2.3mm 3.0mm Min slot size 25 micron
Thickness  0.8mm---2.5mm Length 1000mm
Filter rating  Up to 90%  Technique  Belgium welding



Flat sieve panel for sand filtering benefits



1.High dirt holding capacity

   High dirt holding capacity and filtering accuracy,High excellent permeability

2.High temperature

   High temperature and corrosion resistance.Little pressure loss and large flow.

3.Easy to clean

   Can be welded and machined becaused of its large filter area.Easy to clean and can be used for a longer time.



Flat sieve panel for sand filtering advantages



1.Multi layer sand control filter sleeve has high efficiency.

2.Uniform filter hole,high permeability and plugging resistance

3.Large filtration area and small flow resistance

4.Stainless steel excellent corrosion resistance,acid,alkali,salt corrosion resistance

5.Filter hole stable,strong deformation resistance.



Flat sieve panel for sand filtering application



Deinking stock washing

Intake structures of hydro plant

Pretreatment processing

Filter removal in starch industry for dewatering

Separating dofferent grades of coal

4-10mm V Shaped Wedge Wire Screens Cylinder 25 Micron Slot 0

4-10mm V Shaped Wedge Wire Screens Cylinder 25 Micron Slot 1



4-10mm V Shaped Wedge Wire Screens Cylinder 25 Micron Slot 2

4-10mm V Shaped Wedge Wire Screens Cylinder 25 Micron Slot 3
