High Filtration Stainless Steel Plain Weave Wire Mesh Liquid Filter Screen

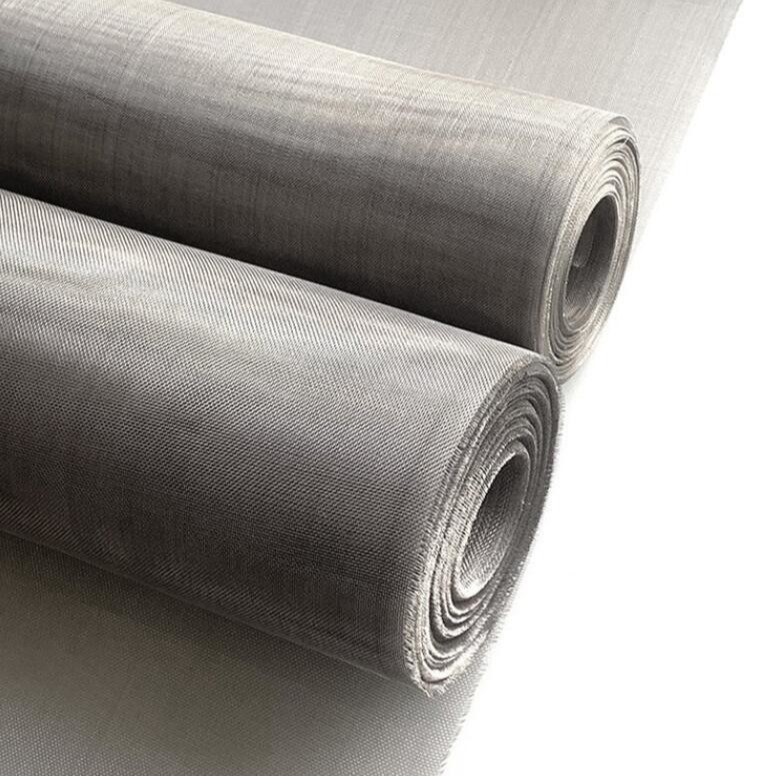

Stainless Steel Woven Mesh Introduction
Reverse Dutch Weave Wire Mesh / Screen / Cloth is a special weave wire mesh that is commonly used for high-performance filtration applications, especially in plastics processing, chemical processing and pharmaceutical applications. Compared to the standard plain Dutch Weave Wire Mesh, Reverse Dutch Weave wire mesh uses thicker wefts and thinner warps, which is essentially the opposite of the typical weave structure, hence the name "Reverse Dutch Weave Wire Mesh".
The thinner warps form a delicate filter layer, while the thicker wefts provide strong support and maintain circulation. This allows Reverse Dutch Weave Wire Mesh to improve filtration efficiency, extend service life, increase pressure resistance and anti-clogging ability, making it a continuous and demanding filtration product.
Specification
| Product Name: |
Woven Wire Mesh, Wire Cloth |
| Stainless Steel Grade: |
304, 304L, 316, 316L, 310s, 904L, 430, etc
|
| Special Material Options: |
Inconel, Monel, Nickel, Titanium, etc |
| Wire Diameter Range: |
0.02 - 6.30mm |
| Hole Size Range: |
1 - 3500mesh |
| Weave Types: |
Plain Weave, Twill Weave, Dutch or 'Hollander' Weave, Plain Dutch Weave Twill Dutch Weave, Reverse Dutch Weave, Multiplex Weave |
| Mesh Width: |
Standard less than 2000 mm |
| Mesh Length: |
30m rolls or cut to length, minimum 2m |
| Mesh Type: |
Rolls and sheets are available |
| Reverse Dutch Weave Wire Mesh & Screen / Cloth Specification |
| Mesh Range |
Wire Diameter(mm) |
Materials |
| 75 × 15 |
0.45 × 0.50 |
SS 304, 316 etc |
| 120 × 15 |
0.35 × 0.50 |
SS 304, 316 etc |
| 132 × 17 |
0.32 × 0.45 |
SS 304, 316 etc |
| 150 × 18 |
0.30 × 0.45 |
SS 304, 316 etc |
| 152 × 24 |
0.28 × 0.40 |
SS 304, 316 etc |
| 160 × 18 |
0.27 × 0.45 |
SS 304, 316 etc |
| 180 × 18 |
0.26 × 0.45 |
SS 304, 316 etc |
| 200 × 40 |
0.17 × 0.27 |
SS 304, 316 etc |
| 260 × 40 |
0.15 × 0.27 |
SS 304, 316 etc |
| 300 × 40 |
0.14 × 0.25 |
SS 304, 316 etc |
What is mesh / mesh count and micron size? how to check it?
Mesh Count and Micron Size are some of the important terms in the wire mesh industry.
The Mesh count is calculated by the number of the holes in an inch of mesh, so the smaller is the woven holes the bigger is the number of holes.The Micron Size refers to the size of the holes measured in microns. (The term micron is actually a commonly used shorthand for micrometer. )
In order to make it easier for people to understand the number of the holes of the wire mesh, these two specifications are usually used together. This is the key component of specifying the wire mesh. The Mesh Count determines the filtering performance and function of the wire mesh.
More intuitive expression:
Mesh Count = number of mesh hole. (larger the mesh count, the smaller the mesh hole)
Micron Size = size of mesh hole. (larger the micron size, larger the mesh hole)
Product Applications
Stainless Steel Woven Wire Mesh has excellent acid resistance, alkali resistance, heat resistance and corrosion resistance. Stainless steel weave screen is used in chemical industry, petroleum, aerospace, sewage system, medicine, automobile, industrial field, etc. Stainless steel woven wire mesh has become a widely used material.
The hygiene standards and chemical resistance of Stainless Steel Woven Screen are crucial, so it plays an important role in the screening and filtration of solids, liquids and gases in various industrial fields.
Packing

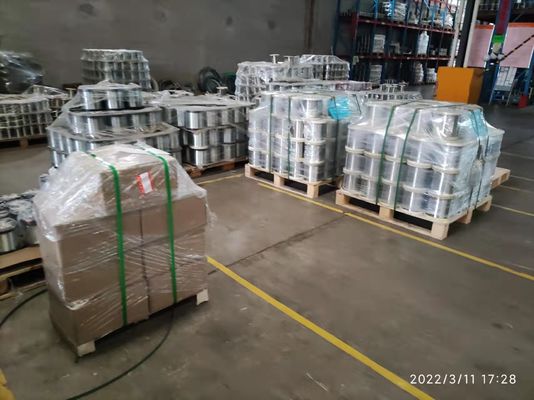

Below pictures is for our existed clients, stainless steel weave wire mesh help them solve a lot of issues in industry of filtration, sieve, chemical, industrial, oil etc.
We can cut any size of width according to clients’ request, making stainless steel screen mesh conveniently to use for clients. Before loading / delivery products, we will package stainless steel screen mesh by kraft paper, and then package into the wooden case. In order to Protect stainless steel from damage.
woven bag + safety belt + pvc film + wooden case
