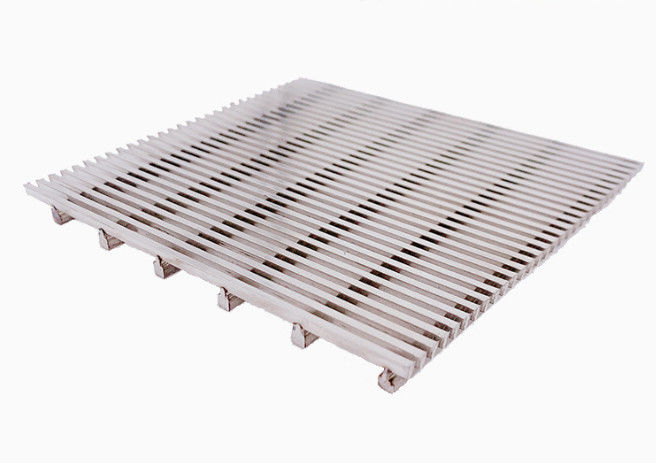

304 Stainless Steel Wedge Wire Screen for Liquid and Air Filtration

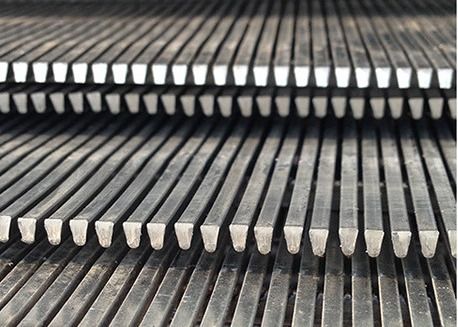

Wedge wire screens are manufactured by resistance welding V-shaped wire on support rods. Our wedge wire screen begins with the highest quality raw wire then is made into screen that is cut, shaped, fabricated and cleaned.

Wedge wire can be ordered as raw screen material or fabricated to a finished product to suit your application requirements. The pin point control over the specifications of the slot is what allows Screen to provide its customers with highly accurate flow distribution and effective media, debris and sediment filtration. Support Rods running perpendicular to the wrap wire strengthen and maintain the proper design configuration of the screen allowing it to handle intense pressure demands.

Our Wedge Wire Screen is designed to control various processing conditions including volumetric flow rate, minimum dimensional media retention, minimum open area and fluid pressure capabilities. Screen is able to professionally work a large variety of stainless steels and alloys into both standard or customized screen applications and accessory products.

Screen diameters range from 0.750" to 38" and up in fabricated sections. Your specific tolerance and size requirements will be adhered to and will meet the required industry standards.

Wedge wire screen material: Stainless steel 304, 316, 316L etc.

Wedge wire screen mainly production process: wedge wire profiling and welding, cutting and other fitting welding, surface treatment, certification, package.

Wedge wire screen type: Square shape, rectangle shape, round shape, with hole, with frame, etc. Wedge wire screen panels can be divided to different parts, too.

• Carbon Retention
• Catalyst Retention
• Center Pipes
• Collectors
• De-Watering
• Distributors
• Filter Elements
• Filter Leaf Chambers
• Filter Support Cores
• Flow Distribution
• Intake Screens
• Outlet Baskets
• Reactor Screens
• Resin Traps
• Trap Filters
• Underdrains

• Extended lifetime
• Slot during abrasive operation on the screen surface does not change
• Capability to withstand heavy loads
• High open area
• Less prone to clogging
• Perfectly smooth and flat surface
• High precision of execution
• Increased capacity and more precise separation
• Self-cleaning effect
• Low pressure loss
• Increased efficiency
• Permanence of exploited resources
• Lower capital cost and maintenance

• Plywood case + safety belts + pvc films
• Carbon steel pallet + safety belts + pvc films

• By air: 2-3 days
• By sea: 35 days around
• By express: 3-7 days
