High Adhesion Building Panels Expanded Rib Lath For Formwork System
Production description

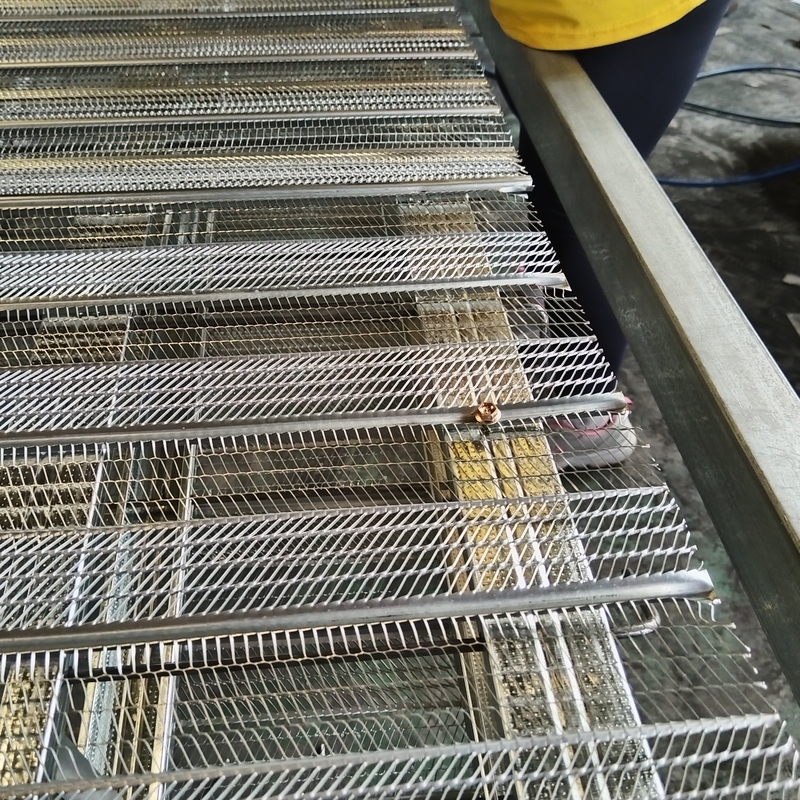

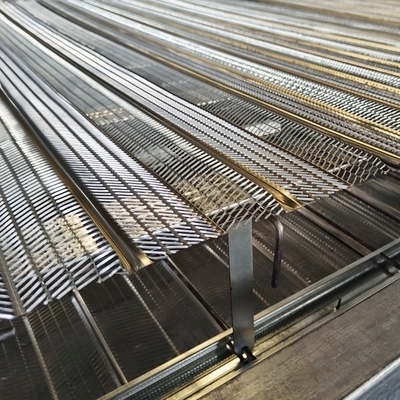

Coffor is a lightweight, structural stay-in-place formwork system used to build reinforced concrete walls. It is composed of two filtering grids made of rib lath and reinforced by C-profiles. The grids are attached to each other with articulated rebar connectors.
Once Coffor is secured to the ground, concrete is poured inside. The excess water eliminates itself through the grids while the fluid concrete becomes semi-solid. The elimination of the excess water decreases pressure against the grids. Coffor remains inside the structure and acts as reinforcement.
Coffor constructions can be completed simply, rapidly and cost effectively with non-qualified labor.
Product specifications
| Name |
Galvanized Rib Lath Cement Pouring Formwork Structure |
| Material |
Galvanized steel |
| Size |
1.1m*3m or customized |
| Weight |
11kg/sqm |
| Rib lath |
0.4mm thickness |
| C-profiles |
0.6mm thickness |
| Connectors |
1.5mm thickness, 20*19mm |
| Rebar |
5mm diameter, 700N/mm² traction strength |
| Feature |
Long lasting, enhance strength, light weight, save time |
| MOQ |
1pcs |
Product advantage
1.Excellent Bond with Concrete
The mesh and rib structure allows concrete to pass through and interlock, resulting in strong mechanical bonding between the concrete and the lath.Reduces risk of surface delamination or poor adhesion.
2.Lightweight and Easy to Handle
Much lighter than traditional formwork panels like plywood or steel plates.Easier to cut, shape, and install, especially in complex or curved structures.
3.No Need for Formwork Removal
Acts as permanent formwork—it stays in place after the concrete sets.
Saves labor and time because there's no need for stripping or dismantling.
4.Cost-Efficient
Reduces the need for traditional formwork materials and labor.
Minimizes wastage and handling costs.
Product application
Our formwork can be used to build all types of concrete constructions including:
Family homes and residential buildings
Commercial buildings and hospitals
Schools and warehouses
Tanks and swimming pools
Tunnels and drainage canals
Pile caps and manure pits
Silos and waste water treatment plants
Crawl spaces
About us
Founded in 2000, our workshop started as a 10-person team under the leadership of Mr. CUI (Our General Manager). By 2010, we expanded our workshops to 5000 sqm with complete departments including Production, Sales, After-sales, Technology, Research and Development, Procurement, and Design.
Today, Anping Velp Wire Mesh Products Co., Ltd has developed an enviable reputation for research, development, and as the premier option for expanded metal, perforated metal mesh, safety walkway grating, stainless steel 304/316 weave mesh, and building stucco mesh products in China.
