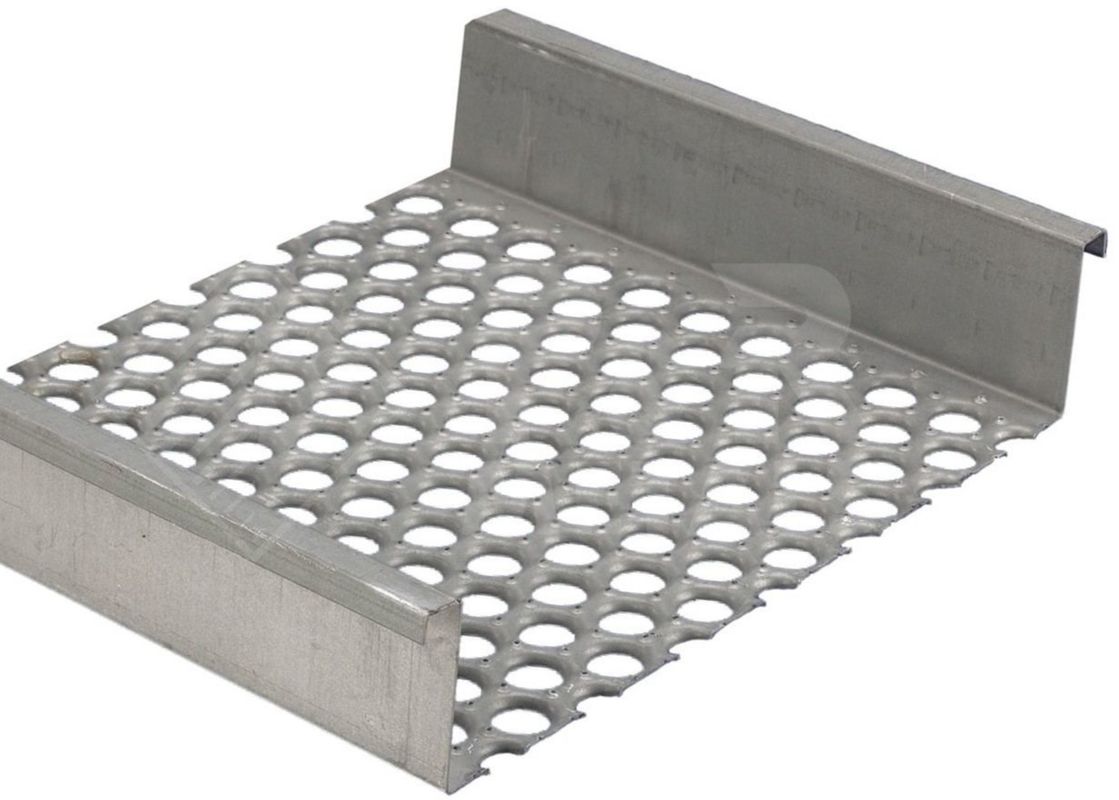

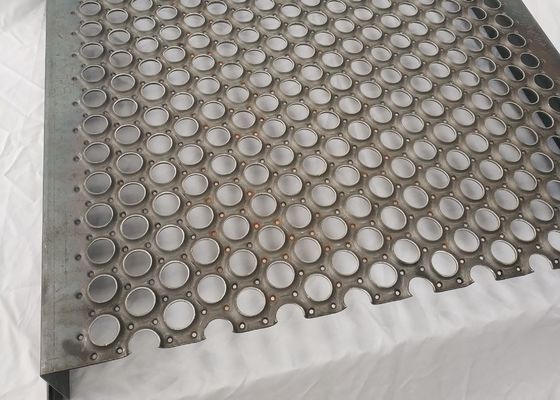

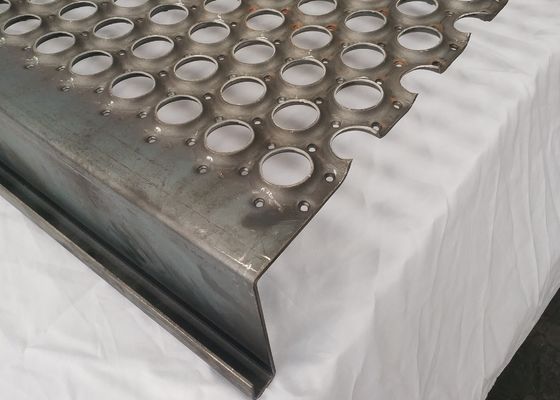

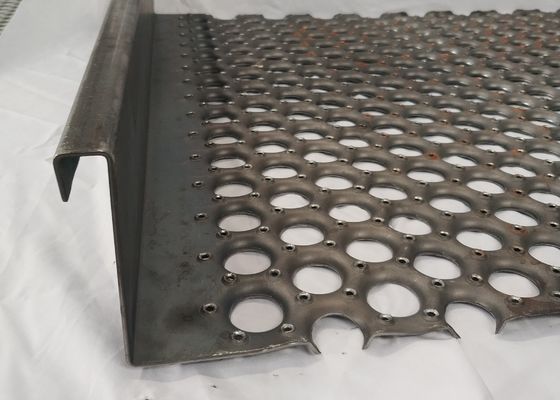

Hot Dip Galvanized Grip Strut Safety Grating Walkway Channels 5" Depth

Hot Dip Galvanized Heavy Duty Safety Grating Grip Strut Walkway Channels feature an open diamond pattern that provides a safe walking surface with excellent slip resistance in all directions. The heavy-duty construction allows for larger unsupported spans.

• Hole opening type: Diamond and Perf-O
• Available thickness: 12 gauge, 14 gauge
• Depth options: 4-1/2", 5"
• Materials: Carbon steel, Galvanized, Aluminum alloy
• Serrated surface for enhanced traction
• Standard width: 24"

The Grip Strut 10 Diamond Walkway is ideal for conveyor walkways or inclined surfaces, offering ease of installation, slip-resistant surface, and protective galvanized coatings. Available in lengths up to 24" in 14 gauge thick carbon steel.

Grip Strut walkway products feature a maintenance-free, open design that allows quick drainage of fluids, chips, grease, and mud. The structural design provides high load capacity and long life. Walkway grating channels ship complete and ready to install.

• Bridge decks
• Catwalks
• Decking
• Flooring
• Walkways
• Conveyors
• Ventilation
• Overpasses

• High strength-to-weight ratio due to lightweight design
• Slip resistance in all weather conditions
• Large debossed holes provide maximum debris drainage
• Panel width allows 50% free air flow
• Single-piece metal construction
• Low maintenance and economical

Surface: Non-slip perforated safety grating surfaces are ideal for locations where mud, ice, snow, oil, and detergents create hazardous conditions.

Extended Life: Sturdy construction provides heavy load capacity with minimal deflection and rugged durability.

Economical: Features low total installed cost with rust-resistant materials and finishes.

Versatile: Combines safety and durability with ease of fabrication and versatility.
