Lightweight Concrete Reinforcement Building Panels Formwork System
Production description

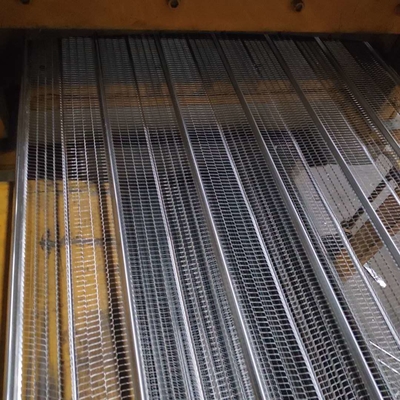

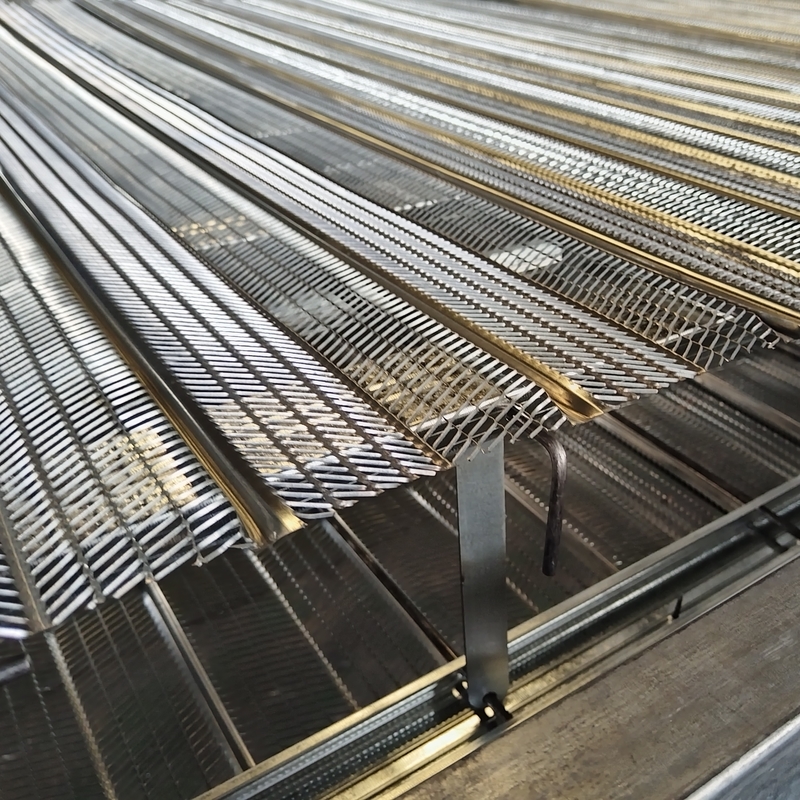

Galvanized rib lath is is a re-enforcing mesh with rigid ribs running along the length of the sheet. It is used as a key for plaster and render applications although it differs from the normal mesh because of the ribs it can accommodate a deeper two coat render application. It can also be used for partition walls and ceilings. Can generally fixed through the rib with a nail or through the sheet with a staple or tying wire.
Rib lath is used in applications related to structural work, concreting, projecting insulation, or metal/wooden frame coating.
Rib lath ensures flatness, rigidity, good adhesion and is suitable for major construction work such as reinforcement , formwork for foundations , slabs , walls, seals and other uses.
Product specifications
| Name |
Galvanized Rib Lath Cement Pouring Formwork Structure |
| Material |
Galvanized steel |
| Size |
1.1m*3m or customized |
| Weight |
11kg/sqm |
| Rib lath |
0.4mm thickness |
| C-profiles |
0.6mm thickness |
| Connectors |
1.5mm thickness, 20*19mm |
| Rebar |
5mm diameter, 700N/mm² traction strength |
| Feature |
Long lasting, enhance strength, light weight, save time |
| MOQ |
1pcs |
Product advantage
1.Mechanical performance is good, the lateral pressure is small
2.Pouring process is easy seen .
3.Light weight, easy to transport and install
4.Optimization of process, increase the shear interface
5.Easy to wear and continuous banding steel
6.To adapt to the segmented pouring concrete, the construction of civilization
7.The socket and cutting easy operation
Product application
High and low-rise residential light compartments, firewalls;
Construct a partition, a compartment;
the floor of the building, the partition wall;
Permanent interior and exterior walls and walls of permanent buildings;
the basement moisture-proof duplex wall.
Work seams with structural combination;
Tunnels, sewers, and wall works;
cutting foundation, dock, retaining wall;
flat and arched floor;
Nuclear power plant, storage tank and other arc-shaped structures;
Special projects such as landscaping sculptures;
Slope protection, earth embankment and other projects.
About us
Founded in 2000, our workshop started as a 10-person team under the leadership of Mr. CUI (Our General Manager). By 2010, we expanded our workshops to 5000 sqm with complete departments including Production, Sales, After-sales, Technology, Research and Development, Procurement, and Design.
Today, Anping Velp Wire Mesh Products Co., Ltd has developed an enviable reputation for research, development, and as the premier option for expanded metal, perforated metal mesh, safety walkway grating, stainless steel 304/316 weave mesh, and building stucco mesh products in China.
