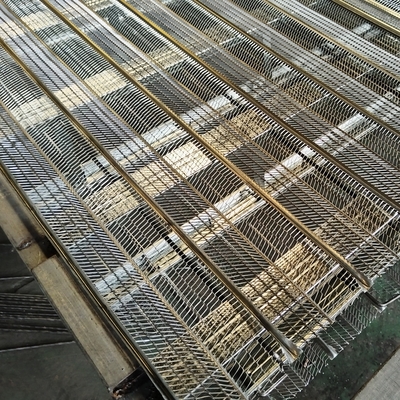

Permanent Precast Concrete Formwork Support Hy Rib Mesh Panel

---Product introduction

   Hy-Rib is a high-ribbed, sacrificial formwork solution engineered for superior performance in large-scale concrete construction. Made from galvanised expanded metal mesh, Hy-Rib ensures durability and structural reliability while simplifying the construction process. Its unique ribbed design promotes excellent aggregate interlock, delivering enhanced joint strength and long-lasting concrete durability.

   This versatile formwork system is suitable for both horizontal and vertical placements and eliminates the need for extensive surface preparation, such as scabbling. Its high visibility during concrete pours enables precise visual monitoring, reducing the risk of voids and honeycombing. Hy-Rib optimises labour efficiency, minimises formwork pressure, and accelerates the pouring process, providing economic advantages to construction projects.

---Product advantages

1. The formwork is very lightweight,about 11kg/sqm, It can easily be carried by 1-2 workers.

2. The formwork is cost effective compared to other construction systems.

3.There is no limitation of wall height or number of floors.

4.It is primarily used for building walals in all types of construction.

5.It remains in the construction to reinforce it after the concrete is poured.

After the panel placed,concrete is poured inside,excess water is eliminated by gravity through the grids.The fluid concrete becomes semi solid decreasing pressure against the grids.

6. The panel is 2-3 times faster than other traditional construction systems. Every step of the construction process is simplified.

Cement Pouring formwork structure COMPOSITION

The two sides weighs 11 kg/m2. It is composed of:

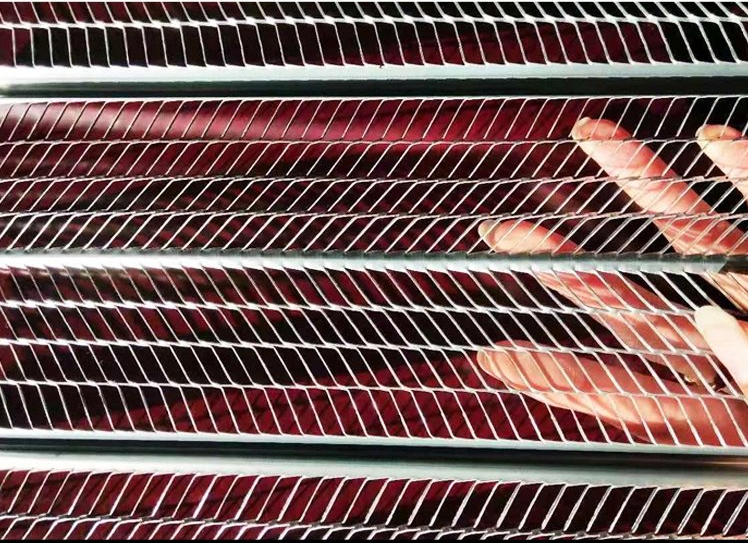

Rib Lath

Expanded metal with rib produced from commercial quality cold rolled and hot galvanized steel in accordance with ASTM C 847.

0.5 mm thickness.

C-Profiles

Produced from commercial quality cold rolled and hot galvanized steel in accordance with ASTM C 847.

0.6 mm thickness.

Connectors

Made from steel in coil grade B DIN 17 223 or equivalent.

20 mm width.

1.5mm thickness.

Longitudinal Rebar

Made from Fe 400 (French Norm) or equivalent.

500 N/mm2 elasticity limit.

700 N/mm2 traction strength.

5 mm diameter (minimum).
