Rib Lath Concrete Formwork Construction For Building Material Mesh
Production description

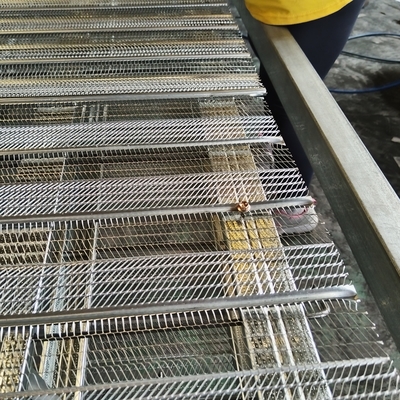

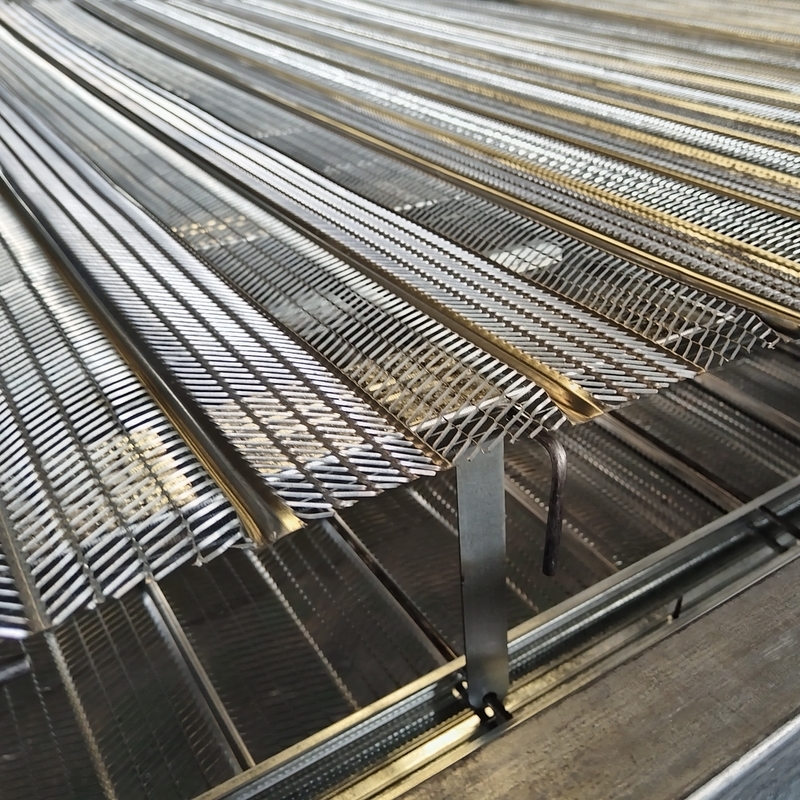

The formwork system comprises of two filtering grids made of rib mesh reinforced by vertical stiffeners called ‘C’ channel. The grids are connected by rebar which act as horizontal stiffeners and connector which act as a shear link. The grids on both faces act as sacrificial formwork in which concrete is poured in-situ. The vertical steel channels and horizontal steel bars act as steel reinforcement for load bearing wall. The connectors help to fold the formwork for easy transportation. The panels are prefabricated which when arrive on the construction site are installed and ready for concreting.
Standard panels are available in 90cm and 110cm wide so as to adapt to the geometry. When the wall length does not exactly correspond to these dimensions or to the one of their compositions, these are cut to size on site with a rotary cutter.
Product specifications
| Name |
Galvanized Rib Lath Cement Pouring Formwork Structure |
| Material |
Galvanized steel |
| Size |
1.1m*3m or customized |
| Weight |
11kg/sqm |
| Rib lath |
0.4mm thickness |
| C-profiles |
0.6mm thickness |
| Connectors |
1.5mm thickness, 20*19mm |
| Rebar |
5mm diameter, 700N/mm² traction strength |
| Feature |
Long lasting, enhance strength, light weight, save time |
| MOQ |
1pcs |
Product advantage
Shortening the Time (of construction)
Cost Efficiency
Minimizing the Space to install
Excellence of Finished-work (plastering and tiling)
Quality Improvement of Concrete
Reduction of Wasted materials
Improving the site safety
Product application
Metal rib lath is popularly used in the following constructions:
Concrete doors, ceilings, and roofs;
Sidings, partitions, and ceilings to eliminate channels;
Plaster and cementare used in the construction of buildings;
Firewall construction;

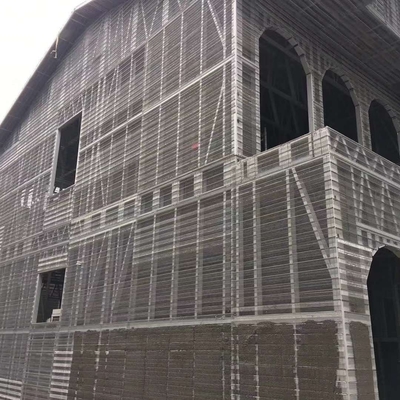

Permanent building external walls;
Landscape sculpture, and other special engineering;
Slope protection, earth embankment engineering, etc.
