Product Details:
|
| Name: | 100 / 200 / 300 Microns Plain Twill Woven Screen Stainless Steel Square Wire Netting Mesh | Material: | 302 304 304L 316 316L Etc |
|---|---|---|---|
| Specification: | 4 Mesh,6mesh 8mesh,100 Mesh ,400 Mesh | Roll Size: | 1*15m 1*30m 0.914*30m 1.5*30m |
| Package: | Kraft,plastic Cloth,wooden Pallets | Usage: | Screening,filter,mud Mesh,chemical Fiber,screen Filters |
| Feature: | Resistance Corrosion,filter, Acid ,alkali,long Service Life | Weave Way: | Plain Weave, Twill Weave, Plain Dutch Weave,twill Dutch Weave |
| Highlight: | Velp stainless steel wire cloth mesh,OEM 300 micron stainless steel mesh,300 Microns Stainless Steel Wire Cloth Mesh |
||

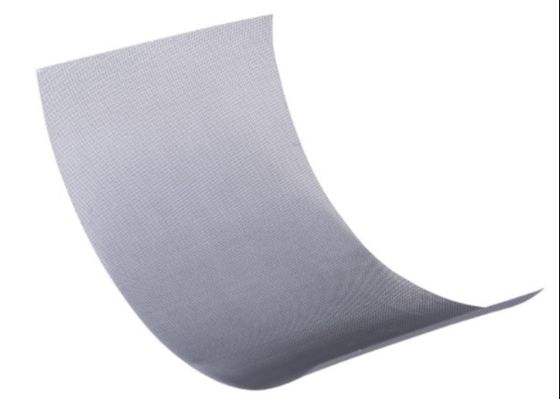

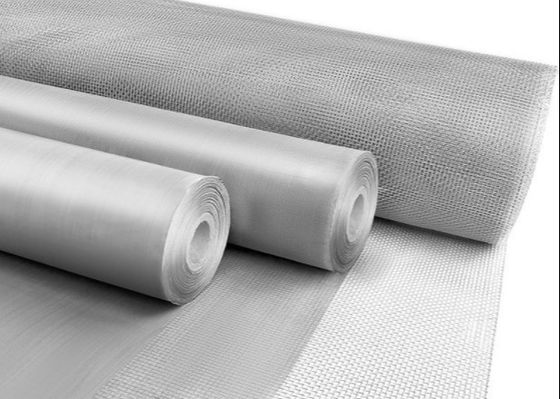

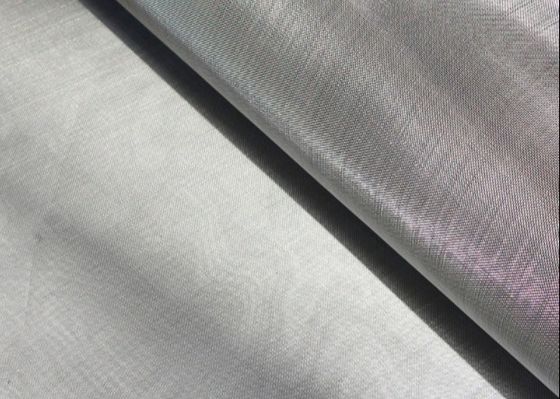

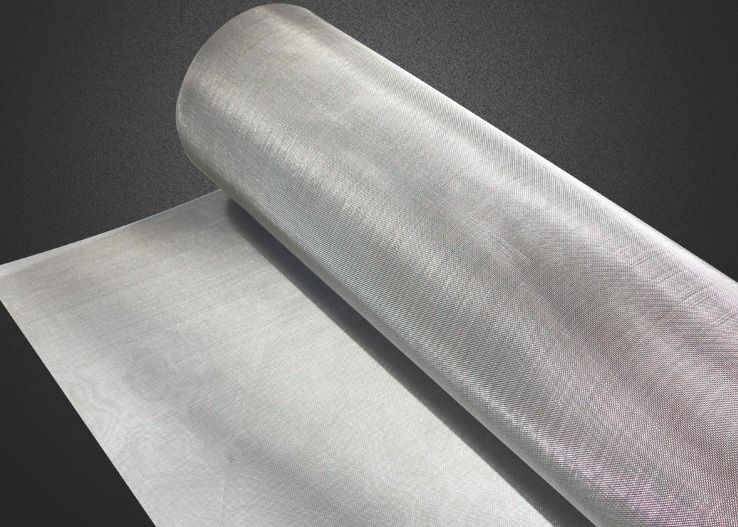

100 200 300 Microns Plain Twill Woven Screen Square Wire netting Mesh
| Material | SS wire 304 316 304L 316L etc |
| Wire diameter | 0.018--2.0mm |
| Mesh count | 1--2800 mesh |
| Woven style | Plain weave, twill weave,satin weave |
| Packing | Inner kraft,outside plastic cloth,put into wooden pallet or case |
| Application | Used for screening and filtering,as mud mesh in petroleum industry,screen filter. |
Stainless steel square wire netting mesh benefits including
- Widest range filtration,from over 6 inch aperture down to 1 micron nominal.
- High open area/flow rate
- Closely controlled,accurate apertures
- Smooth surface-screening surface has no sharp edges,burrs or acute angles.
- Very high temperature tolerance(variable according to metal selected)
- Usable under high pressure
- Flexible
- Ideal for forming rigid concave/convex shapes
- Special aperture requirements can be met without high tooling costs,
- High durability
- Self supporting
- Suitable as upper for less rigid media
- Stable under tension
- The weaving process uses no punching,piercing or stretching operations that create stress-induced weaknesses
- Corrosion,abrasion and heat resistance
- Highly aesthetic appeal for architectural applications
- Hygienic characteristics and clean ability are specifically suitable for the food and pharmaceutical industrial.
Stainless steel square wire netting mesh weave style
| Stainless steel wire mesh plain weave | |||
| Mesh | Wire diameter(mm) | Opening(mm) | Material(AISI) |
| 7*7 | 1.0 | 2.63 | 304 or 316 |
| 10*10 | 0.6 | 1.94 | 304 or 316 |
| 12*12 | 0.5 | 1.62 | 304 or 316 |
| 16*16 | 0.4 | 1.19 | 304 or 316 |
| 18*18 | 0.35 | 1.06 | 304 or 316 |
| 20*20 | 0.35 | 0.87 | 304 or 316 |
| 24*24 | 0.26 | 0.8 | 304 or 316 |
| 30*30 | 0.3 | 0.55 | 304 or 316 |
| 35*35 | 0.17 | 0.56 | 304 or 316 |
| 40*40 | 0.23 | 0.4 | 304 or 316 |
| 50*50 | 0.2 | 0.31 | 304 or 316 |
| 60*60 | 0.15 | 0.27 | 304 or 316 |
| 70*70 | 0.12 | 0.24 | 304 or 316 |
| 80*80 | 0.13 | 0.19 | 304 or 316 |
| Stainless steel wire mesh and cloth twill weave | |||
| Mesh | Wire diameter(mm) | Opening(mm) | Material(AISI) |
| 250*250 | 0.04 | 0.063 | 316 |
| 300*300 | 0.04 | 0.044 | 316 |
| 325*325 | 0.035 | 0.043 | 316L |
| 350*350 | 0.03 | 0.033 | 316L |
| 400*400 | 0.03 | 0.033 | 316L |
| 450*450 | 0.028 | 0.028 | 316L |
| 500*500 | 0.025 | 0.026 | 316L |
| Stainless steel wire mesh and cloth dutch weave | ||
| Mesh | Wire diameter(mm) | Material(AISI) |
| 12*64 | 0.58*0.4 | 304 or 316 |
| 24*110 | 0.36*0.25 | 304 or 316 |
| 14*88 | 0.5*0.33 | 304 or 316 |
| 30*150 | 0.23*0.18 | 304 or 316 |
| 40*200 | 0.18*0.13 | 304 or 316 |
| 50*250 | 0.14*0.11 | 304 or 316 |
| 80*700 | 0.1*0.08 | 304 or 316 |
| 165*800 | 0.071*0.04 | 304 or 316 |
| 165*1400 | 0.06*0.04 | 304 or 316 |
| 200*1800 | 0.05*0.032 | 304 or 316 |
| 825*2300 | 0.035*0.025 | 316 L |
| 400*2800 | 0.03*0.02 | 316 L |
Stainless steel square wire netting mesh application
There some of the applications of wire mesh we listed,In fact,woven wire mesh has a seemingly infinite range of applications.Because it has many irreplaceable features and advantages,there can be few industries where wire mesh does not have a part to play.
