Product Details:
|
| Name: | Ultra Fine 1 Micron Sintered Metal Filter By Woven Wire Mesh | Material: | Stainless Steel 304 310 904L 316L |
|---|---|---|---|
| Filter Rating: | 1--200 Micron | Products: | Material Wire Cloth,sintered Filters,metal Tubes,baskets,discs |
| Usages: | Petroleum,chemical Industry,pharmacy,foodstuff | Pore Size: | 0.5um 2um 5um 10um 15um 20um 40um 60um 90um |
| Feature: | Anti Corrosion,temperature,wear,vibration, | After Services: | Video Technical Support,online Support, |
| High Light: | 1 Micron Sintered Metal Filter,Sintered Porous Stainless Steel Filters 0.5um,2um Porous Sintered Metal Filter |
||
Ultra fine 1 micron sintered metal filter by woven wire mesh
Sintered metal filter by woven wire mesh basic introduction

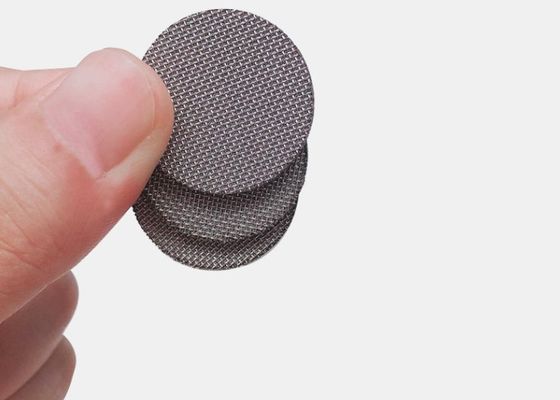

Filter disc is made of stainless steel wire mesh, galvanized wire mesh, brass wire mesh and others.We can produce the single layer or multi layer disc which is connected by welding or not.Besides.the filter disc edge can be naked edge or cover edge.According to the usage ,they can be produced into different shaped such as round shape,oval shape,rectangular ,toroidal shape,square, etc.
Sintered metal filter by woven wire mesh specifications
| Product name | Ultra fine 1 micron sintered metal filter by woven wire mesh |
| Type |
Signle layer without edges Single layer with edged Multi layer filter disc with edge Dutch weave filter disc Spot welded with closed selvaged type Spot welded without closed selvaged type Sintered mesh filter disc Black wire cloth disc |
| Material | 201 304 304L 316 316L430 etc |
| Weave type | Plain weave,twilled weave,plain dutch weave,twilled dutch weave,reverse dutch weave |
| Wire diameter | 0.025mm--2.5mm |
| Thickness | 1.0mm---5.0mm |
| Filter rate | 1--200micron |
| Layers | Single layer or multi layers |
| Shapes | Rectangle,square,round,oval,circular,cap,waist |
| Usages |
1.Solid/gas separation,muffler,silencer,air purification 2.Filtering oil dedusting,isolation,dust,dustproof 3.Gas-oil dissociation,gas liquid separation 4.Moistureproof,heat insulation 5.Uniform gas,well-distributed,diffuse gas or oil or heat 6.Pharmaceutical,Chemical filber 7.Filtration for high temperature environment 8.High pressure reverse wash filtering 9.Acid and alkali corrosion environment filtering |
Sintered metal filter by woven wire mesh characteristic
The material used to produce these filters is 316L stainless steel.They are made by uniaxial compaction of powder in a rigid tool with the negative shape of the part,and then sintered.The pore size is adjusted by changing the compaction pressure and the particle size of the powder.
1) High strength: After the five-layer wire mesh is sintered, it has extremely high mechanical strength and compressive strength;
2) High precision: uniform surface filtration performance can be exerted for the filtration particle size of 1-300um;
3) Heat resistance: can be used for continuous filtration from -200 degrees to up to 650 degrees;
4) Cleanability: countercurrent cleaning surface filter structure can be used, and cleaning is simple.
5) It has good permeability, high strength, no need to add support structure, no material falling off, strong corrosion resistance, easy to clean, and not easy to damage. Standard material: SUS316L.
Sintered metal filter by woven wire mesh main purpose
1) Used as a dispersive cooling material in high temperature environment;
2) For gas distribution, liquidized bed orifice material;
3) Used for high-precision, high-reliability and high-temperature filter materials;
4) Used for high pressure backwash oil filter
5) Used for filtration of polyester, oil, food and beverage, chemical and chemical fiber products, and also for filtration of water treatment and gas.
