Product Details:
|
| Product Name: | Mild Steel Heavy Duty Raised Diamond Hole Expanded Metal Mesh | Material: | Mild Steel |
|---|---|---|---|
| Color: | Non | Technique: | Perforated |
| Type: | Expanded Mesh | Wire Diameter: | Requirement 3-5mm |
| Surface Treatment: | Galvanized, Paniting, | Usage: | Grating, |
| Packing: | Iron Pallet | Sample: | Free (snall Size) |
| High Light: | Mild Steel Expanded Metal Mesh,Diamond Hole Metal Expanded Mesh,Expanded Metal Mesh Heavy Duty |
||
For getting more exactly price, please tell me more details like:
material, sheet thickness, sheet size, hole size, strand width, surface treatment and quantity.
If you don't have any clear design, we can help with!!!
Introduction

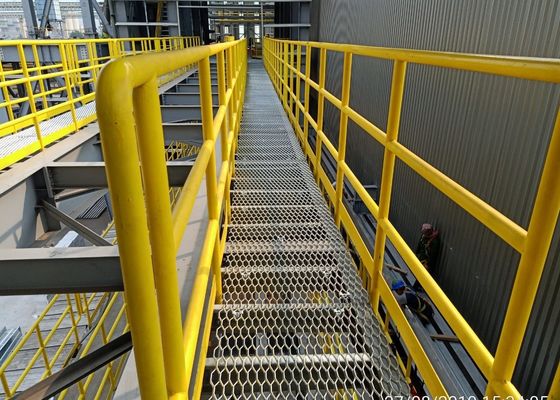

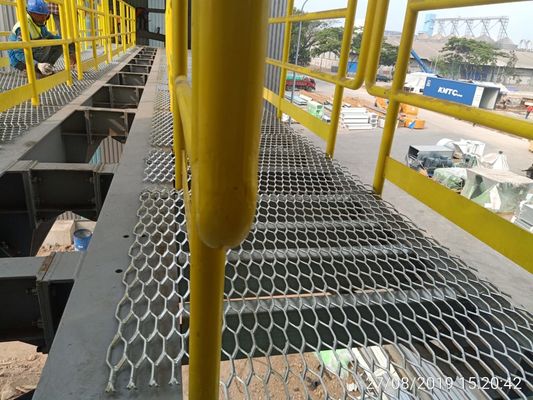

Expanded metal mesh is the most practical and economical way to assure strength, safety, and anon-skid surface. Expanded metal grating is ideal for use on plant runways, working platforms, and catwalks, as it is easily cut into irregular shapes and can be installed quickly by welding or bolting.
Heavy duty expanded metal mesh sheet is main used as expanded metal grating.
According to the requirements of different customers, we have different product catagories.
Specification
| Material |
Stainless steel, Carbon steel, Galvanized plate, Aluminum, Brass, Copper. |
| Hole Shape |
Diamond, scale hole, gothic hole customized design. |
| Thickness | 0.5-50mm |
| Surface treatment |
PVC coated , Powder coating, Anodized oxidation, paint, galvanized polishing, Fluorocarbon spraying |
| Features |
Attractive appearance, Formed easily, Portable, High strength |
| Package | Moist-proof paper/carton/iron or wooden pallets |
| Delivery time | 3-14days |
| Size |
1220*2440mm 1500*6000mm 1000*2000m 1500*3000mm customized |
| Equipment | CNC Punching Machine |
Produce Process:
Expanded metal mesh is also called stretch mesh. It is made of the original plate which adopt the latest technology to cut and expand.
It is stronger, lighter in weight and more rigid than the original base metal.
Diamond-shaped holes are the most popular. And other hole types include hexagonal, round holes, triangular, and fish scale holes.
Benefits:
1.Continuity--the mesh is formed from a single piece of metal
2.Environment friendly--no wasteful of material
3.High strength--higher strength to weight ration then metal sheet
4.Adherence--anti slip surface
5.Very good noise and fluid filtration--excludes & retains simultaneously
6.Good rigidity--premium reinforcement properties
7.Good conductivity--highly efficient conductor
8.Screening--practical and effective light filtration
9.Good resistance to corrosion
Application:
(1)Use for ceiling/curtain wall
Expanded metal ceilings have become an indispensable part of modern architecture. Unlike other ceiling systems, they do not appearto be one smooth surface but give you a more or less unobstructed view of the ceiling void, depending on your specifications.
(2)Use for decoration
A variety of steel mesh can meet your needs, we can customize the specifications you need for you.
(3)Use for fencing
The expanded heavy plate mesh is used for heavy mechanical pedal mesh, boiler, mines, locomotives and tonner steamship working platform, escalator, aisle.
(4)Use for stair
Many people think use expanded metal use for stair is beautiful and durable,if you need,we can according the requirement on you.
