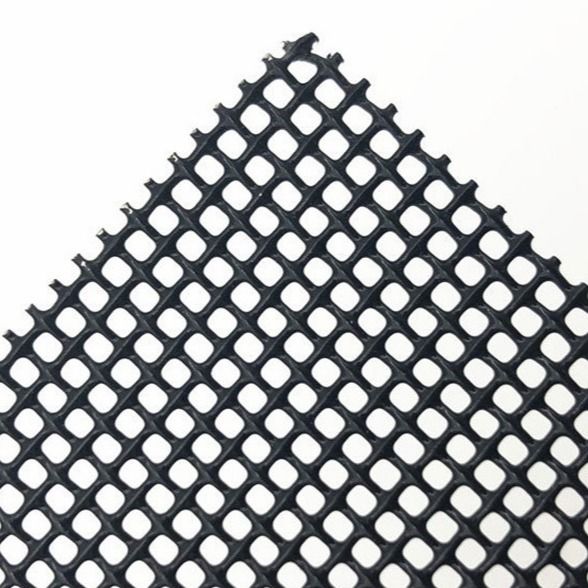

Product Details:
|
| Product Name: | Ss 304 Stainless Steel Wire Mesh Projector Screen Insect Nets Security Screen For Windows | Application: | Dust Proof Window Screen, Decorative Window Screen, Electric Window Screens |
|---|---|---|---|
| Material: | Stainless Steel 201 304 | Wire Diameter: | 0.21mm, 0.23mm, 0.25mm Etc |
| Advantage: | Anti-Theft, Mosquito-Proof | Technique: | Plain Weaving |
| Mesh: | 18*16, 18*14 | HS Code: | 7314140000 |
| High Light: | ss 304 steel mesh window screen,0.21mm steel mesh window screen,0.21mm stainless steel window screen roll |
||

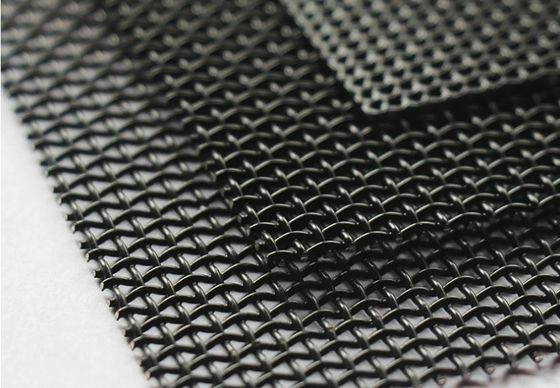

Woven wire mesh or woven wire cloth, is woven by machine. It is similar to the process of weaving clothing, but made of stainless steel wire. The mesh can be made through different weave styles. The purpose is to produce solid and reliable products to adapt to various complex application environments.High precision technology makes the production cost of woven wire mesh higher, but it also has a very wide range of uses.
Product Application:
The petroleum, chemical environmental protection, mining, aerospace, paper making, electronic, metallurgical, food and
pharmaceutical industries all utilize woven wire mesh. Main function is filtering,screeing and sieving.
|
Product Name
|
Woven Wire Mesh, Wire Cloth
|
|
Stainless Steel Grade
|
Stainless Steel 201,304,
|
|
Special Material Options
|
Inconel, Monel, Nickel, Titanium, etc
|
|
Wire Diameter Range
|
0.21mm,0.23mm,0.25mm |
|
Hole Size Range
|
1 - 3500mesh
|
|
Weave Types
|
Plain Weave
Twill Weave
Dutch or 'Hollander' Weave
Plain Dutch Weave
Twill Dutch Weave
Reverse Dutch Weave
Multiplex Weave
|
| Color |
natural color,black |
|
Mesh Width
|
80cm,90cm,100cm,120cm |
|
Mesh Length
|
30m,50m,100m |
|
Mesh Type
|
Rolls and sheets are available
|

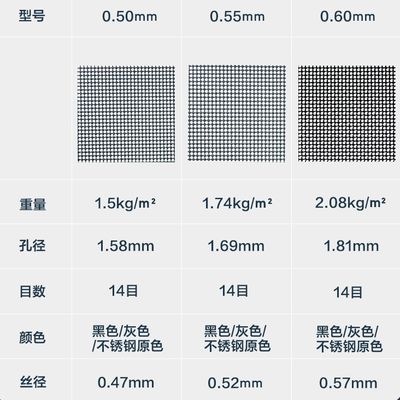

| Common Mesh Specifications ( Reference Data ) | |||||
| Mesh | Aperture ( mm ) | Mesh | Aperture ( mm ) | Mesh | Aperture ( mm ) |
| 2 | 13 | 18 | 1 | 70 | 0.22 |
| 3 | 6.5 | 20 | 0.9 | 80 | 0.18 |
| 4 | 5 | 24 | 0.8 | 90 | 0.16 |
| 5 | 4 | 30 | 0.6 | 100 | 0.154 |
| 6 | 3.2 | 35 | 0.5 | 120 | 0.125 |
| 8 | 2.5 | 40 | 0.45 | 150 | 0.1 |
| 10 | 2 | 45 | 0.4 | 180 | 0.09 |
| 12 | 1.6 | 50 | 0.355 | 200 | 0.075 |
| 14 | 1.43 | 55 | 0.315 | 220 | 0.07 |
| 16 | 1.25 | 60 | 0.3 | 250 | 0.063 |
Mesh, Mesh Count, And Micron Size:
Mesh Count and Micron Size are very important terms in the wire mesh industry.
The Mesh count is actually the number of holes in an inch length, so the smaller mesh count,the hole is bigger.The Micron Size actually means the hole size.Can be in miron or mm.
In order to make it easier for people to understand the number of the holes of the wire mesh, these two specifications are usually used together. This is the key component of specifying the wire mesh. The Mesh Count determines the filtering performance and function of the wire mesh.
Micron Size = size of mesh hole. (larger the micron size, larger the mesh hole)
More intuitive expression: Mesh Count = number of mesh hole. (larger the mesh count, the smaller the mesh hole).
1. 304 stainless steel
2. The aperture is uniform and the net surface is smooth
3. High strength and toughness
4. Complete specifications, support customization
5. Corrosion resistance and pressure resistance
6. Good filtering performance, durable use
Excellent corrosion resistant ability.
Lower thermal expansion coefficient.
High thermal conductivity.
Widely used in chemical.
Seawater desalination equipment.
Uniform screen thickness.
