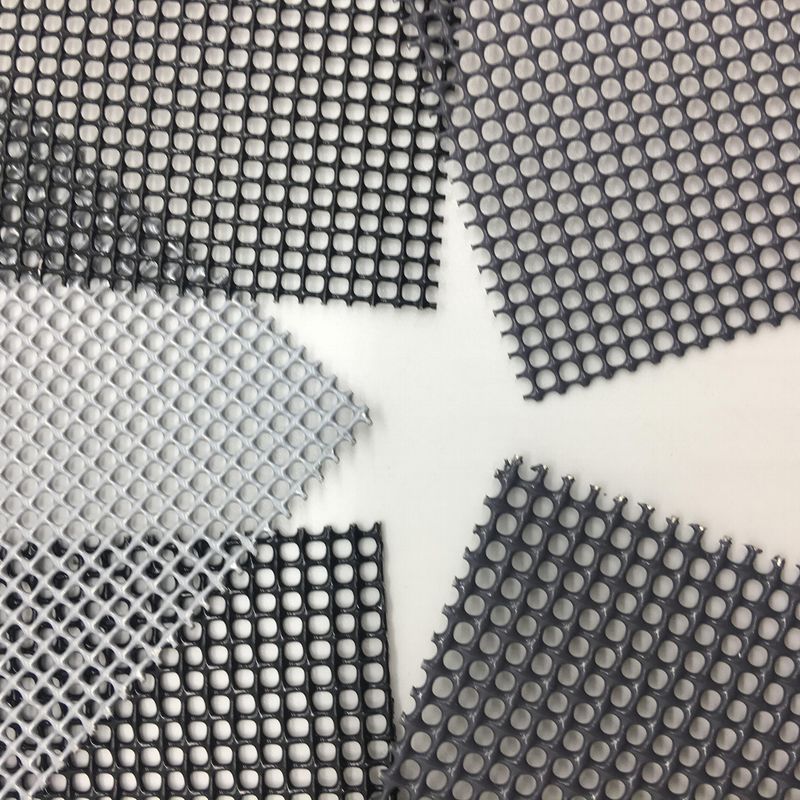

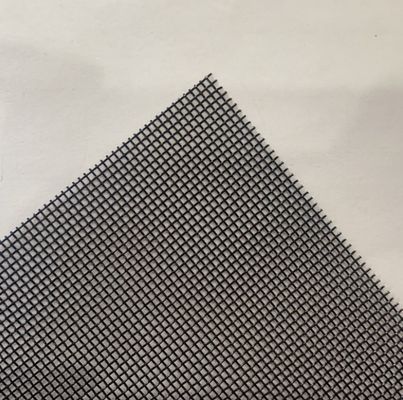

10 12 14 Mesh Steel Mesh Security Screen Plain Weave

10 12 14 Mesh Stainless Steel Security Window Screen Mosquito Net Wire Mesh

Stainless Steel Mesh Introduction

  Woven wire mesh or woven wire cloth, is woven by machine. It is similar to the process of weaving clothing, but made of stainless steel wire. The mesh can be made through different weave styles. The purpose is to produce solid and reliable products to adapt to various complex application environments.High precision technology makes the production cost of woven wire mesh higher, but it also has a very wide range of uses.

Product Application:

* Stainless steel security screen can resist the thieves and intruders, so it is used in the residences, hotels and other place for security.
* Due to the anti-mosquitoes and flies feature, it can be used in the windows, doors, porches and patios to prevent the harmful insects.
* Stainless steel security screen can resist the corrosion, rust and fire, it can be used in the harsh environments where is corrosive, dusty. It can also be used in the fire fighting accesses.
* Another importance feature of the stainless steel security screen is bullet-proof, so it can be used in military base, and other safety places.

Stainless Steel Woven Mesh Material

​

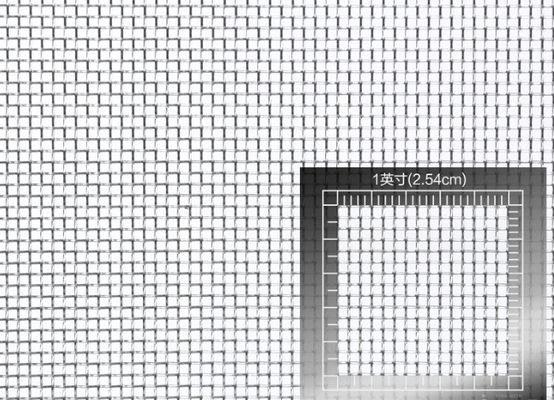

Mesh, Mesh Count, And Micron Size:

Mesh Count and Micron Size are very important terms in the wire mesh industry.

The Mesh count is actually the number of holes in an inch length, so the smaller mesh count,the hole is bigger.The Micron Size actually means the hole size.Can be in miron or mm.

In order to make it easier for people to understand the number of the holes of the wire mesh, these two specifications are usually used together. This is the key component of specifying the wire mesh. The Mesh Count determines the filtering performance and function of the wire mesh.

Micron Size = size of mesh hole. (larger the micron size, larger the mesh hole)

More intuitive expression: Mesh Count = number of mesh hole. (larger the mesh count, the smaller the mesh hole).

Stainless Steel Woven Mesh Advantages:

1. 304 stainless steel

2. The aperture is uniform and the net surface is smooth

3. High strength and toughness

4. Complete specifications, support customization

5. Corrosion resistance and pressure resistance

6. Good filtering performance, durable use

Stainless Steel Woven Mesh Features:

Strong resistance to impact, anti-theft, bulletproof, anti-mosquitoes, high temperature resistance, flame retardant, high strength, strong toughness;

The surface luster is bright and beautiful, can be better to increase air circulation rate and the light of the sun, with smooth surface, the number of mesh standard, latitude and longitude curve are consistent;

Its remarkable characterstic is as hard as iron hard, anti-theft, bulletproof, home office security first place;

304 and 316 woven wire mesh customized details:

The wire cloth is available in both 48” and 60” widths. We can provide both full rolls and/or cut pieces depending on your requirements. The vast majority of our customers request woven mesh from 304 or 316 stainless steel, but we are also able to supply type 430 and carbon steel in most cases. Use our wire mesh chart to find the opening best suited to your application. If you need to determine the size of an existing screen, we offer metal mesh counters. They are small enough to put in your pocket and extremely easy to use. Just unfold it and set it on a piece of wire mesh. The base is a 1-inch square opening and the top is a magnifying glass.

There are different units of measure marked on the interior of the base to assist you with identifying wire diameter, opening, and holes per inch.
