Ss 304 Steel Window Screen Door Protection Insect Proof

Ss 304 Steel Window Screen Door Protection Insect Proof
Ss 304 Steel Window Screen Door Protection Insect Proof Ss 304 Steel Window Screen Door Protection Insect Proof Ss 304 Steel Window Screen Door Protection Insect Proof

Large Image :  Ss 304 Steel Window Screen Door Protection Insect Proof

Product Details:
Place of Origin: China
Brand Name: VELP
Certification: SGS
Model Number: 26
Payment & Shipping Terms:
Minimum Order Quantity: 1 roll
Price: dollar 50-300 roll
Packaging Details: wooden case+waterproof paper
Delivery Time: 5-10 work days
Payment Terms: T/T, L/C, Western Union, MoneyGram
Supply Ability: 3000 rolls month

Ss 304 Steel Window Screen Door Protection Insect Proof

Product Name: Door Window Protection Insect Proof 304 Stainless Steel Woven Window Screen Net Wire Mesh Material: 304 Stainless Steel
Length: 100m 50m Advantage: Anti-Theft, Mosquito-Proof
Width: 100cm, 120cm HS Code: 7314140000
Technique: Plain Weave, Twill Weave Application: Door Window Protection Insect Proof
High Light:

ss 304 steel window screen


insect proof steel window screen


304 stainless steel security screens

Door Window Protection Insect Proof 304 Stainless Steel Woven Window Screen Net Wire Mesh


Stainless Steel Mesh Introduction

  Stainless steel insect mesh is made of the basic stainless alloy (Type 304). It is the most durable of the materials available for insect mesh and has excellent resistance to corrosion.Stainless steel insect mesh keeps out flies, wasps, bees, mosquitoes and other insects.


  Woven for optimization of 304 stainless steel material, is not easy to rust and corrosion resistance, oxidation resistance is strong, stable performance, stainless steel net uniform aperture high smoothness, surface level off is smooth, without burr, simple maintenance, strong tensile toughness, use cycle is long, high intensity, mesh accurate thickness, the same production with good reproducibility, source manufacturer, factory direct supply, quality guaranteed, Complete mesh specifications, support customization.


Product Application:


The petroleum, chemical environmental protection, mining, aerospace, paper making, electronic, metallurgical, food and

pharmaceutical industries all utilize woven wire mesh. Main function is filtering,screeing and sieving.

Stainless Steel Woven Mesh Material


Product Name
Woven Wire Mesh, Wire Cloth
Stainless Steel Grade
Stainless Steel 201,304,
Special Material Options
Inconel, Monel, Nickel, Titanium, etc
Wire Diameter Range


Hole Size Range
1 - 3500mesh
Weave Types
Plain Weave
Twill Weave
Dutch or 'Hollander' Weave
Plain Dutch Weave
Twill Dutch Weave
Reverse Dutch Weave
Multiplex Weave

natural color,black

Mesh Width


Mesh Length


Mesh Type
Rolls and sheets are available

Common Mesh Specifications ( Reference Data )
Mesh Aperture ( mm ) Mesh Aperture ( mm ) Mesh Aperture ( mm )
2 13 18 1 70 0.22
3 6.5 20 0.9 80 0.18
4 5 24 0.8 90 0.16
5 4 30 0.6 100 0.154
6 3.2 35 0.5 120 0.125
8 2.5 40 0.45 150 0.1
10 2 45 0.4 180 0.09
12 1.6 50 0.355 200 0.075
14 1.43 55 0.315 220 0.07
16 1.25 60 0.3 250 0.063


Mesh, Mesh Count, And Micron Size:


Mesh Count and Micron Size are very important terms in the wire mesh industry.


The Mesh count is actually the number of holes in an inch length, so the smaller mesh count,the hole is bigger.The Micron Size actually means the hole size.Can be in miron or mm.


In order to make it easier for people to understand the number of the holes of the wire mesh, these two specifications are usually used together. This is the key component of specifying the wire mesh. The Mesh Count determines the filtering performance and function of the wire mesh.

Micron Size = size of mesh hole. (larger the micron size, larger the mesh hole)


More intuitive expression: Mesh Count = number of mesh hole. (larger the mesh count, the smaller the mesh hole).


Stainless Steel Wire Mesh & Cloth


The wire cloth is available in both 48” and 60” widths. We can provide both full rolls and/or cut pieces depending on your requirements. The vast majority of our customers request woven mesh from 304 or 316 stainless steel, but we are also able to supply type 430 and carbon steel in most cases. Use our wire mesh chart to find the opening best suited to your application.


If you need to determine the size of an existing screen, we offer metal mesh counters. They are small enough to put in your pocket and extremely easy to use. Just unfold it and set it on a piece of wire mesh. The base is a 1-inch square opening and the top is a magnifying glass. There are different units of measure marked on the interior of the base to assist you with identifying wire diameter, opening, and holes per inch.


Types of Woven Wire Cloth MARKET GRADE - Wire Cloth Most common specifications of industrial wire cloth.


Used in a wide variety of applications. Usually woven in a square weave or twill weave.


Wire Cloth Used mostly in sifting and sizing applications.


A higher percentage of open area compared to market grade, but less than that of tensile bolting. Usually woven in a square weave.


Wire Cloth Used in sifting and sizing applications and general filtration applications. It has a higher percentage of open area than both market and mill grade. It is typically used when maximum throughput is crucial. Usually woven in a square weave. Sometimes referred to as TBC or Tensile bolting cloth.


Properties of Stainless Steel Wire Mesh


304: The basic alloy. Type 304 (18-8) is an austenitic steel possessing a minimum of 18% chromium and 8% nickel, combined with a maximum of 0.08% carbon. It is a nonmagnetic steel that cannot be hardened by heat treatment, but instead. must be cold-worked to obtain higher tensile strengths. The 18% minimum chromium content provides corrosion and oxidation resistance. The alloy's metallurgical characteristics are established primarily by the nickel content (8% mm.), which also extends resistance to corrosion caused by reducing chemicals. Carbon, a necessity of mixed benefit, is held at a level (0.08% max.) that is satisfactory for most service applications.


316: For severe environments. Of course, there are many industrial processes that require a higher level of resistance to corrosion than Type 304 can offer. For these applications, Type 316 is the answer. Type 316 is also austenitic, non-magnetic, and thermally nonhardenable stainless steel like Type 304. The carbon content is held to 0.08% maximum, while the nickel content is increased slightly. What distinguishes Type 316 from


Type 304 is the addition of molybdenum up to a maximum of 3%. Molybdenum increases the corrosion resistance of this chromium-nickel alloy to withstand attack by many industrial chemicals and solvents, and, in particular, inhibits pitting caused by chlorides.


As such, molybdenum is one of the single most useful alloying additives in the fight against corrosion. 430: The general purpose alloy of the ferritic class and the most popular of straight chromium (17%) stainless steels. Has magnetic properties similar to carbon steel but with much higher corrosion resistance. Commonly used in the food processing industry.


Stainless Steel Woven Mesh Features:

Strong resistance to impact, anti-theft, bulletproof, anti-mosquitoes, high temperature resistance, flame retardant, high strength, strong toughness;


The surface luster is bright and beautiful, can be better to increase air circulation rate and the light of the sun, with smooth surface, the number of mesh standard, latitude and longitude curve are consistent;


Its remarkable characterstic is as hard as iron hard, anti-theft, bulletproof, home office security first place;

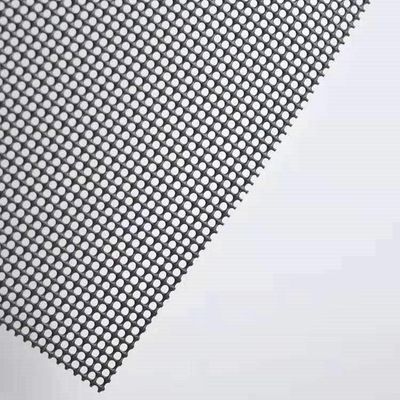

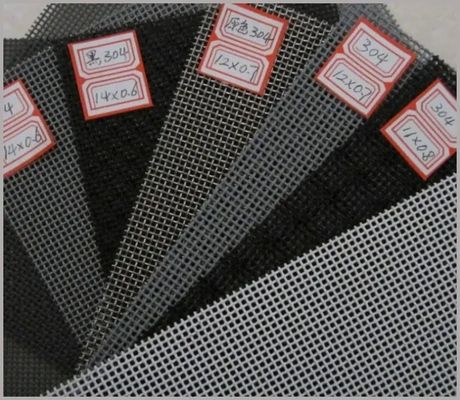

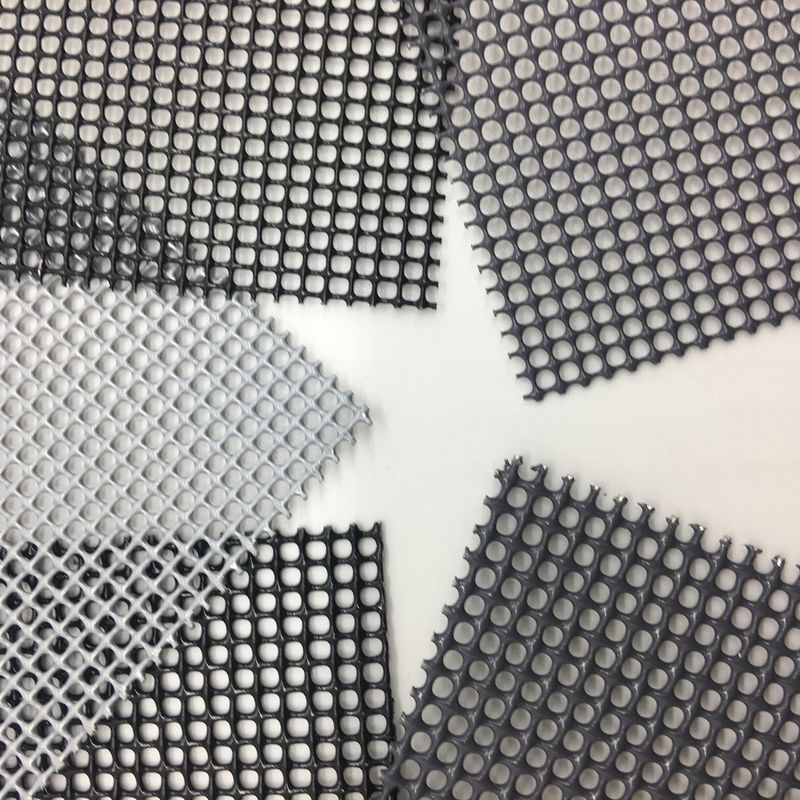

Ss 304 Steel Window Screen Door Protection Insect Proof 0Ss 304 Steel Window Screen Door Protection Insect Proof 1

Ss 304 Steel Window Screen Door Protection Insect Proof 2

Ss 304 Steel Window Screen Door Protection Insect Proof 3Ss 304 Steel Window Screen Door Protection Insect Proof 4
