Customized Johnson Wire Screen Stainless Steel For Well Drilling
Product Specifications
| Attribute |
Value |
| Name |
Customized Stainless Steel Wedge Wire Johnson Screen For Well Drilling |
| Material |
Stainless steel 304/316 |
| Wedge wire |
Width: 1.5mm, 1.8mm, 2.3mm etc. Height: 2.2mm, 2.5mm, 2.7mm |
| Support rod |
Width: 2.3mm, 3.0mm, 3.3mm Height: 2.7mm, 3.6mm, 4.7mm |
| Support profile |
Flat, triangle wire, round wire, trapezoid wire |
| Size |
Can be customized |
| Characteristics |
Strong resistance ability |
Product Description

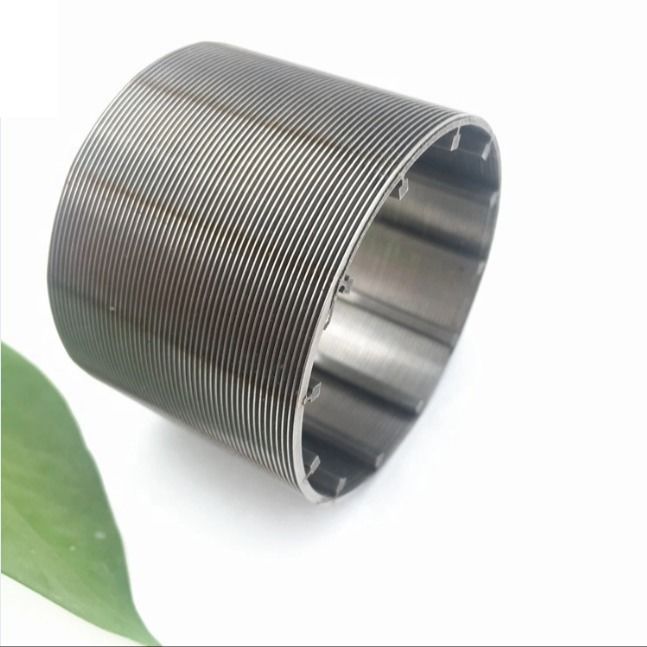

Wedge wire filter, also called wedge wire strainer or wedge screen filter, is composed of wedge wires and support bars. This durable construction prevents deformation during extended use, thanks to our mature wedge wire filter processing technology.

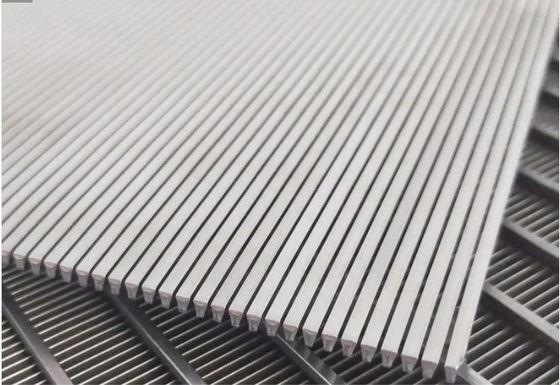

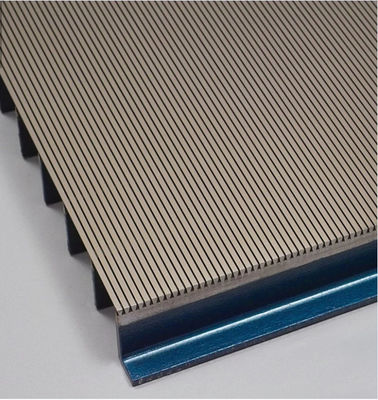

The profile wires of wedge screen filter are typically wedge or triangle wire, while support bars can be triangle wire, round wire, flat wire or wedge wire. The design features an inwardly expanding V-shaped groove to minimize clogging from solid particles.
This mechanical self-cleaning device was developed to meet the growing demand for an efficient and economical method of removing suspended solids from liquid streams. The continuous self-cleaning effect allows for higher flow capacities than other screen types, resulting in substantial savings in both investment and maintenance.
Technical Parameters
| Parameter |
Specifications |
| Material |
Stainless steel 304/316 |
| Wedge wire |
Width: 1.5mm-3.7mm, Height: 2.2mm-7.0mm |
| Support rod |
Width: 2.3mm-3.7mm, Height: 2.7mm-6.3mm, Round: 2.5mm-6.0mm |
| Support profile |
Flat, triangle wire, round wire, trapezoid wire |
| Size |
Customizable |
| Characteristics |
Strong solid structure, High open area, Accurate slot dimensions |
Product Advantages
- Long service life
- High opening rating
- Uniform screen seam with stable welding quality
- Excellent strength, stiffness and load capacity
- Resistant to acid, alkali, high temperature, pulling force and wear
Applications
Architecture and construction, Food and beverage screens, OEM screen components, Refining and petrochemical, Waste water treatment, Water well and oil well, Coal and mine, Chemical industry, Pharmacy, Metallurgy, Coal mining, Environmental protection.
Frequently Asked Questions
Q: Can I get free samples?
A: Yes, we provide free samples anytime.
Q: What materials do you use?
A: We use stainless steel.
Q: Is there quality control?
A: Yes, all production lines have adequate quality control.
Q: What are your payment terms?
A: T/T 30% deposit, 70% balance before delivery. We provide product and packaging videos before final payment.
Q: What is the delivery time?
A: Typically 15 days after receiving advance payment. Exact timing depends on product type and order quantity.
