SS 304 Flat Wedge Wire Screen for Water Well Casing

SS 304 Flat Wedge Wire Screen for Water Well Casing
SS 304 Flat Wedge Wire Screen for Water Well Casing
SS 304 Flat Wedge Wire Screen for Water Well Casing SS 304 Flat Wedge Wire Screen for Water Well Casing SS 304 Flat Wedge Wire Screen for Water Well Casing SS 304 Flat Wedge Wire Screen for Water Well Casing

Large Image :  SS 304 Flat Wedge Wire Screen for Water Well Casing

Product Details:
Place of Origin: Hebei Province China
Brand Name: VELP
Certification: SGS,BV ISO
Model Number: wedge wire screen 008
Payment & Shipping Terms:
Minimum Order Quantity: 10sqm
Price: USD10-USD20/SQM
Packaging Details: Iorn Pallet+safety belts or wooden box
Delivery Time: 10-15days
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability: 3000sqm/day
Contact Now

SS 304 Flat Wedge Wire Screen for Water Well Casing

Description
Name: SS 304 Flat Wedge Wire Slot Screen Pressure Screen Water Well Casing Pipe Material: Stainless Steel 304/316
Wedge Wire: Width:1.5 Mm 1.8mm 2.3mm Etc. Height:2.2mm 2.5mm 2.7mm Support Rod: Width:2.3mm 3.0mm 3.3mm Height:2.7mm 3.6mm 4.7mm
Support Profile: Flat,triangle Wire,round Wire,trapezoid Wire Size: Can Be Customized
Keywords: Long Service Life
Highlight:

ss 304 sieve bend screen

,

flat sieve bend screen

,

ss 304 wedge wire filter screen

SS 304 Flat Sieve Bend Screen
Long Service Life Industrial Filtration Solution
High-quality stainless steel wedge wire slot screen designed for durability and precise filtration in demanding industrial applications.
Product Specifications
Attribute Value
Name SS 304 Flat Wedge Wire Slot Screen Pressure Screen Water Well Casing Pipe
Material Stainless Steel 304/316
Wedge Wire Width: 1.5mm, 1.8mm, 2.3mm etc. | Height: 2.2mm, 2.5mm, 2.7mm
Support Rod Width: 2.3mm, 3.0mm, 3.3mm | Height: 2.7mm, 3.6mm, 4.7mm
Support Profile Flat, Triangle Wire, Round Wire, Trapezoid Wire
Size Customizable to requirements
Product Description
Our stainless steel wedge wire slot screen is constructed from precision-welded rods and V-shaped wire, creating a durable filtration solution with high open area and accurate slot dimensions. The unique V-section design prevents clogging while ensuring optimal water flow.
Key Characteristics
  • Heat-resistant and corrosion-resistant construction
  • Excellent mechanical properties and structural integrity
  • Long service life with safety and reliability
  • Suitable for various medium filtering applications
  • Precision welding at each intersection for maximum strength
Technical Advantages
  • Continuous production process: V-shaped profile wires create slots that enlarge inwardly to prevent clogging
  • Low maintenance: Easy cleaning through scraping or back washing
  • High efficiency: Precise slot openings for accurate separation
  • Cost-effective operation: Large open area enables effective flow with low pressure drop
  • Durable construction: Welded intersections create strong, long-lasting screens
  • Flexible installation: Supporting constructions allow design flexibility
  • Chemical resistance: Suitable for high temperatures and pressures
Applications
Our wedge wire screens are ideal for:
  • Water well and oil well systems
  • Waste water treatment plants
  • Food and beverage processing
  • Refining and petrochemical industries
  • Chemical and pharmaceutical applications
  • Metallurgy and coal mining operations
  • Environmental protection systems
  • Architecture and construction projects
Frequently Asked Questions
Can I get free samples?
Yes, we provide free samples upon request.
What materials are used in your products?
We use high-quality stainless steel (304/316 grade).
Do you have quality control measures?
Yes, all production lines undergo strict quality control procedures.
What are your payment terms?
30% deposit via T/T, with 70% balance paid before delivery. We provide product videos before final payment.
What is your typical delivery time?
Approximately 15 days after receiving deposit, depending on order specifics.
Product Images

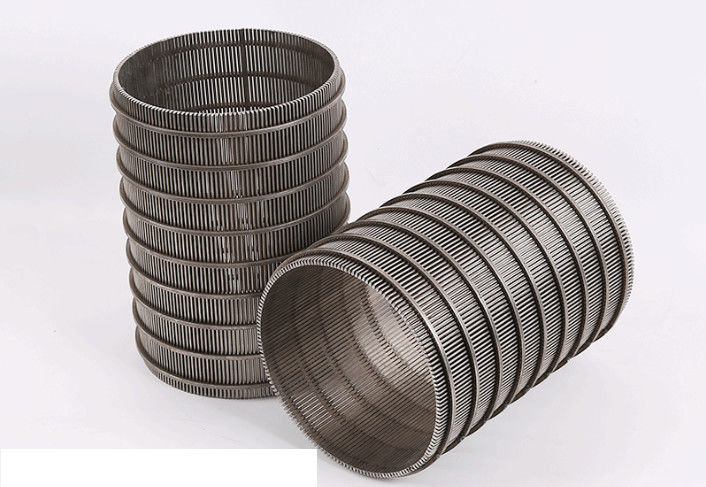

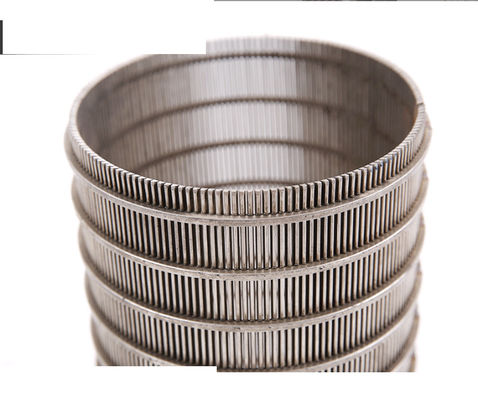

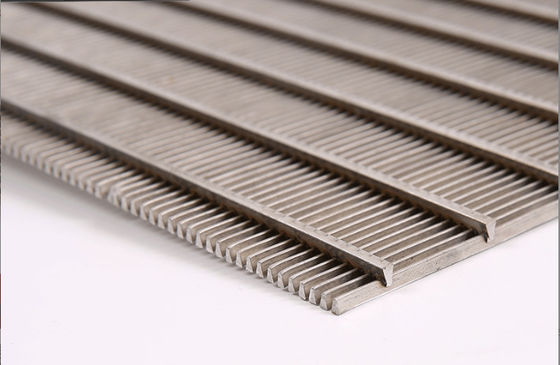

SS 304 Flat Wedge Wire Screen for Water Well Casing 0
SS 304 Flat Wedge Wire Screen for Water Well Casing 1
SS 304 Flat Wedge Wire Screen for Water Well Casing 2
SS 304 Flat Wedge Wire Screen for Water Well Casing 3
