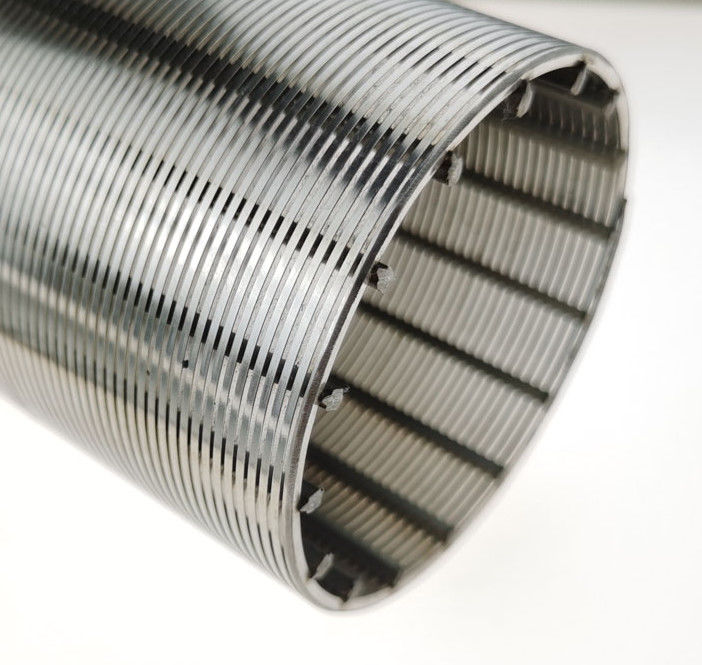

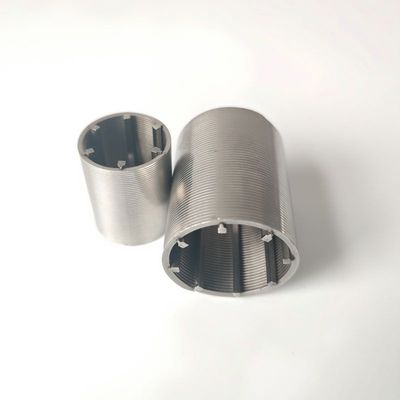

SS304 316 Wedge Wire Screens for Well Drilling Custom Sizes

SS304 316 Wedge Wire Screens for Well Drilling Custom Sizes
SS304 316 Wedge Wire Screens for Well Drilling Custom Sizes
SS304 316 Wedge Wire Screens for Well Drilling Custom Sizes SS304 316 Wedge Wire Screens for Well Drilling Custom Sizes SS304 316 Wedge Wire Screens for Well Drilling Custom Sizes

Large Image :  SS304 316 Wedge Wire Screens for Well Drilling Custom Sizes

Product Details:
Place of Origin: China
Brand Name: VELP
Certification: SGS
Model Number: Wedge Wire Screen
Payment & Shipping Terms:
Minimum Order Quantity: 2pcs
Price: USD10-USD20/SQM
Packaging Details: iron pallet + safety belt+ plastic films
Delivery Time: 5-8 workdays
Payment Terms: L/C,T/T,MoneyGram
Supply Ability: 10000 Piece/Pieces per Month
Contact Now

SS304 316 Wedge Wire Screens for Well Drilling Custom Sizes

Description
Name: 304 316 Filter Wedge Wire Johnson Screen Looped Wedge Wire Screen Used In Well Drilling Type: Pipe, Flat Sheet, Bend Sheet
Material: SS304 316 316L Wedge Wire: Can Be Customized.
Design: Based On Drawing, Support Rod Size: 1.5*2.5mm, 1.8*2.5mm, 2*3mm, 2*4mm, 3*5mm
Size: Customized Transport Package: Iron Pallet+safety Belts+pvc Films
Highlight:

ss 304 wedge wire screens

,

well drilling wedge wire screens

,

ss 316 wedge wire filter

SS 304/316 Wedge Wire Screens for Well Drilling
Product Specifications
Attribute Value
Name 304/316 Filter Wedge Wire Johnson Screen Looped Wedge Wire Screen
Type Pipe, Flat Sheet, Bend Sheet
Material SS304, 316, 316L
Wedge Wire Customizable
Design Based on drawing
Support Rod Size 1.5×2.5mm, 1.8×2.5mm, 2×3mm, 2×4mm, 3×5mm
Size Customized
Transport Package Iron pallet + safety belts + PVC films
Product Overview

Wedge wire screens, also known as Johnson screens or wedge wire panels, are precision-engineered filtration components manufactured with surface profiles (wedge wire) and support profiles (support rods). The wedge wires are welded onto support rods at each intersection at 90 degrees, creating a durable and precise filtration surface.

Technical Specifications
Component Available Sizes (mm)
Wedge Wire 0.5×1.5, 0.75×1.5, 1×2, 1.5×2, 2×3, 2×4, 3×5
Support Rod 1.5×2.5, 1.8×2.5, 2×3, 2×4, 3×5, 3×6, 3×10, 4×7, 5×6, 5×8
Slot Size 20 micron to 3000 micron (±5 micron tolerance)

Screen diameters range from 0.750" to 38" and larger in fabricated sections, meeting industry standards and specific tolerance requirements.

Key Features
  • Smooth surface with small, precise slot sizes for accurate filtration
  • Stainless steel construction for corrosion, rust, and chemical resistance
  • Extended operational lifetime with durable welded construction
  • High open area design for improved flow rates
  • Self-cleaning effect with minimal clogging
  • Low pressure loss and increased efficiency
  • Capable of withstanding heavy loads and abrasive conditions
Applications
  • Carbon and catalyst retention
  • De-watering and filtration systems
  • Flow distribution and underdrains
  • Intake screens and outlet baskets
  • Reactor screens and resin traps
  • Chemical, pulp/paper, and mining industries
  • Brewing, sewage treatment, and oil/gas applications
Packaging Options
  • Plywood case + safety belts + PVC films
  • Carbon steel pallet + safety belts + PVC films
Delivery Options
  • Air freight: 2-3 days
  • Sea freight: Approximately 35 days
  • Express shipping: 3-7 days
SS304 316 Wedge Wire Screens for Well Drilling Custom Sizes 0 SS304 316 Wedge Wire Screens for Well Drilling Custom Sizes 1 SS304 316 Wedge Wire Screens for Well Drilling Custom Sizes 2
Contact Us for Custom Solutions
Lisa
Tel: 0086 183 3180 3300
Email: sale1@velpwiremesh.com
