Product Details:
|
| Name: | 304 Well Screen Stainless Steel Wedge Wire Screens Welded Sieve Wedge Bend Wire Screen | Type: | Bend Screen |
|---|---|---|---|
| Material: | SS304 SS316 SS304L SS316L | Hole Size: | Slot Hole 0.2mm 0.3mm 0.35mm 0.4mm |
| Size: | 1*2m, 1.5*3m, 2*4m,customized Size | Hole Shape: | Square |
| Usage: | Liquid Filter, Air Filter, Solid Filter, Mining | Feature: | Corrosion Resistance,alkali-resisting,durable |
| High Light: | well wedge wire screens,304 stainless steel wedge wire screens,304 stainless steel wedge wire filter |
||

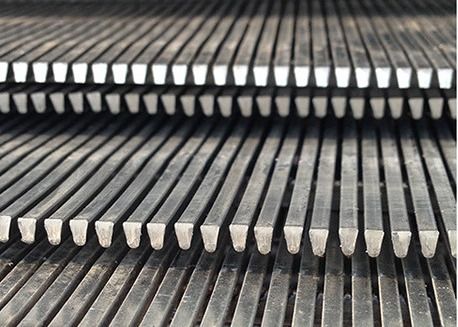

Wedge wire screens are manufactured by resistance welding V-shaped wire on support rods. Our wedge wire screen begins with the highest quality raw wire then is made into screen that is cut, shaped, fabricated and cleaned.
Wedge wire can be ordered as raw screen material or fabricated to a finished product to suit your application requirements. The pin point control over the specifications of the slot is what allows Screen to provide its customers with highly accurate flow distribution and effective media, debris and sediment filtration. Support Rods running perpendicular to the wrap wire strengthen and maintain the proper design configuration of the screen allowing it to handle intense pressure demands.
Our Wedge Wire Screen is designed to control various processing conditions including volumetric flow rate, minimum dimensional media retention, minimum open area and fluid pressure capabilities. Screen is able to professionally work a large variety of stainless steels and alloys into both standard or customized screen applications and accessory products.
| Item | Size(mm) |
| Wedge wire | 0.5x1.5 0.75x1.5 1x2 1.5x2 2x3 2x4 3x5 |
| Support rod | 1.5x2.5 1.8x2.5 2x3 2x4 3x5 3x6 3x10 4x7 5x6 5x8 |
| Slot | 20 micron to 3000 micron,tolerance +-5 micron |
Wedge Wire Screen Diameter:
Screen diameters range from 0.750" to 38" and up in fabricated sections. Your specific tolerance and size requirements will be adhered to and will meet the required industry standards.
Wedge wire screen material: Stainless steel 304,316,316L etc.
Wedge wire screen mainly production process: wedge wire profiling and welding,cutting and other fitting welding,surface treatment,certification,package.

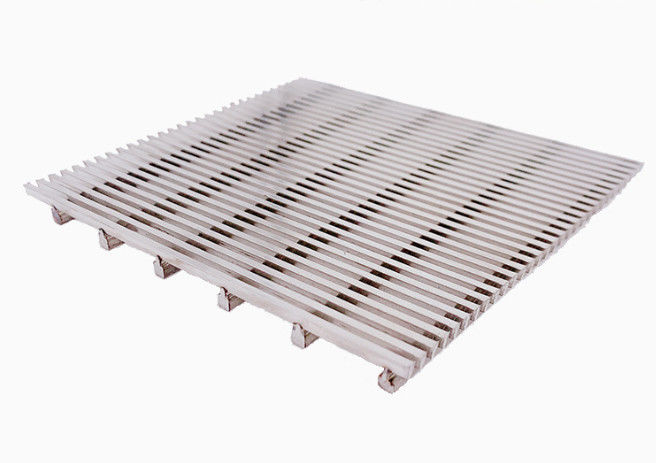

Wedge wire screen type: Square shape,rectangle shape,round shape,with hole,with frame ,etc. Wedge wire screen panels can be divided to different parts,too.
Carbon Retention
Catalyst Retention
Center Pipes
Collectors
De-Watering
Distributors
Filter Elements
Filter Leaf Chambers
Filter Support Cores
Flow Distribution
Intake Screens
Outlet Baskets
Reactor Screens
Resin Traps
Trap Filters
Underdrains
Please feel free to contact us if you have any questions, customized sheet.
MS.Lisa
tel 0086 183 3180 3300
email: sale1@velpwiremesh.com
- Extended lifetime
- Slot during abrasive operation on the screen surface does not change
- Capability to withstand heavy loads
- High open area
- Less prone to clogging
- Perfectly smooth and flat surface
- High precision of execution Increased capacity and more precise separation
- Self-cleaning effect
- Low pressure loss
- Increased efficiency
- Permanence of exploited resources
- Lower capital cost and maintenance
1. Plywood case + safety belts + pvc films
2. carbon steel pallet + safety belts + pvc films
By air :2-3 days
By sea :35 days around
By express: 3-7 days
