G90 G60 American Standard 1.75lbs Self Furring Diamond Galvanized Expanded Metal Mesh Lath

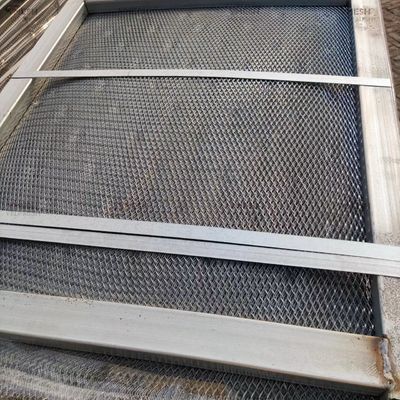

Large Image : G90 G60 American Standard 1.75lbs Self Furring Diamond Galvanized Expanded Metal Mesh Lath

Product Details:

Place of Origin:	China
Brand Name:	VELP
Certification:	SGS
Model Number:	stucco 01

Payment & Shipping Terms:

Minimum Order Quantity:	500pcs
Price:	USD1-USD2/PCS
Packaging Details:	iron pallet + safety belt+ plastic films
Delivery Time:	5-15 workdays
Payment Terms:	L/C, T/T
Supply Ability:	100000 Piece/Pieces per Month

Contact Now

G90 G60 American Standard 1.75lbs Self Furring Diamond Galvanized Expanded Metal Mesh Lath

Description

Product Name:	G90 G60 American Standard 1.75lbs Self Furring Diamond Galvanized Expanded Metal Mesh Lath	Use:	Exterior Stucco Base,Masonry Walls
Warranty:	10 Years	Weight Standard:	3.4lb 2.5lb 1.75lb
Surface Treatment:	Hot Dipped Galvanized	Hs Code:	73145000
Zinc Coating:	G30 & G60	Sample:	Available
Product Application:	Stucco Mesh	Raw Material:	Galvanized Steel
Highlight:	1.75lbs Expanded Metal Mesh Lath , American standard Expanded Metal Mesh Lath , G90 G60 Expanded Metal Mesh Lath

G90 G60 American standard 1.75lbs Self Furring Diamond Galvanized Expanded Metal Mesh Lath

Product Description

Expanded metal lath for construction is made from coils of sheet steel , slit and expanded into a herring bone pattern with metal ribs running about every 3 inches on the long direction of the sheet . This product is typically stapled ,nailed or screw applied to the substrate. It can also be tie wire attached to cold rolled grillage .

Expanded metal lath is widely used in plaster project, it provides an excellent plaster base. The permanent pleat holds the plate approximately 1/4inch away from solid to aid the stucco to the pleat. so the plastering is very solid and flat, and can also keep away from cracking.

Expanded metal mesh is also called pulled plate wire mesh. A rigid piece of metal that has been slit and drawn into an open mesh pattern in a single operation. It is stronger, lighter in weight and more rigid than the original base metal.

Expanded metal mesh material are carbon steel plate, stainless steel, galvanized steel, aluminum, aluminum foil, lead, nickel plate, titanium, aluminum-magnesium alloy panels. Conventional mesh is formed in a diamond pattern. It has other pattern of hexagonal, round, triangle, scale-like opening.

Product Specification

1.75lbs 2.5lbs 3.4lbs expanded retaining dry walls plaster stucco galvanized mesh for formwork
Material	Galvanized sheet G30 G60 G90,Stainless steel
Type	Flat,self furring,dimples,"V" ribs
Size	27"*96"
Weight:sq/yd	1.75lbs 2.0lbs 2.5lbs 3.4lbs
Package	10 sheets/bundle,500 sheets/pallets
Other products	Angle beads,rib lath,coil mesh, diamond metal lath,expanded metal mesh,plaster bead, control joint beads
Quantity for one container	12000pcs or 10000pcs

Main use:

Metal surface treatment and after processing, are widely used in large venues, both inside and outside decorative, aerospace, petroleum, chemical industry, metallurgy, medicine, paper making, filtration, breeding, packing, mechanical facilities, protection, handicraft manufacturing, high-grade speaker grille, children's seat, baskets, basket, highway protection, and heavy machinery, boilers, oil mines, locomotives, tonner steamship, work platform, staircase, walkway. Also can be used for construction, highway and bridge as reinforced use.

Features and benefits of expanded metal mesh:

The mesh is formed from a single piece of metal
The process is not wasteful of material
Higher strength-to-weight ratio than sheet metal
Anti-slip surface
Excludes and retains simultaneously
Premium reinforcement properties
Practical and effective screening
High efficient conductor
Super corrosion resistance

Product Package:

Material	Weight	Width	Length	Packing
G60 G90galvanized sheet	1.75lbs	27"	96"	10pcs per bundle, 50bundle per pallet
	2.5lbs	27"	96'	10pcs per bundle, 50bundle per pallet
	3.4lbs	27"	96"	10pcs per bundle, 50bundle per pallets

G90 G60 American Standard 1.75lbs Self Furring Diamond Galvanized Expanded Metal Mesh Lath 0
