Product Details:
|
| Product Name: | Stainless Mesh Woven Stainless Steel Wire Mesh 0.02-6.30mm Diameter Aluminum Window Screen | Material: | Stainless Steel |
|---|---|---|---|
| Wire Diameter: | 0.21mm, 0.23mm, 0.25mm Etc | Length: | 30m, 50m, 100m |
| Advantage: | Anti-Theft, Mosquito-Proof | Technique: | Plain Weave |
| Width: | 80cm, 90cm, 100cm, 120cm | Mesh: | 18*16, 18*14 |
| HS Code: | 7314140000 | ||
| High Light: | 0.02mm security door mesh steel,sus security door mesh steel,6.3mm metal mesh for screen doors |
||

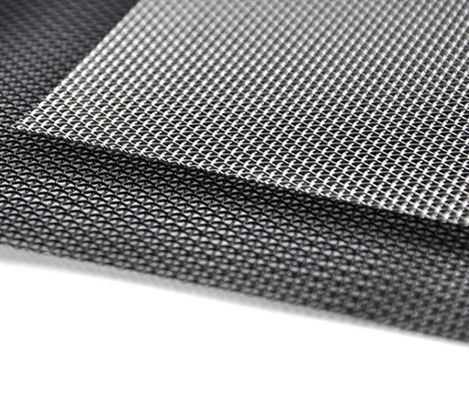

Woven wire mesh or woven wire cloth, is woven by machine. It is similar to the process of weaving clothing, but made of stainless steel wire. The mesh can be made through different weave styles. The purpose is to produce solid and reliable products to adapt to various complex application environments.High precision technology makes the production cost of woven wire mesh higher, but it also has a very wide range of uses.
Product Application:
* Stainless steel security screen can resist the thieves and intruders, so it is used in the residences, hotels and other place for security.
* Due to the anti-mosquitoes and flies feature, it can be used in the windows, doors, porches and patios to prevent the harmful insects.
* Stainless steel security screen can resist the corrosion, rust and fire, it can be used in the harsh environments where is corrosive, dusty. It can also be used in the fire fighting accesses.
* Another importance feature of the stainless steel security screen is bullet-proof, so it can be used in military base, and other safety places.
|
Product Name
|
Woven Wire Mesh, Wire Cloth
|
|
Stainless Steel Grade
|
Stainless Steel 201,304,
|
|
Special Material Options
|
Inconel, Monel, Nickel, Titanium, etc
|
|
Wire Diameter Range
|
0.21mm,0.23mm,0.25mm |
|
Hole Size Range
|
1 - 3500mesh
|
|
Weave Types
|
Plain Weave
Twill Weave
Dutch or 'Hollander' Weave
Plain Dutch Weave
Twill Dutch Weave
Reverse Dutch Weave
Multiplex Weave
|
| Color |
natural color,black |
|
Mesh Width
|
80cm,90cm,100cm,120cm |
|
Mesh Length
|
30m,50m,100m |
|
Mesh Type
|
Rolls and sheets are available
|
| Common Mesh Specifications ( Reference Data ) | |||||
| Mesh | Aperture ( mm ) | Mesh | Aperture ( mm ) | Mesh | Aperture ( mm ) |
| 2 | 13 | 18 | 1 | 70 | 0.22 |
| 3 | 6.5 | 20 | 0.9 | 80 | 0.18 |
| 4 | 5 | 24 | 0.8 | 90 | 0.16 |
| 5 | 4 | 30 | 0.6 | 100 | 0.154 |
| 6 | 3.2 | 35 | 0.5 | 120 | 0.125 |
| 8 | 2.5 | 40 | 0.45 | 150 | 0.1 |
| 10 | 2 | 45 | 0.4 | 180 | 0.09 |
| 12 | 1.6 | 50 | 0.355 | 200 | 0.075 |
| 14 | 1.43 | 55 | 0.315 | 220 | 0.07 |
| 16 | 1.25 | 60 | 0.3 | 250 | 0.063 |
Mesh, Mesh Count, And Micron Size:
Mesh Count and Micron Size are very important terms in the wire mesh industry.
The Mesh count is actually the number of holes in an inch length, so the smaller mesh count,the hole is bigger.The Micron Size actually means the hole size.Can be in miron or mm.
In order to make it easier for people to understand the number of the holes of the wire mesh, these two specifications are usually used together. This is the key component of specifying the wire mesh. The Mesh Count determines the filtering performance and function of the wire mesh.
Micron Size = size of mesh hole. (larger the micron size, larger the mesh hole)
More intuitive expression: Mesh Count = number of mesh hole. (larger the mesh count, the smaller the mesh hole).
1. 304 stainless steel
2. The aperture is uniform and the net surface is smooth
3. High strength and toughness
4. Complete specifications, support customization
5. Corrosion resistance and pressure resistance
6. Good filtering performance, durable use
Excellent corrosion resistant ability.
Lower thermal expansion coefficient.
High thermal conductivity.
Widely used in chemical.
Seawater desalination equipment.
Uniform screen thickness.
