Product Details:
|
| Name: | Woven 100 200 500 Micron Stainless Steel Sieve Filter Wire Cloth | Material: | SS 201 304 316 316L |
|---|---|---|---|
| Standard: | ASTM E 2016 | Use: | Strainers,filter Screen,sieves,food Processing |
| Advantages: | Corrosion,abrasion Resistance, | Weave Type: | Plain Weave, Twill Weave,plain Dutch Weave,dutch Twill Weave |
| Package: | Waterproof Paper,wooden Case | Mesh Count: | 1*1--635*635 Mesh |
| High Light: | AISI 304 316 Woven Wire Mesh Roll,Twill 500 micron stainless steel mesh,Stainless Steel Woven Wire Mesh Roll |
||

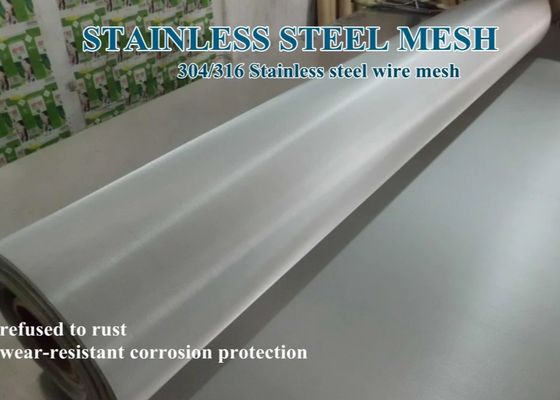

Woven 100 200 500 Micron Stainless Steel Sieve Filter Wire Cloth
Stainless steel sieve filter wire cloth brief introduction
Using 304 304L 316 316L 310 310L and other stainless steel wire processing,the surface is smooth,no rust, corrosion resistance, non-toxic,health,environmental protection.For acid and alkali conditions,screening and filtration,The oil industry for the mud network,chemical fiber industry for the screen,plating .
Stainless steel sieve filter wire cloth brief specification
| Material | SS 201 202 304 304L 316 316L 321 430 etc |
| Woven style | plain,twill,dutch twill,reverse dutch, five heddle |
| Mesh | 1--635 mesh count |
| Diameter | 0.02mm--2.0mm |
| Usage | Filters,sieve,chemical industry,mine industry,paper making etc |
| Package | Innter kraft,outside plastic cloth, put into wooden pallet or case |
| Exported | USA,EU JAPAN |
| Stainless steel wire mesh plain weave | |||
| Mesh | Wire diameter(mm) | Opening(mm) | Material(AISI) |
| 7*7 | 1.0 | 2.63 | 304 or 316 |
| 10*10 | 0.6 | 1.94 | 304 or 316 |
| 12*12 | 0.5 | 1.62 | 304 or 316 |
| 16*16 | 0.4 | 1.19 | 304 or 316 |
| 18*18 | 0.35 | 1.06 | 304 or 316 |
| 20*20 | 0.35 | 0.87 | 304 or 316 |
| 24*24 | 0.26 | 0.8 | 304 or 316 |
| 30*30 | 0.3 | 0.55 | 304 or 316 |
| 35*35 | 0.17 | 0.56 | 304 or 316 |
| 40*40 | 0.23 | 0.4 | 304 or 316 |
| 50*50 | 0.2 | 0.31 | 304 or 316 |
| 60*60 | 0.15 | 0.27 | 304 or 316 |
| 70*70 | 0.12 | 0.24 | 304 or 316 |
| 80*80 | 0.13 | 0.19 | 304 or 316 |
This wire cloth is commonly used to make strainers,filter screens and sieves,It complies with ASTM E2016 standards for dimensions.
430 / 316 / 304 stainless steel has excellent and economical choice for corrosion and abrasion resistance.Use it in food-processing applications,It is able to withstand corrosive solutions and harsh cleaning.
Stainless steel sieve filter wire cloth application
Stainless steel wire mesh has been widely used in chemical,petrochemical and oil exploration,transporation,nuclear industry,energy,textile,aerospace,electronics,food,phamaceutical,paper and other industrial sections. In certain areas or may not become an indispensable substituted metal materials.
Stainless steel sieve filter wire cloth advantages
1.The square mesh count ranges from 1 mesh to 635 mesh,dutch weave mesh can reach 3600 mesh,diameter is from 0.015mm--8mm,the width can reach 6m,and all can be produced according to the national standard,ISO,ASTM,DIN and other standards/
2.High precision fine mesh products are produced by imported looms from Germany and Japan and new intelligent NC looms independetly developed.The mesh has the characteristics of good mesh flatness,high filtration accuracy and stable performance.Precision pressure filters.Fuel filters and vacuum filters.
3. Additionally,stainless steel sreen is strong and versatile enough to be installed into window and door frames in order to resist vandals and keep out insets.
