Product Details:
|
| Name: | Galvanized Steel Hy-Rib Lath Permanent Formwork Mesh For Buildings | Material: | Galvanized Steel Sheet |
|---|---|---|---|
| Size: | 445mm/450mm*2000mm/2500mm | Thickness: | 0.2mm 0.25mm 0.3mm 0.35mm 0.4mm 0.5mm |
| Finishing: | Hot Dip Galvanized | Package: | 100 Pcs /bundle 250 Pcs /pallet |
| Application: | Hotel,Villa,Apartment,Office,School, | Feature: | Permanent Rapid And Convenient |
| Highlight: | Hy Rib Permanent Formwork 450mm*2000mm,450mm*2000mm High Ribbed Formwork,ISO9002 Hy Rib Permanent Formwork |
||

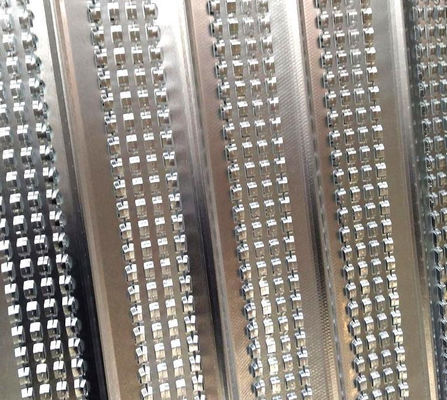

Permanent formwork mesh for buildings detail specification
High ribbed formwork mesh is also named as high ribbed formwork or hy rib formwork.
This product has excellent engineering quality,construction security and widely used in many areas.
| Thickness(mm) | Weight(kg) | Width(mm) | Length(mm) | Rib height (mm) | Rib distance(mm) |
| 0.21 | 1.7 | 450 | 2200 | 14--20 | 90 |
| 0.23 | 1.9 | 450 | 2200 | 14--20 | 90 |
| 0.3 | 2.48 | 450 | 2200 | 14--20 | 90 |
| 0.35 | 2.9 | 450 | 220 | 14--20 | 90 |
| 0.4 | 3.3 | 450 | 2200 | 14--20 | 90 |
| 0.45 | 3.7 | 450 | 2200 | 14--20 | 90 |
Permanent formwork mesh for building feature
1. Good engineering quality and construction security
2. Concrete permanent assembly free sheet is much convenient for engineering design and processing
3. Widely used in tunnels,bridges and valve systems and so on to make the process of construction much more fast and stable.
Permanent formwork mesh for building application:
Widely used as a plaster backing on ceilings, walls and stud partitions. Rib mesh is also ideal for refurbishing damaged or aged masonry walls when a key for rendering is not certain due to disintegration or softening of the wall face.
