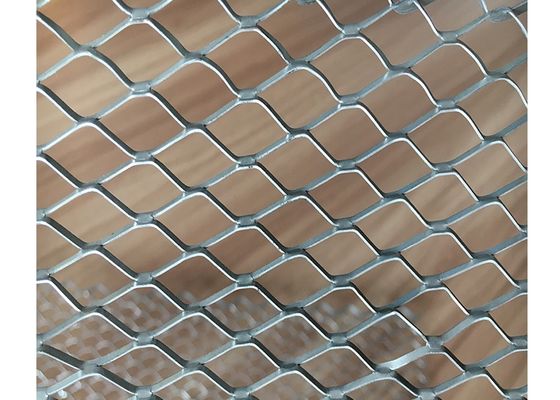

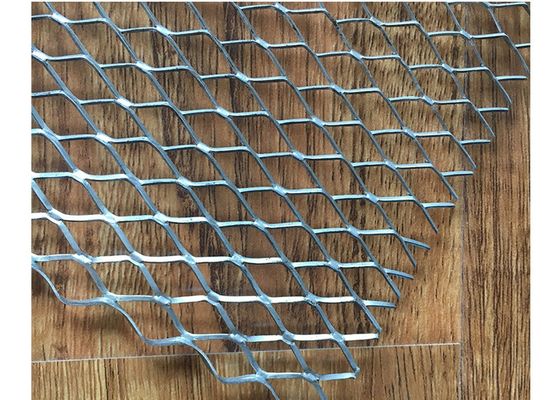

ASTM A653 Galvanized Self-Furring Expanded Metal Lath 27x96

This expanded metal lath is produced to ASTM A653 standard specification for steel sheet, zinc coated or zinc iron alloy coated by hot dip process. The diamond metal lath serves as a versatile plaster base and reinforcement for all types of walls, ceilings, and fireproofing of steel beams and columns.

• Available in 1.75lbs, 2.5lbs, and 3.4lbs per sheet
• Suitable for both interior and exterior applications
• Functions as reinforcement for base coat applications
• Easily cut and formed for curved surfaces
• Resists mold, fire, and insect damage
• Flexible design allows shaping to ornamental degrees not possible with other plaster bases
• Provides excellent security against penetration or forced entry

Flat Diamond Metal Lath: A versatile base for cement plaster walls with carefully formed diamond keys for proper embedment. Suitable for both hand and machine applied plaster.

Self Furring Dimpled Metal Lath: Features 1/4" dimples that provide necessary furring off the sheathing's surface for proper embedment and keying of the scratch coat.

Self Furring Grooved Metal Lath: Manufactured with approximately 1/4" deep grooves (5 per sheet) to ensure thorough plaster penetration and strong mechanical bond.
