Product Details:
|
| Name: | PVC Coated Welded Airport Safety Fence Concertina Razor Wire Prision Fence | Material: | Galvanized Wire And PVC Coated, |
|---|---|---|---|
| Wire Diameter: | 3.5--5.5mm | Mesh Size: | 50*100mm /55*150mm |
| Height: | 1800-2500mm | Certificate: | CE ISO9000 TUV SGS |
| Clips: | UV Proof Plastic Or Metal | Pack: | In Pallets |
| High Light: | CE ISO9000 Concertina Razor Wire Fence,Concertina Razor Wire Fence 2300mm,ISO9000 razor wire prision fence |
||

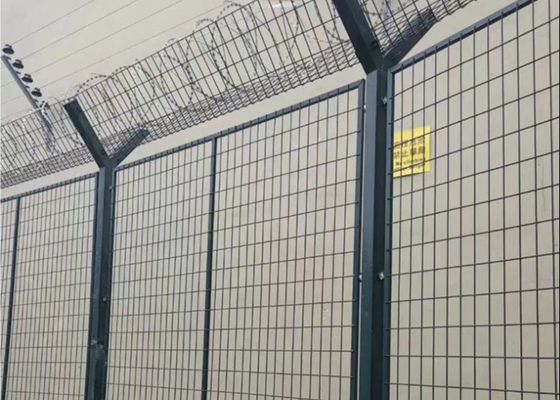

PVC Coated Welded Airport Safety Fence Concertina Razor Wire Prision Fence
Concertina razor wire prision fence basic information
Prision fence panel is also called Y type safety mesh.It is supported by Y shaped support and reinforced by welded mesh.The impact resistance of guardrail can be enhanced by Y shaped reinforcement in the mesh.Security connector and hot dip galvanized blade or barbed wire mesh is one of the fence products with high strength and safety.
Concertina razor wire prision fence specification
| Panel | Mesh | Wire thickness | Surface treatment | Panel width | Folds No. | Panel height | Fence height |
| Big panel |
50*100mm 55*100mm 50*200mm |
4.0mm 4.5mm 5.0mm |
Galvanized Powder coating PVC coated |
2.5m 3.0m | 4 | 2000 | 2700 |
| 5 | 2300 | 3200 | |||||
| 6 | 2600 | 3700 | |||||
| V panel | 2 | 530 | 2700 | ||||
| 630 | 3200 | ||||||
| 730 | 3700 |
| Profile | Wall thickness | Surface treatment | Length | Base plate | Cap |
| 60*60mm | 2.0mm 2.5mm |
Galvanized Powder coating PVC coated |
2700mm Panel+550mmV | Available on request | Plastic or Metal |
| 3100mm Panel+650mmV | |||||
| 3600mm Panel+750mmV |
Concertina razor wire prision fence surface treatment
1.Hot dipped galvanized after fabricated
2.Galvanized material fabricated and then powder sprayed coating or pvc coated
3.Hot dipped galvanized after fabricated
The powder material from Akzonobel,Dupont,It can make strongly resist the corrosive and altraviolet radiation,Doubled coating layer make the fence long life more than 10 years
Concertina razor wire prision fence features
1.It is beautiful,practical,convenient for transportation and installation.
2.The mesh is strong, and the column can be adjusted up and down with the ground level.
3. Adding four bending stiffeners to the crosswise of the airport guardrail to the crosswire of the airport guardrail , but also significantly increase the strength and aesthetic feeling of the net surface. which is one of the popular at home and abroad.
4.Prision fence is widely used in airport,military base,prision and other high security places isolation protection.
Concertina razor wire prision fence package
The panels of wire mesh fence:wrapped by wooden pallet with plastic film,to keep the panels clean .
The clamps of wire mesh fence in small carton box, to avoid damage.
The fence post of wire mesh fence,wrapped with plastic film and in bulk or on your request.
