Product Details:
|
| Name: | 6 Ft Heigh Hot Dip Galvanized Diamond Chain Link Cyclone Wire Fence | Material: | Carbon Steel,Galvanized Steel,PVC Coated |
|---|---|---|---|
| Color: | Green Black,grey | Application: | Garden Fence, Highway Fence, Sport Fence, Farm |
| Package: | PVC Film Wrapped On Both Ends | Opening: | 25*25mm 50*50mm 60*60mm 70*70mm |
| Wire Thickness: | 2.0mm 2.5mm 3.0mm 3.5mm 4.0mm | Standard: | ASTM E 2016 ISO9001 |
| High Light: | Black 6 Ft Galvanized Chain Link Fence,6Ft Cyclone Wire Fence,2.0mm 2.5mm Cyclone Wire Fence |
||

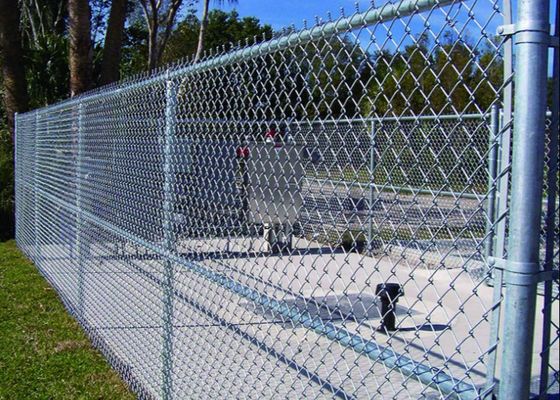

6 Ft Heigh Hot Dip Galvanized Diamond Chain Link Cyclone Wire Fence
Chain link cyclone wire fence basic informations
Chain link wire fence is the most durable,economical and versatile fence system for commercial and industrial applications.It is based on a simple ,easy to install,design of round tubular framework.woven wire mesh and connection fittings.
Chain link cyclone wire fence mesh edge type
1. Barbed-barbed : The wire is twisted in to a barbed selvedge at both ends and is abbreviated as BB.
2. Knuckle-knuckle: The wire is knuckled at both ends and abbreviated as KK.
3. Knuckle-barbed: The wire is knuckled at the bottom and twisted into a barbed selvedge at the top and is abbreviated as KB.
Chain link cyclone wire fence specification
1. Material:High quality low carbon steel wire, stainless steel wire, PVC wire, galvanized wire, iron wire,steel wire.
2. Package: Wrap up the two edges of the crimped rolls with woven bags.then with pallets or bulk.
3. Application
* Enclosure fence for resistant,school,universities,community areas.
* Using to avoid the falling stone.
* Protect fence of the highway,airport.
| Hole size | 1" | 1-1/2" | 2" | 2-1/4" | 2-3/8" | 2-1/2" | 2-5/8" | 3" | 4" |
| 25mm | 40mm | 50mm | 57mm | 60mm | 65mm | 70mm | 75mm | 100mm | |
| Wire diameter | 18gauge-13gauge | 16gauge--8gauge | 14gauge-6gauge | ||||||
| 1.2mm-2.4mm | 1.6mm--4.2mm | 2.0mm-5.0mm | |||||||
| Mesh width | 0.5m-5m | ||||||||
| Mesh length | 10-50m or according to the request specification | ||||||||
| Post & rail diameter | 32mm | 42mm | 48mm | 60mm | 76mm | 80mm | |||
| Post rail thickness | 1.0mm----5.0mm | ||||||||
Chain link cyclone wire fence surface treatments
1. Hot dipped galvanized
With its smooth surface.Chain link fence always are used in backyard or athletic application.
2. Vinyl coated
This vinyl coated is also called PVC coated chain link fence.This PVC coated surface could protection from corrosion.You could choose the colors as per request.
Chain link cyclone wire fence product feature
Chain link fence also known by some as diamond wire mesh,rhombic wire mesh,cyclone fence.is one of the most popular choices of fence for both light residential to heavy commercial fence applications.Chain link fence is one of the most practical styles of fence.relatively easy to install and very cost effective.
1.The mesh is even,the mesh surface is flat,the weaving is simple, the appearance is elegant.
2.The mesh has high quality, wide web width, thick wire diameter,no corrosion,long service life and strong practicability.
3.Parks and zoo fence, playground fence.
4.Highway and railway barrier,sports fence, the road of belt protection.
5.Protecting mountains,prevent the stone falling.and the landslides happening.
Chain link cyclone wire fence applications
Chain link fence is great for many different applications
| Guardrail network facilities | Interior decoration | Zoo enclosures | Mechanical equipment |
| Sport venues enclosure | Handicraft manufacturing | Protective reinforcement | Marine fishing fence |
| Residential safety protection | Construction site fence | Road green belt protect | |
