ISO9002 Velp Wedge Wire Cylinder Vee Wire Filter Screen 6M Length

ISO9002 Velp Wedge Wire Cylinder Vee Wire Filter Screen 6M Length
ISO9002 Velp Wedge Wire Cylinder Vee Wire Filter Screen 6M Length ISO9002 Velp Wedge Wire Cylinder Vee Wire Filter Screen 6M Length ISO9002 Velp Wedge Wire Cylinder Vee Wire Filter Screen 6M Length ISO9002 Velp Wedge Wire Cylinder Vee Wire Filter Screen 6M Length

Large Image :  ISO9002 Velp Wedge Wire Cylinder Vee Wire Filter Screen 6M Length

Product Details:
Place of Origin: China
Brand Name: Velp
Certification: SGS CE ISO9002 BV
Model Number: Wedge wire screen-2
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: USD 10-20 Per pcs
Packaging Details: Wooden Case / Iron Pallet + Bubble Film +Waterproof Paper +Safety Belts
Delivery Time: 15 days
Payment Terms: MoneyGram, Western Union, T/T, L/C
Supply Ability: 2000 pcs per week

ISO9002 Velp Wedge Wire Cylinder Vee Wire Filter Screen 6M Length

Description
Name: Stainless Steel 304 Slot Sand Filter Wedge Wire Screen Cylinder Material: Stainless Steel 201 304 316L
Wire Wrap Size: 1.5*2.0mm 2*3mm 2.2*3.5mm 3*5mm Out Diameter: 28mm--600mm
Length: Up To 6m Or As Client Requirements Application: Sand Free Screen For Water Well
Pack: PVC Films+pallets MOQ: 5pcs
High Light:

Velp Wedge Wire Cylinder

,

Vee Wire Filter Screen 6M Length

,

ISO9002 Vee Wire Filter Screen

Stainless Steel 304 Slot Sand Filter Wedge Wire Screen Cylinder





Filter wedge wire screen cylinder basic information

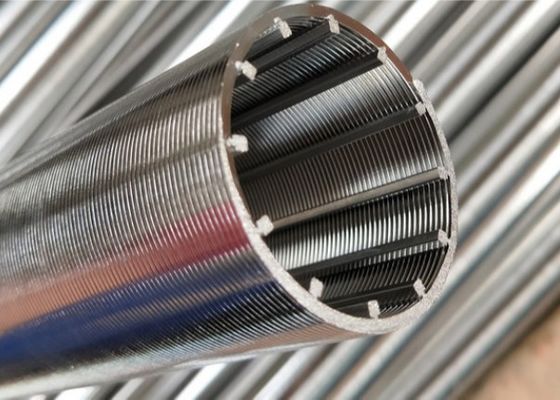

Wedge wire screen consist of V shape profile wire and the longitudinal support rods.Each intersecting point of these wires is fusion welded.so water well screens has sturdy constriction and good mechanical property.The surface has a requirement of precise size and welded to the support wire with a precise clearance.It have the flat mesh and cylindrical type in structure.



Filter wedge wire screen cylinder specification

Wedge wire

Width(mm):1.5  1.8  2.3  3.0  3.3  3.7

Height(mm):2.2  2.5  2.7  3.6  4.3  4.7  5.6  6.3  7.0

Support rod

Width(mm):2.3  3.0  3.3  3.7

Height(mm):2.7  3.6  4.7  5.6  6.3

Round : from 2.5mm---6.0mm

Note  Other specifications available as per request
Materials  Stainless steel 304 316 etc
Length   Up to 6 meters
Diameter   From 25mm to 1200mm
End connection  Plain beveled ends,flanged or threaded couplings
Characteristics Strong solid structure,High open area, accurate slot dimensions



Filter wedge wire screen cylinder benefits



The wedge wire screen also called the wire wrapped screen.Johnson screen.

Continuous slot screens made of V shape wire wrapped around a series of vertical rods.This allows the most inlet area and higher productions rates.



* Reliable sand control

* Very accurate slot openeings and pore sizes.

* Slot and pore size validations

* Resistance against plugging

* Increased production rates

* Superior mechanical strength

* Corrosion resistance



Filter wedge wire screen cylinder advantages



-Strong construction,high strength

-Excellent media retention

-Superb backwash ability

-Less possibility of clogging

-Long service life

-Low maintenance costs



Filter wedge wire screen cylinder application



Architecture and construction

Food and beverage screens

OEM screen components

Refining and petrochemical

Waste water treatment

Water well and oil well

Coal and mine

Chemical industry

Pharmacy

Metallurgy

Coal mining

Environmental protection

ISO9002 Velp Wedge Wire Cylinder Vee Wire Filter Screen 6M Length 0

ISO9002 Velp Wedge Wire Cylinder Vee Wire Filter Screen 6M Length 1

ISO9002 Velp Wedge Wire Cylinder Vee Wire Filter Screen 6M Length 2

ISO9002 Velp Wedge Wire Cylinder Vee Wire Filter Screen 6M Length 3
