Stainless steel 316L 6m Johnson V Wire Screen Filter 1.5*2.0mm 2*3mm

Certification
China Anping Velp Wire Mesh Products Co.,Ltd certification
China Anping Velp Wire Mesh Products Co.,Ltd certification
Customer Reviews
Good response,Good quality,and timely delivery,Keep it up !

—— Vicente

One of the best partners we have ever had in China.Excellent product and services.Products arrived in very good conditions,producerfulfill the promise to deliver quality according requested specification.Communication during and after manufacturing was perfect.I warmly recommend Anping Velp Wire Mesh Products Co.,Ltd for the quality of services .

—— Paul

Everything was super ok.and the supplier met the expectations regarding the product quality.Professional assistance.

—— Elizabeth

I'm Online Chat Now

Stainless steel 316L 6m Johnson V Wire Screen Filter 1.5*2.0mm 2*3mm

Stainless steel 316L 6m Johnson V Wire Screen Filter 1.5*2.0mm 2*3mm
Stainless steel 316L 6m Johnson V Wire Screen Filter 1.5*2.0mm 2*3mm Stainless steel 316L 6m Johnson V Wire Screen Filter 1.5*2.0mm 2*3mm Stainless steel 316L 6m Johnson V Wire Screen Filter 1.5*2.0mm 2*3mm Stainless steel 316L 6m Johnson V Wire Screen Filter 1.5*2.0mm 2*3mm

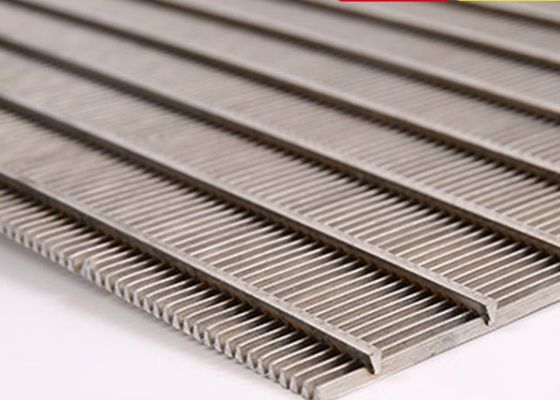

Large Image :  Stainless steel 316L 6m Johnson V Wire Screen Filter 1.5*2.0mm 2*3mm

Product Details:
Place of Origin: China
Brand Name: Velp
Certification: SGS CE ISO9002 BV
Model Number: Wedge wire screen-4
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: USD 10-20 Per pcs
Packaging Details: Wooden Case / Iron Pallet + Bubble Film +Waterproof Paper +Safety Belts
Delivery Time: 15 days
Payment Terms: MoneyGram, Western Union, T/T, L/C
Supply Ability: 2000 pcs per week

Stainless steel 316L 6m Johnson V Wire Screen Filter 1.5*2.0mm 2*3mm

Description
Name: Stainless Steel V Wedge Wire Johnson Sieve Pipe Screen Filter Tube Material: Stainless Steel 201 304 316L
Wire Wrap Size: 1.5*2.0mm 2*3mm 2.2*3.5mm 3*5mm Out Diameter: 28mm--600mm
Length: Up To 6m Or As Client Requirements After Sale Service: Video Technical Support,online Support
Support Profile: Flat,triangle Wire,round Wire, Trapezoid Wire End Type: Standard Type,end Ring Type Flange Type,threaded Type
High Light:

Stainless Steel 316L V Wire Screen Filter

,

6m Johnson V Wire Screen Filter

,

V Wire Screen Filter 1.5*2.0mm

Stainless Steel V wedge wire johnson sieve pipe screen filter tube





Johnson sieve pipe screen filter tube basic information



Wedge wire also called wedge wire screen, is mainly made of stainless steel.And wedge wire products include wedge wire nozzle.cylinder,support grid and lateral assemblies.The size of the pores on the one side is smaller than the pores on the other side.So the wedge wire can greatly filter something from the small pore side to the large pore side without clogging.We can design the flow direction and shape to meet the application requirements.What is more.We can customized the wedge wire filter element such as filter tube,filter basket based on the clients requirements.



Johnson water well filter screen specification



Material Stainless steel 304 304L 316 316L,hastelloy steel,nickle alloy steel or other alloy steel
Wedge wire

Width:1.5 mm 1.8mm  2.3mm  3.0mm  3.3mm  3.7mm

Height:2.2mm  2.5mm 2.7mm  3.6mm  4.3mm  4.7mm  5.6mm  6.3mm  7.0mm

Support rod

Width:2.3mm  3.0mm  3.3mm  3.7mm

Height:2.7mm  3.6mm  4.7mm  5.6mm  6.3mm

Round : from 2.5mm---6.0mm

Note  Other specifications available as per request
Support profile  Flat,triangle wire,round wire,trapezoid wire
Length   Up to 6 meters
Diameter   From 25mm to 1200mm
End type  Standard type,end ring type,flange type,threaded type
Characteristics Strong solid structure,High open area, accurate slot dimensions



Johnson water well filter screen benefits



* High quality steel for high strength

* High filtering efficiency without clogging

* Various types and sizes for choice

* Corrosion and rust resistance

* Easy installation and replacement

* Durable and long service life



Johnson water well filter screen advantages



1. A continuous slot opening which significantly increases the available open area.thus providing greater access to the water bearing zone.

2. A V shaped profile wire which avoids clogging and ensures and uninterrupted flow.

3. A uniform and efficient well development due to the continuous slot opening.

4. Ladder like wire welded screens have a strong structure and high open area,as well as accurate slot dimension.

5. Ladder like wire welded screens have the features of easy backwashing,last long,safety and reliability as well as low comprehensive cost.



Johnson water well filter screen application



Architecture and construction

Food and beverage screens

OEM screen components

Refining and petrochemical

Waste water treatment

Water well and oil well

Coal and mine

Chemical industry

Pharmacy

Metallurgy

Coal mining

Environmental protection

Stainless steel 316L 6m Johnson V Wire Screen Filter 1.5*2.0mm 2*3mm 0

Stainless steel 316L 6m Johnson V Wire Screen Filter 1.5*2.0mm 2*3mm 1

Stainless steel 316L 6m Johnson V Wire Screen Filter 1.5*2.0mm 2*3mm 2

Stainless steel 316L 6m Johnson V Wire Screen Filter 1.5*2.0mm 2*3mm 3
