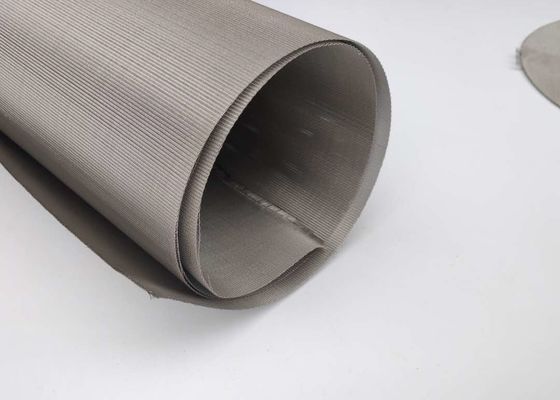

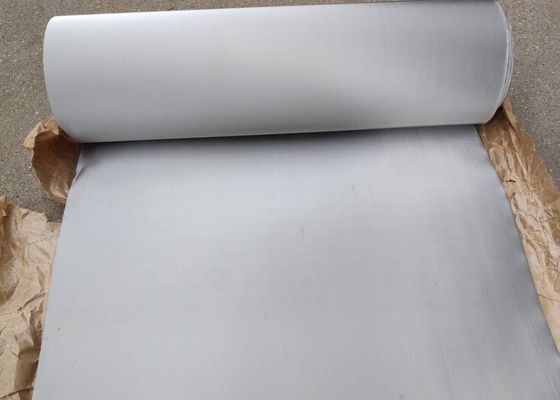

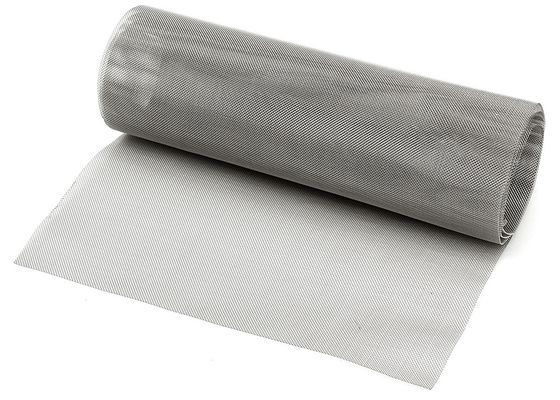

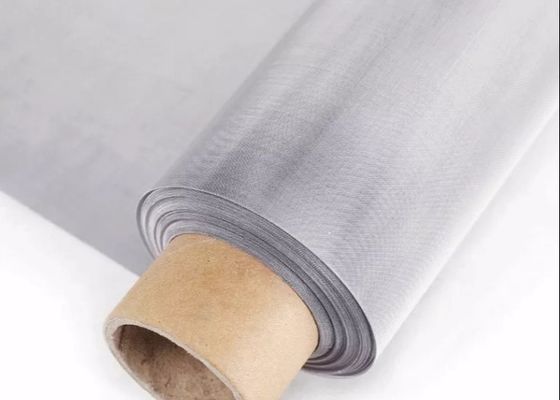

304 Stainless Steel Dutch Woven Mesh Filter Belt 1x30m

Large Image : 304 Stainless Steel Dutch Woven Mesh Filter Belt 1x30m

Product Details:

Place of Origin:	China
Brand Name:	Velp
Certification:	SGS CE ISO9002 BV
Model Number:	SS mesh -20

Payment & Shipping Terms:

Minimum Order Quantity:	10sqm
Price:	USD10-USD20/SQM
Packaging Details:	Wooden Case / Iron Pallet + Bubble Film +Waterproof Paper +Safety Belts
Delivery Time:	15 days
Payment Terms:	MoneyGram,Western Union,T/T,L/C
Supply Ability:	2000 sqm per week

Contact Now

304 Stainless Steel Dutch Woven Mesh Filter Belt 1x30m

Description

Name:	Stainless Steel Reversed Twill Dutch Woven Mesh Filter Belt For Oil Filter	Material:	302 304 304L 316 316L Etc
Specification:	4 Mesh,6mesh 8mesh,100 Mesh ,400 Mesh	Roll Size:	115m 130m 0.91430m 1.530m
Package:	Kraft,plastic Cloth,wooden Pallets	Usage:	Screening,filter,mud Mesh,chemical Fiber,screen Filters
Feature:	Resistance Corrosion,filter, Acid ,alkali,long Service Life	Weave Way:	Plain Weave, Twill Weave, Plain Dutch Weave,twill Dutch Weave
Highlight:	304 wire mesh 115m , stainless steel filter mesh 115m , 2800 mesh stainless steel filter mesh

304 Wire 2800 Mesh Stainless Steel Filter Mesh

Product Specifications

Name	Stainless Steel Reversed Twill Dutch Woven Mesh Filter Belt For Oil Filter
Material	302, 304, 304L, 316, 316L etc
Specification	4 mesh, 6 mesh, 8 mesh, 100 mesh, 400 mesh
Roll Size	1×15m, 1×30m, 0.914×30m, 1.5×30m
Package	Kraft, plastic cloth, wooden pallets
Usage	Screening, filter, mud mesh, chemical fiber, screen filters
Feature	Resistance corrosion, filter, acid, alkali, long service life
Weave Way	Plain weave, twill weave, plain dutch weave, twill dutch weave

Detailed Specifications

Material	SS wire 304, 316, 304L, 316L etc
Wire Diameter	0.018-2.0mm
Mesh Count	1-2800 mesh
Woven Style	Plain weave, twill weave, satin weave
Packing	Inner kraft, outside plastic cloth, put into wooden pallet or case
Application	Screening and filtering, mud mesh in petroleum industry, screen filter

Key Benefits

Widest range filtration, from over 6 inch aperture down to 1 micron nominal
High open area/flow rate
Closely controlled, accurate apertures
Smooth surface with no sharp edges, burrs or acute angles
Very high temperature tolerance (variable according to metal selected)
Usable under high pressure
Flexible and durable
Ideal for forming rigid concave/convex shapes
Special aperture requirements can be met without high tooling costs
Self-supporting structure
Stable under tension
Corrosion, abrasion and heat resistance
Hygienic characteristics suitable for food and pharmaceutical industries

Weave Style Specifications

Plain Weave:

Mesh	Wire Diameter (mm)	Opening (mm)	Material (AISI)
7×7	1.0	2.63	304 or 316
10×10	0.6	1.94	304 or 316
12×12	0.5	1.62	304 or 316
16×16	0.4	1.19	304 or 316
18×18	0.35	1.06	304 or 316
20×20	0.35	0.87	304 or 316
24×24	0.26	0.8	304 or 316
30×30	0.3	0.55	304 or 316
35×35	0.17	0.56	304 or 316
40×40	0.23	0.4	304 or 316
50×50	0.2	0.31	304 or 316
60×60	0.15	0.27	304 or 316
70×70	0.12	0.24	304 or 316
80×80	0.13	0.19	304 or 316

Twill Weave:

Mesh	Wire Diameter (mm)	Opening (mm)	Material (AISI)
250×250	0.04	0.063	316
300×300	0.04	0.044	316
325×325	0.035	0.043	316L
350×350	0.03	0.033	316L
400×400	0.03	0.033	316L
450×450	0.028	0.028	316L
500×500	0.025	0.026	316L

Dutch Weave:

Mesh	Wire Diameter (mm)	Material (AISI)
12×64	0.58×0.4	304 or 316
24×110	0.36×0.25	304 or 316
14×88	0.5×0.33	304 or 316
30×150	0.23×0.18	304 or 316
40×200	0.18×0.13	304 or 316
50×250	0.14×0.11	304 or 316
80×700	0.1×0.08	304 or 316
165×800	0.071×0.04	304 or 316
165×1400	0.06×0.04	304 or 316
200×1800	0.05×0.032	304 or 316
825×2300	0.035×0.025	316L
400×2800	0.03×0.02	316L
