Stainless Steel SPL Oil Filter Disc 40mm 65mm OD

Large Image : Stainless Steel SPL Oil Filter Disc 40mm 65mm OD

Product Details:

Place of Origin:	China
Brand Name:	Velp
Certification:	SGS CE ISO9002 BV
Model Number:	Filter Mesh-19

Payment & Shipping Terms:

Minimum Order Quantity:	5pcs
Price:	USD1-USD2/PCS
Packaging Details:	Wooden Case / Iron Pallet + Bubble Film +Waterproof Paper +Safety Belts
Delivery Time:	15 days
Payment Terms:	MoneyGram,Western Union,T/T,L/C
Supply Ability:	2000 pcs per week

Contact Now

Stainless Steel SPL Oil Filter Disc 40mm 65mm OD

Description

Name:	Round Stainless Steel Oil Filter Disc SPL Filter Disc	Material:	Stainless Steel,black Iron,monel,inconel,brass,copper
Thickness:	0.35mm-8mm	Shape:	Round,square,rectangular,oval, As Your Requirements
Feature:	Corrosion Resistance,Alkali And Acid Resistance,easy To Install.	Sample:	Available
Technique:	Woven	Application:	Kinds Filtration Industry
Highlight:	Round SPL Stainless Steel Filter Disc , 201 202 Stainless Steel Oil Filter , Stainless Steel Oil Filter Disc OD 40mm

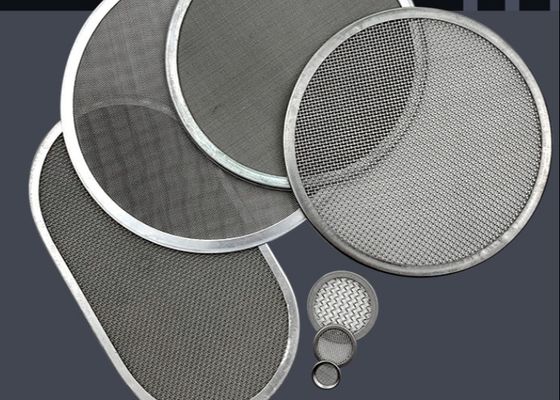

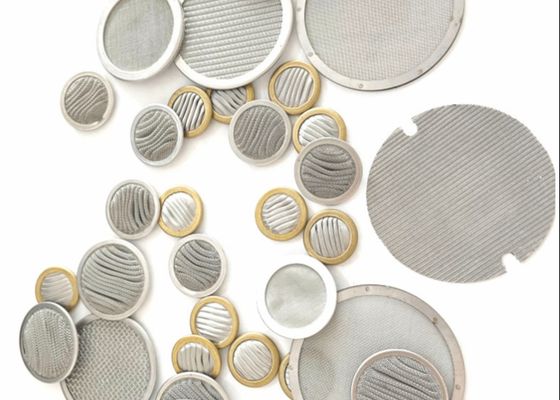

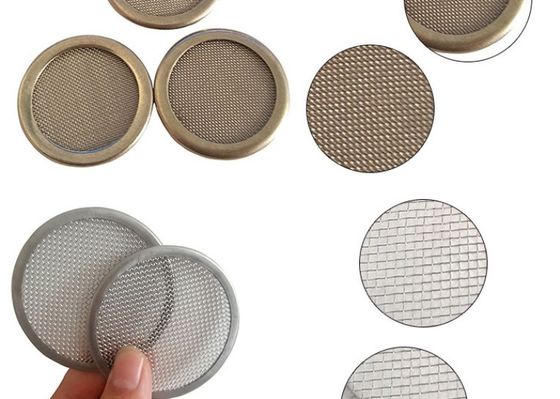

Round SPL 201/202 Stainless Steel Oil Filter Disc (OD40mm-65mm)

Product Specifications

Attribute	Value
Name	Round Stainless Steel Oil Filter Disc SPL Filter Disc
Material	Stainless steel, black iron, monel, inconel, brass, copper
Thickness	0.35mm-8mm
Shape	Round, square, rectangular, oval (customizable)
Feature	Corrosion resistance, alkali and acid resistance, easy to install
Sample	Available
Technique	Woven
Application	Various filtration industries

Product Description

The SPL filter disc is available in both unbounded and edged variants. Unbounded filter discs can be directly processed into required shapes using special molds, while edged filter discs undergo additional shaping processes.

Key Specifications

Material Options: Stainless steel (201, 202, 304, 304L, 316, 316L, 321), copper alloys, nickel alloys, aluminum
Mesh Count: 20-363 mesh (standard or custom)
Properties: Large filtering area, high compressive strength, temperature resistance, durable in harsh conditions

Technical Specifications

Type	Nominal Diameter (mm)	Rated Flow (L/min)	Filter Disc Size (mm)
SPL-15	15	2	20/40
SPL-25	25	5	30/65
SPL-32	32	8	-
SPL-40	40	12	45/90
SPL-50	50	6020	60/125
SPL-65	65	30	-
SPL-80	80	50	70/155
SPL-100	100	80	-
SPL-125	125	120	90/175
SPL-150	150	180	-
SPL-200	200	320	-

Key Features

Excellent anti-wear properties and rigidity
Withstands high temperatures and harsh conditions
Superior corrosion resistance (acid and alkali)
Precise filtration accuracy
Easy installation and maintenance
Long service life

Applications

Our SPL filter discs are widely used in multiple industries including:

Industrial Filtration: Petroleum, chemical, pharmaceutical, metallurgy, machinery
Liquid Processing: Water treatment, beverage production, sewage disposal
Air Filtration: HVAC systems, corrosive gas filtration
Oil Filtration: Petroleum refining, hydraulic systems, edible oil processing
Agricultural: Microirrigation systems and filters

Product Images
