Reverse Dutch Weave 0.5mm Woven Metal Wire Mesh For Filter Plastic Machinery
Product Specifications
| Attribute |
Value |
| Product name |
Stainless steel woven mesh |
| Material |
Stainless Steel Wire |
| Type |
Woven Wire Mesh |
| Application |
Filters, decoration |
| Technique |
Woven |
| Weave style |
Plain Weave |
| Width |
1m or 1.22m, customized |
| Sample |
Free and Available |
| Size |
Customized Size |
| Thickness |
0.02 ~ 0.5mm or customized, customer requirement |
Stainless Steel Small Hole 300 Mesh Woven Mesh For High Filtration
Many industries require sieving, screening or grading of raw materials or products during production. Woven wire mesh serves as an exceptional filtration medium due to its durability, corrosion resistance, strength, and excellent open areas. We supply stainless steel woven mesh in various specifications for diverse applications.
Product Range
We maintain extensive stock of woven wire stainless steel mesh in rolls, available in mesh counts ranging from 2 mesh (1.6 mm wire diameter) to 500 mesh (0.025 mm wire diameter), providing apertures from 11.1 mm down to 0.025 mm (25 microns). Our inventory includes Type 304 and Type 316 stainless steel mesh in most specifications, along with other materials like mild steel, brass, phosphor bronze, copper, monel, and aluminum.
Types of Weave
Mesh can be woven in several configurations. Plain weave is most common, while twilled weave is available for finer meshes. We also supply plain Dutch and twilled Dutch weaves, which enable ultra-fine filtration down to 0.006 mm (6 microns).
Material Options
Plain steel, stainless steel (304, 316, 316L), aluminum, copper, brass, bronze, etc.
Detailed Specifications
| Mesh/inch |
Wire Diameter (mm) |
Aperture (mm) |
Mesh/inch |
Wire Diameter (mm) |
Aperture (mm) |
| 2mesh |
1.80 |
10.90 |
60mesh |
0.15 |
0.273 |
| 3mesh |
1.60 |
6.866 |
70mesh |
0.14 |
0.223 |
| 4mesh |
1.20 |
5.15 |
80mesh |
0.12 |
0.198 |
| 5mesh |
0.91 |
4.17 |
90mesh |
0.11 |
0.172 |
| 6mesh |
0.80 |
3.433 |
100mesh |
0.10 |
0.154 |
| 8mesh |
0.60 |
2.575 |
120mesh |
0.08 |
0.132 |
| 10mesh |
0.55 |
1.990 |
140mesh |
0.07 |
0.111 |
| 12mesh |
0.50 |
1.616 |
150mesh |
0.065 |
0.104 |
| 14mesh |
0.45 |
1.362 |
160mesh |
0.065 |
0.094 |
| 16mesh |
0.40 |
1.188 |
180mesh |
0.053 |
0.088 |
| 18mesh |
0.35 |
1.060 |
200mesh |
0.053 |
0.074 |
| 20mesh |
0.30 |
0.970 |
250mesh |
0.04 |
0.061 |
| 26mesh |
0.28 |
0.696 |
300mesh |
0.035 |
0.049 |
| 30mesh |
0.25 |
0.596 |
325mesh |
0.03 |
0.048 |
| 40mesh |
0.21 |
0.425 |
350mesh |
0.03 |
0.042 |
| 50mesh |
0.19 |
0.318 |
400mesh |
0.025 |
0.0385 |
Width of Stainless Steel Wire Mesh: 0.6m-8m
Additional Specifications
| Product Name |
Woven Wire Mesh, Wire Cloth |
| Stainless Steel Grade |
304, 304L, 316, 316L, 310s, 904L, 430, etc |
| Special Material Options |
Inconel, Monel, Nickel, Titanium, etc |
| Wire Diameter Range |
0.02 - 6.30mm |
| Hole Size Range |
1 - 3500mesh |
| Weave Types |
Plain Weave, Twill Weave, Dutch or 'Hollander' Weave, Plain Dutch Weave, Twill Dutch Weave, Reverse Dutch Weave, Multiplex Weave |
| Mesh Width |
Standard less than 2000 mm |
| Mesh Length |
30m rolls or cut to length, minimum 2m |
| Mesh Type |
Rolls and sheets are available |
| Production Standards |
ASTM E2016 - 20 |
| Certification |
ISO9001: 2015 |
Key Features
- High filtration efficiency
- High precision
- Food grade material
- Ultra fine mesh options
- Twill weave available
- High wear resistance
- Long service life
- Accurate mesh count
- Uniform structure
- No curl design
- Easy to use and install
- Uniform screen thickness
- Anti-static properties
- Acid and alkali resistance
- Excellent corrosion resistance
Applications
Primarily used for filtering and sieving applications across various industries including petroleum, chemical processing, environmental protection, mining, aerospace, paper manufacturing, electronics, and metallurgy.
Packing
To ensure surface protection during transit, we typically pack 200 micro stainless steel wire mesh with:
Paper pipe inside the mesh → waterproof paper → moisture-proof paper → larger paper pipe → poly-wood carton.
Custom packaging solutions available upon request.

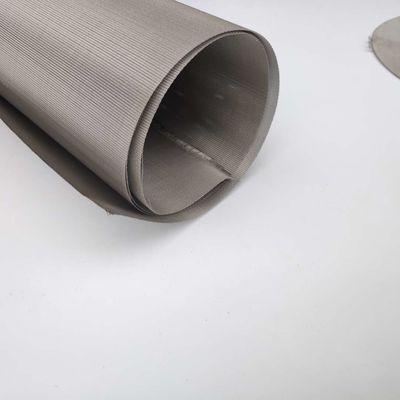

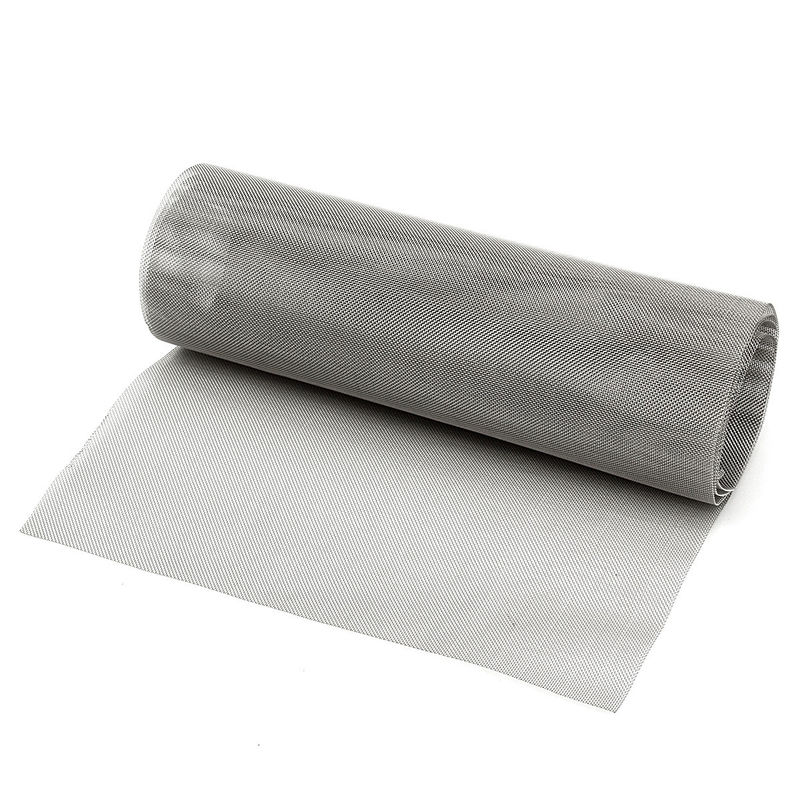

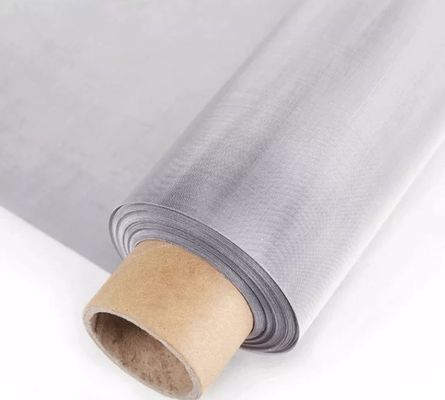

Product Images
