Galvanized Steel Anti-Slip Safety Grating Diamond Hole Walkway Plank

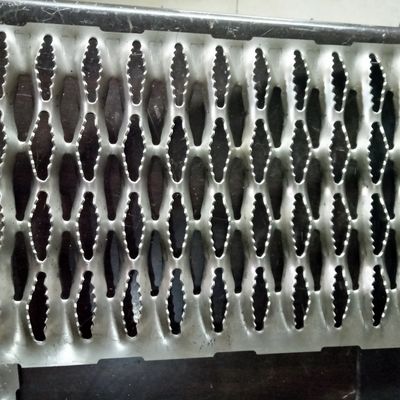

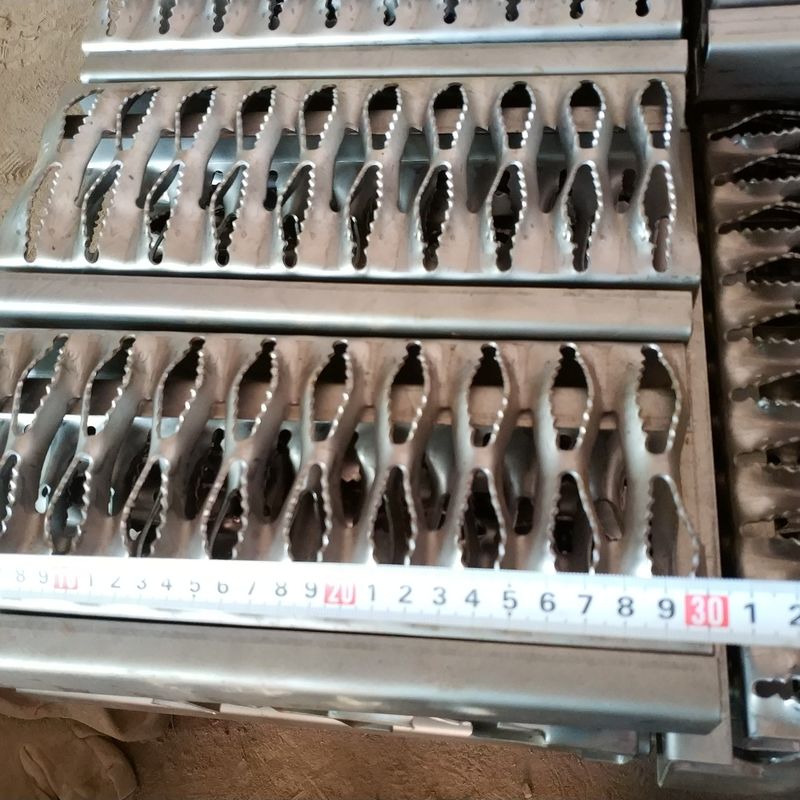

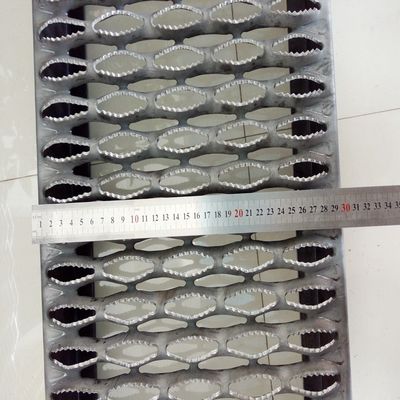

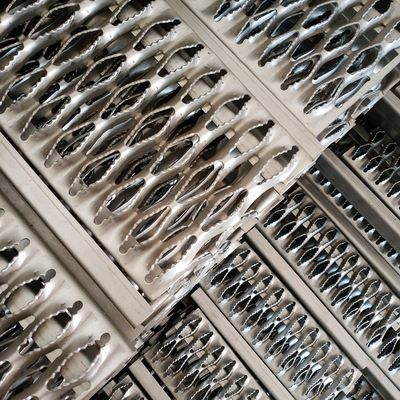

Large Image : Galvanized Steel Anti-Slip Safety Grating Diamond Hole Walkway Plank

Product Details:

Place of Origin:	Hebei,China.
Brand Name:	VELP
Certification:	SGS
Model Number:	01

Payment & Shipping Terms:

Minimum Order Quantity:	10pieces
Price:	USD10-USD20/SQM
Packaging Details:	safety belts+pvc film+iron pallet
Delivery Time:	8-15 workdays
Payment Terms:	L/C,T/T
Supply Ability:	20000pieces per month

Contact Now

Galvanized Steel Anti-Slip Safety Grating Diamond Hole Walkway Plank

Description

Product Name:	Safety Grating Panel	Material:	Steel,aluminum,Stainless Steel,galvanized Sheet.
Thickness:	5mm-15mm Customized	Width:	4-3/4",9-1/2",and Can Be Customized
Surface:	Hot Dip Galvanized,galvainzed,polished.	Advantage:	Corrosion Resistance,Beautiful,Acid-resisting,Easy Install And Long Life
Technique:	Perforated	Color:	Silver, Can Be Customized All Colors
Standard:	DIN,AISI	Length:	Customer's Demand
Highlight:	walkway galvanized grip strut safety grating , 10 gauge grip strut safety grating , antislip diamond grip strut

Antislip Grip Strut Safety Grating Diamond Hole Galvanized Steel 10 Gauge Walkway Plank

Product Specifications

Attribute	Value
Product name	Safety Grating panel
Material	Steel, aluminum, Stainless Steel, galvanized sheet
Thickness	5mm-15mm (customized)
Width	4-3/4", 9-1/2" (customizable)
Surface	Hot dip galvanized, galvanized, polished
Advantage	Corrosion resistance, beautiful, acid-resisting, easy install and long life
Technique	Perforated
Color	Silver (custom colors available)
Standard	DIN, AISI
Length	Custom length available

Product Overview

GRIP STRUT features a slip-resistant diamond surface ideal for safety applications where mud, ice, snow, oil, and detergents create hazardous walking conditions. This one-piece construction product offers lightweight durability with aggressive, highly slip-resistant surfaces for enhanced safety.

Material Specifications

Material	hot-rolled, cold-rolled, galvanized sheet, aluminum, stainless steel sheet
Thickness	2.0mm-5.0mm
Width	≤1000mm
Length	≤4000mm
Surface treatment	Electro-galvanized, hot-dip galvanized, polishing
Holes type	Alligator mouth type, round convex type, tear-type, bridge-type hole
Processing procedure	Raw materials → CNC molding → bending → welding → forming → packaging

Standard Dimensions

Plank Widths	Channel Depths
2 Diamond - 4-3/4" wide	14 gauge Steel - 1-1/2", 2", 2-1/2"
3 Diamond - 7" wide	12 gauge Steel - 1-1/2", 2", 2-1/2", 3"
4 Diamond - 9-1/2" wide	12 gauge (.080) Aluminum - 2"
5 Diamond - 11-3/4" wide	10 gauge (.100) Aluminum - 2"
8 Diamond - 18-3/4" wide	16 gauge Stainless Steel - 2"
10 Diamond - 24" wide
Length: 10'-0 and 12'-0 (custom length available up to 24'-0")

Key Features and Benefits

No rivets or pressure joints to break or loosen
Sturdy construction provides heavy load-carrying capacity with minimal deflection
Rugged durability with longer-lasting performance
Fast and simple installation
Lightweight planks for easy handling
Can be installed by a single worker
Flexible installation options: bolted, clamped, or welded

Applications

Modern Architecture & Design:

Municipal furniture, outdoor furniture, billboards, decorative grilles, lighting covers, and household equipment.

White Goods Components:

Cooling bars, draining boards, washing machine filters, kitchen equipment, and grill racks.

Building Construction:

Building cladding, wall facades, ceilings, balustrades, gates, fences, and ventilation systems.

Catwalks & Safety:

Ideal for safety gratings that serve as lightweight, economical flooring with minimal maintenance. Improves safety by reducing slip hazards from ice, moisture, and oil while allowing light transmission.

Packaging

Standard packaging includes iron pallet with safety belts and PVC films. Custom packaging options available.
