304 Stainless Steel Woven Knitted Wire Mesh Filter for Gas Liquid

Large Image : 304 Stainless Steel Woven Knitted Wire Mesh Filter for Gas Liquid

Product Details:

Place of Origin:	China
Brand Name:	Velp
Certification:	SGS CE ISO9002 BV
Model Number:	Knitted mesh

Payment & Shipping Terms:

Minimum Order Quantity:	50sqm
Price:	USD1-USD2/PCS
Packaging Details:	Wooden Case / Iron Pallet + Bubble Film +Waterproof Paper +Safety Belts
Delivery Time:	15 days
Payment Terms:	MoneyGram,Western Union,T/T,L/C
Supply Ability:	2000 sqm per week

Contact Now

304 Stainless Steel Woven Knitted Wire Mesh Filter for Gas Liquid

Description

Product Name:	304 Stainless Steel Woven Knitted Wire Mesh Copper Gas Liquid Filter Fabric Mesh	Material:	Monel,SS 201 202 301 302 304 304L,316,316L,brass,copper,metal Alloys
Wire Diameter:	0.1mm--0.55mm	Filtration Grades:	Standard,high Efficiency,strong Penetration,damping
Usage:	Oil Gas Separation,oil Water Separation,sealing Components	Advantages:	Low Resistance, Ventilation Systems High,safe,strong,long Service Life
Type:	Fine Mesh,standard Mesh,coarse Mesh,super-coarse Mesh	Mesh Type:	Round Wire,flat Wire,mono Filament,multi Filament,flattened Type,ginning Type
Service:	Fast Delivery,factory Price, Quality Standard	Other Mesh:	Wedge Wire Mesh,sintered Metal Mesh,copper Wire Mesh
Highlight:	woven knitted wire mesh filter , 304 ss knitted wire mesh filter , gas liquid knitted filter wire mesh

Woven Knitted Wire Mesh Filter 304 Stainless Steel Copper Gas Liquid Fabric

Product Specifications

Product name:

304 stainless steel woven knitted wire mesh copper gas liquid filter fabric mesh

Material:

Monel, SS 201 202 301 302 304 304L, 316, 316L, brass, copper, metal alloys

Wire diameter:

0.1mm--0.55mm

Filtration grades:

Standard, high efficiency, strong penetration, damping

Usage:

Oil gas separation, oil water separation, sealing components

Advantages:

Low resistance, ventilation systems high, safe, strong, long service life

Type:

Fine mesh, standard mesh, coarse mesh, super-coarse mesh

Mesh type:

Round wire, flat wire, mono filament, multi filament, flattened type, ginning type

Product Description

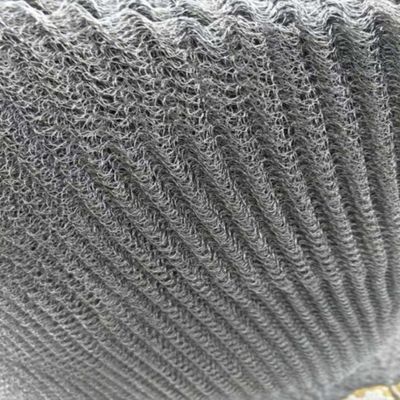

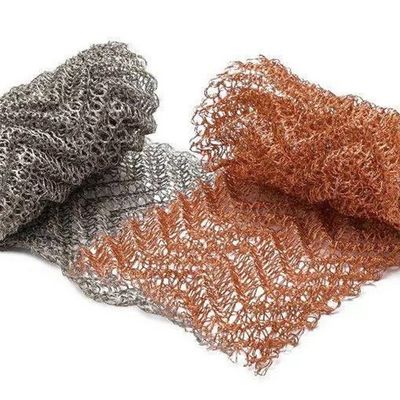

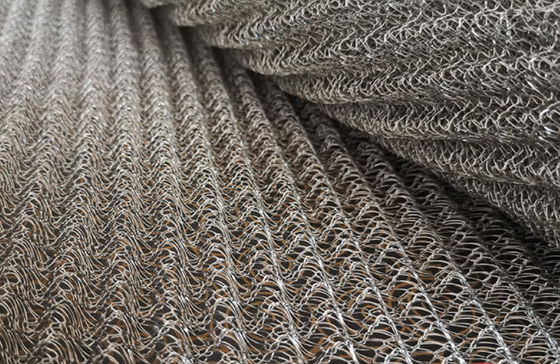

Knitted wire mesh, also known as vapor-liquid filter network, smashing net, defoaming net, or demister wire mesh, is a specialized filtration fabric. It is braided in single strands, multiple strands, or combinations of metal and non-metallic wires. The mesh can be corrugated to various specifications, with customizable opening sizes arranged in large and small hole cross patterns.

Technical Specifications

Item	Description
Product name	Knitted wire mesh
Wire diameter	0.07mm--0.55mm (0.2mm--0.25mm most common)
Wire type	Round or flat wire
Material	Stainless steel wire AISI 201, 202, 301, 304, 304L, 316, 316L, Monel
Mesh braided way	Single strand, multiple strands, braided with metal wire & non-metallic wire
Mesh surface	Flat surface, corrugation surface
Mesh opening	23mm--45mm--12*6mm (customizable)
Knitted wire width	40mm to 600mm in various standard sizes

Key Advantages

Low resistance with repeatable cleaning capability for economical operation
High resistance to acids, alkalis, and elevated temperatures in ventilation systems
Durable construction ensures safety and extended service life

Applications

Chemical industry: Manufacturing wire mesh demisters for gas processing during evaporation and absorption
Separation systems: Oil/gas separation, oil/water separation, gas/liquid separation
Environmental protection: Dust removal, water removal, oil/water separators
Industrial components: Filter elements for vehicles, sealing systems, and shock absorption
