Product Details:
|
Name: | 316 Stainless Steel Filter 300 Microns Plain Twill Woven Screen Mesh For Screening And Filterings | Weave Type: | Plain Weave, Twill Weave,dutch Weave Etc |
---|---|---|---|
Specification: | 4 Mesh,6mesh,8mesh,100 Mesh,400mesh | Package: | Carton Or Wooden Box |
Wire Grade: | 302 304 316 316L | Roll Size: | 1.5*30m 1*30m |
Nickels: | 8% 10% 12% | Width: | 1m 1.2m 1.5m 1.8m 2.0m |
Sample: | A4 Size For Free | ||
High Light: | 316 ss filter mesh,300 microns ss filter mesh,300 microns stainless steel filter mesh |

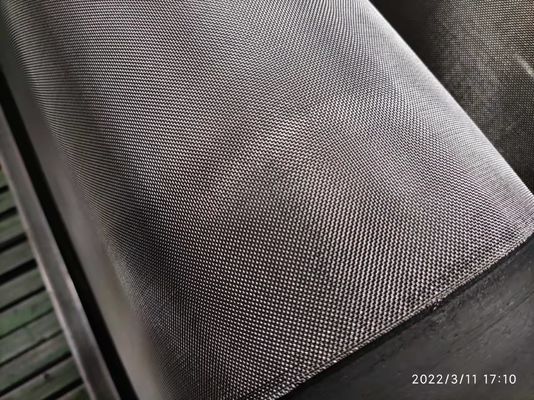

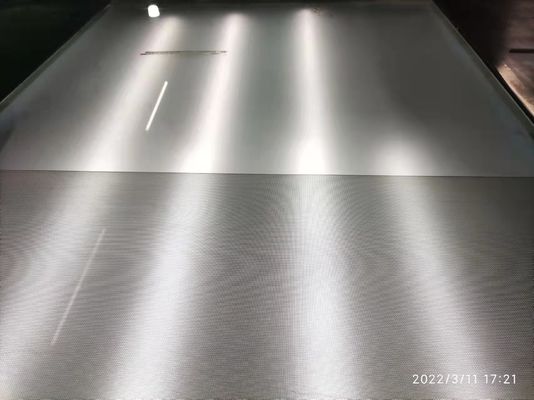

316 stainless steel filter 300 microns plain twill woven screen mesh for screening and filterings
316 stainless steel filter 300 microns plain twill woven screen mesh brief introduction
Stainless steel wire mesh also known as stainless steel wire cloth,stainless steel filter.Stainless steel wire mesh with stainless steel wire woven in accordance with the order of longitude and latitude,mesh can be according to the size of mesh and wire diameter to distinguish the specifications.
316 stainless steel filter 300 microns plain twill woven screen mesh detail specifications
Specification list of stainless steel wire mesh | |||||
Meshes |
Diameter of wire | Width of opening | Opening area % | ||
Inches | mm | Inches | mm | ||
10*10 | 0.047 | 1.2 | 0.053 | 1.34 | 28.1 |
12*12 | 0.041 | 1.0 | 0.042 | 1.06 | 25.4 |
14*14 | 0.032 | 0.8 | 0.039 | 1.52 | 29.8 |
16*16 | 0.028 | 0.7 | 0.035 | 0.89 | 30.5 |
18*18 | 0.02 | 0.5 | 0.036 | 0.91 | 41.1 |
20*20 | 0.023 | 0.58 | 0.027 | 0.68 | 29.2 |
24*24 | 0.014 | 0.35 | 0.028 | 0.71 | 44.2 |
28*28 | 0.01 | 0.25 | 0.026 | 0.66 | 51.8 |
30*30 | 0.013 | 0.33 | 0.02 | 0.5 | 37.1 |
35*35 | 0.012 | 0.3 | 0.017 | 0.43 | 33.8 |
40*40 | 0.014 | 0.35 | 0.011 | 0.28 | 19.3 |
50*50 | 0.009 | 0.23 | 0.011 | 0.28 | 30.3 |
60*60 | 0.0075 | 0.23 | 0.011 | 0.28 | 30.3 |
70*70 | 0.0065 | 0.19 | 0.009 | 0.22 | 30.5 |
80*80 | 0.007 | 0.18 | 0.006 | 0.15 | 19.4 |
90*90 | 0.0055 |
0.14 |
0.006 | 0.15 | 25.4 |
100*100 | 0.0045 | 0.11 | 0.006 | 0.15 | 30.3 |
120*120 | 0.004 | 0.1 | 0.0043 | 0.11 | 26.6 |
150*150 | 0.0026 | 0.066 | 0.0041 | 0.1 | 37.4 |
180*180 | 0.0023 | 0.058 | 0.0032 | 0.08 | 33.5 |
200*200 | 0.002 | 0.05 | 0.003 | 0.076 | 36.0 |
250*250 | 0.0016 | 0.04 | 0.0024 | 0.061 | 36.0 |
300*300 | 0.0012 | 0.03 | 0.0021 | 0.053 | 40.1 |
325*325 | 0.0014 | 0.04 | 0.0017 | 0.043 | 30.0 |
400*400 | 0.001 | 0.025 | 0.0015 | 0.038 | 36.0 |
500*500 | 0.001 | 0.025 | 0.0011 | 0.028 | 25.0 |
635*635 | 0.009 | 0.022 | 0.0006 | 0.015 | 14.5 |
316 stainless steel filter 300 microns plain twill woven screen mesh usage:
Stainless steel wire mesh with extensively excellent properties over other metal materials is widely used within a lot of industries such as food,chemical,filtering,architectural,industrial,aerospace,oil and gas,biology etc.
1. For acid,alkali conditions for screening and filtering,the petroleum industry as mud mesh,chemical fiber industry as the sieve plating.
2. For mining,petroleum,chemical,food,medicine,machinery manufacturing and other industries,
3. Electroplating industry for pickling net,the factory can according to user needs to design the production of various types of products.
