27x96 Galvanized Stucco Diamond Mesh Lath ASTM A653 C847

27x96 Galvanized Stucco Diamond Mesh Lath ASTM A653 C847
27x96 Galvanized Stucco Diamond Mesh Lath ASTM A653 C847
27x96 Galvanized Stucco Diamond Mesh Lath ASTM A653 C847 27x96 Galvanized Stucco Diamond Mesh Lath ASTM A653 C847 27x96 Galvanized Stucco Diamond Mesh Lath ASTM A653 C847 27x96 Galvanized Stucco Diamond Mesh Lath ASTM A653 C847 27x96 Galvanized Stucco Diamond Mesh Lath ASTM A653 C847

Large Image :  27x96 Galvanized Stucco Diamond Mesh Lath ASTM A653 C847

Product Details:
Place of Origin: China
Brand Name: Velp
Certification: SGS CE ISO9002 BV
Model Number: Stucco mesh -1
Payment & Shipping Terms:
Minimum Order Quantity: 5pcs
Price: USD1-USD2/PCS
Packaging Details: Wooden Case / Iron Pallet + Bubble Film +Waterproof Paper +Safety Belts
Delivery Time: 15 days
Payment Terms: MoneyGram,Western Union,T/T,L/C
Supply Ability: 2000 sqm per week
Contact Now

27x96 Galvanized Stucco Diamond Mesh Lath ASTM A653 C847

Description
Product: 27inches By 96 Inches Galvanized Stucco Diamond Mesh Lath Weight: 2.5lbs 3.4lbs 1.75lbs
Standards: ASTM A653 C847 Application: Building Construction,residential Living.
Package: 10 Sheet Per Bundle,50 Bundles Thickness: Diamond Of Dimples Metal Lath 1/8"
Dimples And Grooves Depth: 1/4" Material: G60 Hot Dipped Galvanized Steel
Usage: Reinforcement Of Plaster For Solid Surface.
Highlight:

27inches by 96 inches stucco wire mesh

,

stucco wire mesh galvanized

,

stucco wire lath diamond

27inches By 96 Inches Stucco Wire Mesh Galvanized Diamond Lath
Product Specifications
Attribute Value
Product 27inches by 96 inches galvanized stucco diamond mesh lath
Weight 2.5lbs 3.4lbs 1.75lbs
Standards ASTM A653 C847
Application Building construction, residential living
Package 10 sheet per bundle, 50 bundles
Thickness Diamond of dimples metal lath 1/8"
Dimples and grooves depth 1/4"
Material G60 hot dipped galvanized steel
Usage Reinforcement of plaster for solid surface
Product Description

27inches by 96 inches galvanized stucco diamond mesh lath is designed for exterior wall applications before stucco application. The mesh must be secured with rust-resistant attachments (screws or nails).

Key Features
  • Manufactured from prime quality steel sheets with diamond-shaped openings for superior plaster keying
  • Square ends and smooth parallel edges for easy handling and bending on curved surfaces
  • G60 galvanized finish conforming to ASTM A653 and ASTM C847 standards
  • Available in G90 galvanization upon special request
  • Multiple weight options: 1.75lbs/sq.yd, 2.5lbs/sq.yd, 3.4lbs/sq.yd
Technical Specifications
  • Mesh size: 5/16" × 9/16" (8.3mm × 17.7mm)
  • Standard thickness: 1/8"
  • Depth of dimples and grooves: 1/4"
  • Overall depth: 5/16" (7.9mm)
  • Sheet size: 27" × 96"
  • Number of grooves per sheet: 5

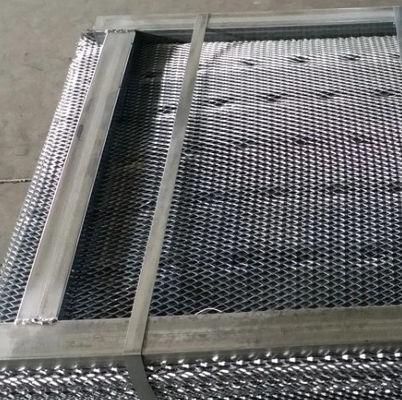

  • Packaging: 10 sheets (20 sq.yds) per bundle, 50 bundles/lift
Product Images

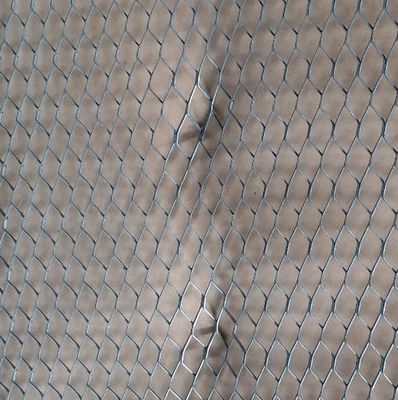

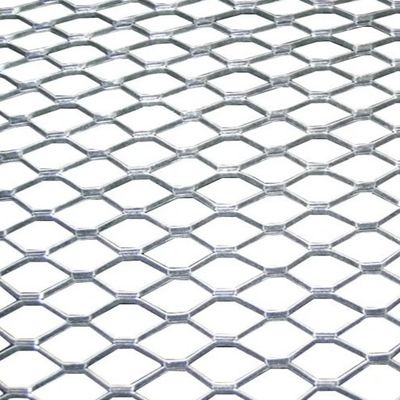

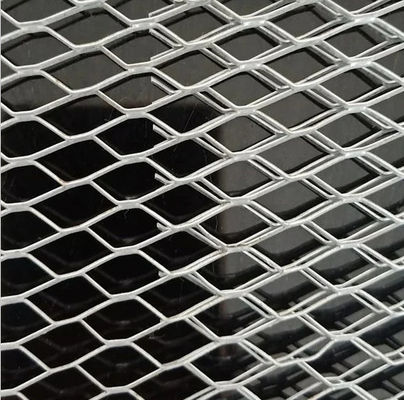

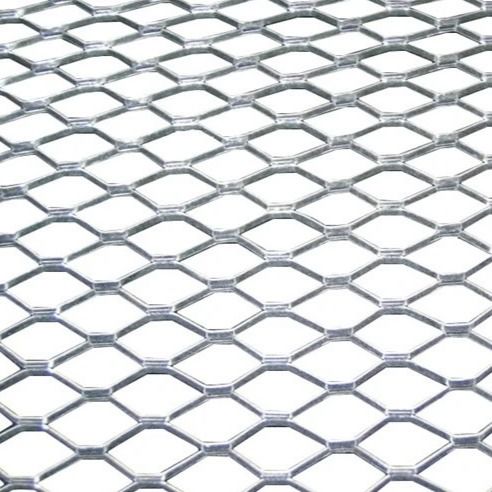

27x96 Galvanized Stucco Diamond Mesh Lath ASTM A653 C847 0
27x96 Galvanized Stucco Diamond Mesh Lath ASTM A653 C847 1
27x96 Galvanized Stucco Diamond Mesh Lath ASTM A653 C847 2
