Product Details:
|
| Name: | Vibrating 65Mn Hooked Crimped Wire Mesh Screens For Quarry And Mining | Material: | 304 316 316L 430 310S 65Mn |
|---|---|---|---|
| Advantages: | High Abrasion And Chemical Corrosion Resistance,long Service Life, | Usage: | High Sieving Rate,high Opening Rate,stable Quality,long Service Life |
| Edge: | Plain,bent,welded | Surface: | Anti Rust Oil Paint |
| Mesh Type: | Square,rectangular,slot,long Slot. | Weave Type: | Double Crimped ,intermediate,crimped Flat Top Crimped |
| Hook Type: | C Or U Hook For 30 Degree--180 Degree | Angle: | 30 Degree 45 Degree 60 Degree |
| High Light: | 65mn crimped woven wire mesh,hooked crimped woven wire mesh,hooked woven vibrating screen mesh |
||

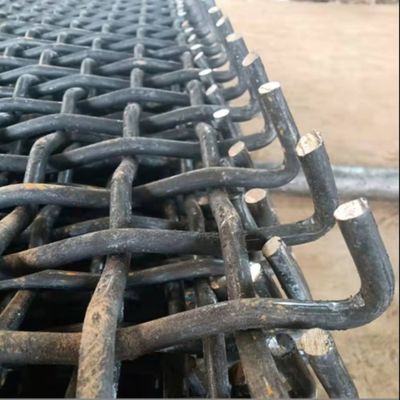

Vibrating 65mn Hooked Crimped Woven Wire Mesh Screens For Quarry And Mining
Vibrating 65Mn hooked crimped woven wire mesh introduction
As the most important part of vibrating screens, a set of high quality crimped mesh with high accuracy,long wear life and high anti impact is the foundation of production quality assurace in all industries above.
Vibrating 65Mn hooked crimped woven wire mesh specifications
| Name | Stone crusher screen mesh |
| Material | Black wire, spring wire, mananese steel wire, 65mn materials |
| Surface | Galvanized or painted |
| Wire diameter | 0.71mm--12.5mm |
| Hole type | Square,rectangular,long slot |
| Feature | Longer life,high adhesion,excellent efficiency of mechanical splice. |
| Advantages | Wear and abrasion,resistant,heavy impact resistant. |
Vibrating 65Mn hooked crimped woven wire mesh specification characteristics:
This weave is also referred to as scalping weave due to deep crimps which lock the wires in place,Warp and shute wire are pre crimped on both sides,thus locking the wires securely in position.This type offers a uniforms aperture during the service life of the screen.
Vibrating 65Mn hooked crimped woven wire mesh applications:
Mainly used as screen mesh,It is widely used in many industries,such as mining screen,quarrying screen,the screen deck,stone crusher,road construction equipment.
