304 316 Stainless Steel Rope Mesh for Bridge Railings

Large Image : 304 316 Stainless Steel Rope Mesh for Bridge Railings

Product Details:

Place of Origin:	China
Brand Name:	VELP
Certification:	SGS
Model Number:	001

Payment & Shipping Terms:

Minimum Order Quantity:	50sqm
Price:	USD5-USD10/sqm
Packaging Details:	wooden case+safety belts
Delivery Time:	5-8 WORKDAYS
Payment Terms:	T/T,L/C,Western Union
Supply Ability:	30000SQM PER MONTH

Contact Now

304 316 Stainless Steel Rope Mesh for Bridge Railings

Description

Product Name:	SS 304 316 Cable Wire Mesh	Material:	AISI 304 316 304L 316L
Usage:	Protecting Mesh, Decorative Wire Mesh	Wire Diameter:	1.2-5mm, Can Be Customized
Color:	The Original Color Of Metal	Warranty:	Quality Guarantee 5 Years
Length:	1m, 2m ,5m, Customsized	Size:	Customized Size
Sample:	Free Sample	MOQ:	50 Square Meter
Highlight:	304 stainless rope mesh , bridge protection stainless rope mesh , 316 ss rope mesh

Steel 304 316 Stainless Rope Mesh Flexible Bridge Protection Handrail

Product Specifications

Product Name	SS 304 316 cable wire mesh
Material	AISI 304 316 304L 316L
Usage	Protecting mesh, decorative wire mesh
Wire Diameter	1.2-5mm (customizable)
Color	Original metal color
Warranty	5 years quality guarantee
Length	1m, 2m, 5m (custom sizes available)
Size	Customizable
Sample	Free sample available
MOQ	50 square meters

Product Overview

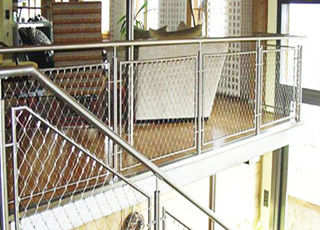

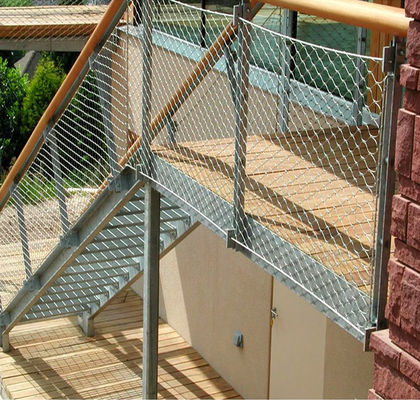

Our stainless steel rope mesh is a versatile solution for zoo enclosures, aviaries, decorative applications, and safety railings including stair railings, balustrades, guardrails, and bridge railings. The mesh provides excellent visibility while maintaining structural integrity, creating transparent yet secure barriers.

Technical Specifications

Cable Diameter	Mesh Opening Size	Normal Break
1/8" (3.2mm)	4x4" (102x102mm)	1600 lbs
1/8" (3.2mm)	3x3" (76x76mm)	1600 lbs
1/8" (3.2mm)	2x2" (51x51mm)	1600 lbs
3/32" (2.4mm)	4x4" (102x102mm)	920 lbs
3/32" (2.4mm)	3x3" (76x76mm)	920 lbs
3/32" (2.4mm)	2x2" (51x51mm)	920 lbs
5/64" (2.0mm)	3x3" (76x76mm)	676 lbs
5/64" (2.0mm)	2x2" (51x51mm)	676 lbs
5/64" (2.0mm)	1-1/2x1-1/2" (38x38mm)	676 lbs
1/16" (1.6mm)	3x3" (76x76mm)	480 lbs
1/16" (1.6mm)	2x2" (51x51mm)	480 lbs
1/16" (1.6mm)	1-1/2x1-1/2" (38x38mm)	480 lbs
1/16" (1.6mm)	1x1" (25.4x25.4mm)	480 lbs
3/64" (1.2mm)	1-1/2x1-1/2" (38x38mm)	270 lbs
3/64" (1.2mm)	1x1" (25.4x25.4mm)	270 lbs
3/64" (1.2mm)	4/5x4/5" (20x20mm)	270 lbs

Applications

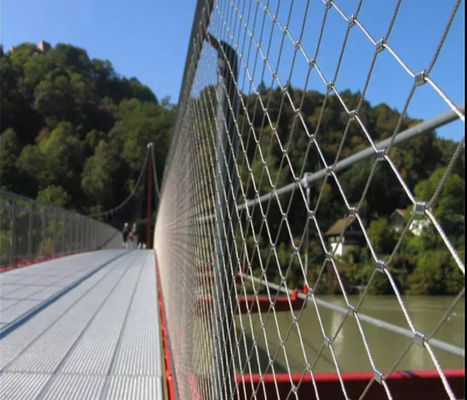

Our flexible stainless steel rope mesh is increasingly used in various applications including slope protection, zoo enclosures, green walls, balustrades, safety barriers, suspension bridge railings, and anti-theft protection systems. Its customizable width and length make it suitable for diverse environments.

Key Features

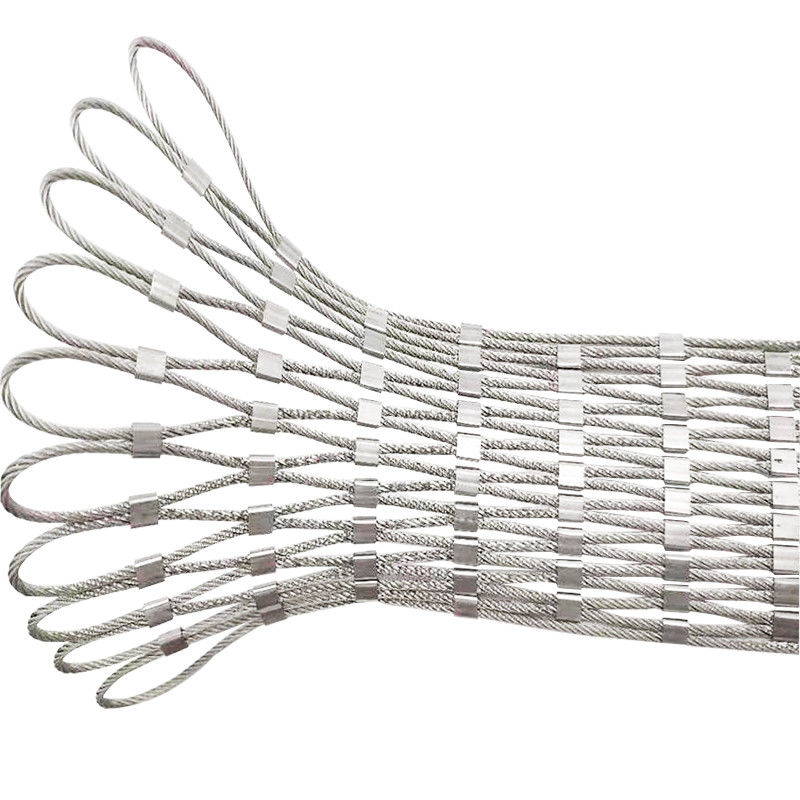

Mesh clipped securely to cables for durability
Customizable hole sizes and diameters
Made to order with static testing available
High strength with excellent flexibility for easy installation
Corrosion-resistant and rust-proof for long-term use
Resistant to rodent damage (100-110,000 PSI tensile strength)
Withstands heavy snow loads and strong winds
Non-toxic, safe, and environmentally friendly

Product Advantages

Superior Flexibility · Fatigue Resistance · Impact Resistance · High Breaking Force · Durable Structure · 30+ Year Lifespan · Natural Appearance · Eco-Friendly · Luxurious Design · Innovative Style

Product Gallery
