Product Details:
|
| Application: | Filters,Woven Wire Mesh,Protecting Mesh | Weave Style: | Dutch/Plain/Twill Weave |
|---|---|---|---|
| Type: | Wire Cloth | Technique: | Woven |
| Material: | SUS Stainless Steel | Wire Diameter: | Requirement |
| Length: | 1-30m, Amd Also Can In Piece | Width: | 1-2meters |
| Mesh: | 1-500 MESH | Packing: | Paper Tube Inside+ Wodden Box +plastic Bag + |
| High Light: | ss302 filter steel mesh,dutch weave filter steel mesh,100 micron stainless steel wire mesh |
||

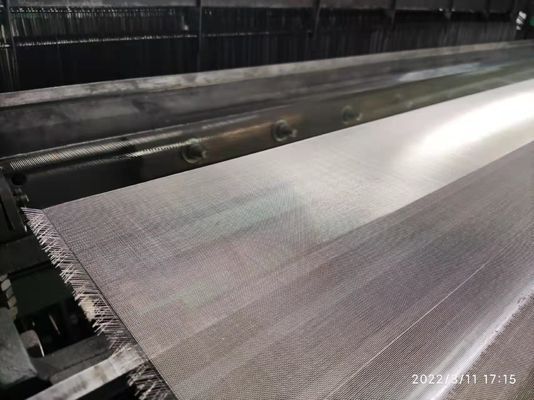

High-Density stainless steel woven mesh, also known as stainless steel wire mesh, square hole woven mesh, stainless steel mesh, is the use of superior stainless steel wire under specific high-temperature process conditions, through a drawing machine to a specific wire warp, and then at a constant temperature, Dust-free and clean workshops are woven by knitting machines.
High-Density stainless steel meshes commonly have 635 mesh, 500 mesh, 450 mesh, 400 mesh, 350 mesh, 325 mesh, 300 mesh, 280 mesh, 250 mesh, 200 mesh, 180 mesh, 150 mesh, 120 mesh, up to 3200 mesh Item.
The width dimension is 0.1~8 meters, and the filtering precision is 5-300μm.
The product materials are SUS302, 304, 304L, 316, 316L, 310, 310S dual-phase steel.
The weaving methods: plain weave, twill weave, dense weave, and special-shaped weave.
Due to the characteristics of stainless steel material, the product has the characteristics of acid resistance, alkali resistance, temperature resistance, and wear resistance.
If you are interested in our product, please contact me as soon as possible.
| Mesh/Inch | Wire Diameter | Aperture | Open Area | Weight(LB)/100 Square Foot | ||
| Inch | MM | Inch | MM | |||
| 1x1 | .080 | 2.03 | .920 | 23.37 | 84.6 | 41.1 |
| 2X2 | .063 | 1.60 | .437 | 11.10 | 76.4 | 51.2 |
| 3X3 | .054 | 1.37 | .279 | 7.09 | 70.1 | 56.7 |
| 4X4 | .063 | 1.60 | .187 | 4.75 | 56.0 | 104.8 |
| 4X4 | .047 | 1.19 | .203 | 5.16 | 65.9 | 57.6 |
| 5X5 | .041 | 1.04 | .159 | 4.04 | 63.2 | 54.9 |
| 6X6 | .035 | .89 | .132 | 3.35 | 62.7 | 48.1 |
| 8X8 | .028 | .71 | .097 | 2.46 | 60.2 | 41.1 |
| 10X10 | .025 | .64 | .075 | 1.91 | 56.3 | 41.2 |
| 10X10 | .020 | .51 | .080 | 2.03 | 64.0 | 26.1 |
| 12X12 | .023 | .584 | .060 | 1.52 | 51.8 | 42.2 |
| 12X12 | .020 | .508 | .063 | 1.60 | 57.2 | 31.6 |
| 14X14 | .023 | .584 | .048 | 1.22 | 45.2 | 49.8 |
| 14X14 | .020 | .508 | .051 | 1.30 | 51.0 | 37.2 |
| 16X16 | .018 | .457 | .0445 | 1.13 | 50.7 | 34.5 |
| 18X18 | .017 | .432 | .0386 | .98 | 48.3 | 34.8 |
| 20X20 | .020 | .508 | .0300 | .76 | 36.0 | 55.2 |
| 20X20 | .016 | .406 | .0340 | .86 | 46.2 | 34.4 |
| 24X24 | .014 | .356 | .0277 | .70 | 44.2 | 31.8 |
| 30X30 | .013 | .330 | .0203 | .52 | 37.1 | 34.8 |
| 30X30 | .012 | .305 | .0213 | .54 | 40.8 | 29.4 |
| 30X30 | .009 | .229 | .0243 | .62 | 53.1 | 16.1 |
| 35X35 | .011 | .279 | .0176 | .45 | 37.9 | 29.0 |
| 40X40 | .010 | .254 | .0150 | .38 | 36.0 | 27.6 |
| 50X50 | .009 | .229 | .0110 | .28 | 30.3 | 28.4 |
| 50X50 | .008 | .203 | .0120 | .31 | 36.0 | 22.1 |
| 60X60 | .0075 | .191 | .0092 | .23 | 30.5 | 23.7 |
| 60X60 | .007 | .178 | .0097 | .25 | 33.9 | 20.4 |
| 70X70 | .0065 | .165 | .0078 | .20 | 29.8 | 20.8 |
| 80X80 | .0065 | .165 | .0060 | .15 | 23.0 | 23.2 |
| 80X80 | .0055 | .140 | .0070 | .18 | 31.4 | 16.9 |
| 90X90 | .005 | .127 | .0061 | .16 | 30.1 | 15.8 |
| 100X100 | .0045 | .114 | .0055 | .14 | 30.3 | 14.2 |
| 100X100 | .004 | .102 | .0060 | .15 | 36.0 | 11.0 |
| 100X100 | .0035 | .089 | .0065 | .17 | 42.3 | 8.3 |
| 110X110 | .0040 | .1016 | .0051 | .1295 | 30.7 | 12.4 |
| 120X120 | .0037 | .0940 | .0064 | .1168 | 30.7 | 11.6 |
| 150X150 | .0026 | .0660 | .0041 | .1041 | 37.4 | 7.1 |
| 160X160 | .0025 | .0635 | .0038 | .0965 | 36.4 | 5.94 |
| 180X180 | .0023 | .0584 | .0033 | .0838 | 34.7 | 6.7 |
| 200X200 | .0021 | .0533 | .0029 | .0737 | 33.6 | 6.2 |
| 250X250 | .0016 | .0406 | .0024 | .0610 | 36.0 | 4.4 |
| 270X270 | .0016 | .0406 | .0021 | .0533 | 32.2 | 4.7 |
| 300X300 | .0051 | .0381 | .0018 | .0457 | 29.7 | 3.04 |
| 325X325 | .0014 | .0356 | .0017 | .0432 | 30.0 | 4.40 |
| 400X400 | .0010 | .0254 | .0015 | .370 | 36.0 | 3.3 |
| 500X500 | .0010 | .0254 | .0010 | .0254 | 25.0 | 3.8 |
| 635X635 | .0008 | .0203 | .0008 | .0203 | 25.0 | 2.63 |
*Alkali and acid resistance.
*Super precision,uniform wire diameter and aperture with extremely low difference.
*Easy to install and clean.
*The detail data can be customized ,such as wire diameter,aperture,thickness and so on.
*Low and high temperature resistance.
Stainless Steel Woven Mesh Applications
Used in marine, pharmaceuticals, food preparation, rubber and plastic, chemical plants,automotive,general industries and so on.
(1) Be used in plastic and rubber processing machinery to ensure a clean and viable extrusion.
(2) Be used in oil industry and cereal sifter.
(3) Be mainly used in the absorption, evaporation and filtration process in petroleum, chemical, medicine, metallurgy, machinery,ship and automobiles to delete the mist drop or liquid foam or used as air filter in cars and trucks.
Woven wire mesh is available on the roll or cut to size.
Provide fine and strict packaging to ensure that the goods will not be damaged.
The usual packing is as the picture showed,or as costomized.
