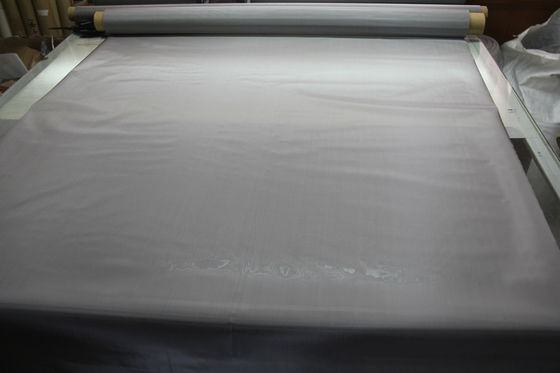

25 Micron Ss304 316 Stainless Steel Filter Wire Mesh Dutch Weave Micronic

25 Micron Ss304 316 Stainless Steel Filter Wire Mesh Dutch Weave Micronic
25 Micron Ss304 316 Stainless Steel Filter Wire Mesh Dutch Weave Micronic
25 Micron Ss304 316 Stainless Steel Filter Wire Mesh Dutch Weave Micronic 25 Micron Ss304 316 Stainless Steel Filter Wire Mesh Dutch Weave Micronic 25 Micron Ss304 316 Stainless Steel Filter Wire Mesh Dutch Weave Micronic 25 Micron Ss304 316 Stainless Steel Filter Wire Mesh Dutch Weave Micronic 25 Micron Ss304 316 Stainless Steel Filter Wire Mesh Dutch Weave Micronic

Large Image :  25 Micron Ss304 316 Stainless Steel Filter Wire Mesh Dutch Weave Micronic

Product Details:
Place of Origin: China
Brand Name: VELP
Certification: SGS
Model Number: 26
Payment & Shipping Terms:
Minimum Order Quantity: 1 roll
Price: dollar 50-300 roll
Packaging Details: wooden case+waterproof paper
Delivery Time: 5-10 work days
Payment Terms: T/T, L/C, Western Union, MoneyGram
Supply Ability: 30000 rolls month

25 Micron Ss304 316 Stainless Steel Filter Wire Mesh Dutch Weave Micronic

Description
Weave Style: Plain/Twill Weave Type: Wire Cloth
Technique: Woven Material: Stainless Steel Wire,304,316
Product Name: SS304 316 Dutch Weave Micronic Stainless Steel Wire Mesh Usage: Oil,filter,chmical Industry
Length: 15m, 30m Per Roll Or As Required. Feature: Anti-corrosion, High Filter, Smooth.
Mesh: 3-635mesh, Common Used Is 500mesh 400mesh 300mesh.
High Light:

micronic stainless steel filter wire mesh

,

25micron stainless steel filter wire mesh

,

25 micron stainless steel wire mesh

Food Grade AISI SUS 304 316 316L 100 150 200 300 400 500 Micron Stainless Steel Filter Wire Mesh



Stainless Steel Mesh Introduction

  Woven wire mesh or woven wire cloth, is woven by machine. It is similar to the process of weaving clothing, but it is made of wire.

  The mesh can be woven in different weave styles. Its purpose is to produce solid and reliable products to adapt to various complex application environments.

  High precision technology makes the production cost of woven wire mesh higher, but it also has a very wide range of uses.

  The main materials are 304 stainless steel wire mesh, 316 stainless steel wire mesh, 310 stainless steel wire mesh, 904L stainless steel wire mesh, 430 stainless steel wire mesh, and other stainless steel grade.

  The most popular ones are 304 stainless steel wire mesh and 316 stainless steel wire mesh, which can be used in most application environments and are not expensive.

  And some special materials are used to meet the high requirements of the use environment, such as Inconel wire mesh, Monel Wire Mesh, Titanium Wire Mesh, Pure Nickel Mesh, and Pure Silver Mesh, etc.

Stainless Steel Woven Mesh Material



Product Name
Woven Wire Mesh, Wire Cloth
Stainless Steel Grade
304, 304L, 316, 316L, 310s, 904L, 430, etc
Special Material Options
Inconel, Monel, Nickel, Titanium, etc
Wire Diameter Range
0.02 - 6.30mm
Hole Size Range
1 - 3500mesh
Weave Types
Plain Weave
Twill Weave
Dutch or 'Hollander' Weave
Plain Dutch Weave
Twill Dutch Weave
Reverse Dutch Weave
Multiplex Weave
Mesh Width
Standard less than 2000 mm
Mesh Length
30m rolls or cut to length, minimum 2m
Mesh Type
Rolls and sheets are available
Production Standards
ASTM E2016 - 20
Certification
ISO9001: 2015



  VELP Metal Wire Mesh can provide many different weaves to meet different application needs.the weave styles mainly depend on the mesh and wire diameter specifications of the woven mesh. Below are the show of some common styles we weave here.





Mesh/Inch Wire Diameter Aperture Open Area Weight(LB)/100 Square Foot
Inch MM Inch MM
1x1 .080 2.03 .920 23.37 84.6 41.1
2X2 .063 1.60 .437 11.10 76.4 51.2
3X3 .054 1.37 .279 7.09 70.1 56.7
4X4 .063 1.60 .187 4.75 56.0 104.8
4X4 .047 1.19 .203 5.16 65.9 57.6
5X5 .041 1.04 .159 4.04 63.2 54.9
6X6 .035 .89 .132 3.35 62.7 48.1
8X8 .028 .71 .097 2.46 60.2 41.1
10X10 .025 .64 .075 1.91 56.3 41.2
10X10 .020 .51 .080 2.03 64.0 26.1
12X12 .023 .584 .060 1.52 51.8 42.2
12X12 .020 .508 .063 1.60 57.2 31.6
14X14 .023 .584 .048 1.22 45.2 49.8
14X14 .020 .508 .051 1.30 51.0 37.2
16X16 .018 .457 .0445 1.13 50.7 34.5
18X18 .017 .432 .0386 .98 48.3 34.8
20X20 .020 .508 .0300 .76 36.0 55.2
20X20 .016 .406 .0340 .86 46.2 34.4
24X24 .014 .356 .0277 .70 44.2 31.8
30X30 .013 .330 .0203 .52 37.1 34.8
30X30 .012 .305 .0213 .54 40.8 29.4
30X30 .009 .229 .0243 .62 53.1 16.1
35X35 .011 .279 .0176 .45 37.9 29.0
40X40 .010 .254 .0150 .38 36.0 27.6
50X50 .009 .229 .0110 .28 30.3 28.4
50X50 .008 .203 .0120 .31 36.0 22.1
60X60 .0075 .191 .0092 .23 30.5 23.7
60X60 .007 .178 .0097 .25 33.9 20.4
70X70 .0065 .165 .0078 .20 29.8 20.8
80X80 .0065 .165 .0060 .15 23.0 23.2
80X80 .0055 .140 .0070 .18 31.4 16.9
90X90 .005 .127 .0061 .16 30.1 15.8
100X100 .0045 .114 .0055 .14 30.3 14.2
100X100 .004 .102 .0060 .15 36.0 11.0
100X100 .0035 .089 .0065 .17 42.3 8.3
110X110 .0040 .1016 .0051 .1295 30.7 12.4
120X120 .0037 .0940 .0064 .1168 30.7 11.6
150X150 .0026 .0660 .0041 .1041 37.4 7.1
160X160 .0025 .0635 .0038 .0965 36.4 5.94
180X180 .0023 .0584 .0033 .0838 34.7 6.7
200X200 .0021 .0533 .0029 .0737 33.6 6.2
250X250 .0016 .0406 .0024 .0610 36.0 4.4
270X270 .0016 .0406 .0021 .0533 32.2 4.7
300X300 .0051 .0381 .0018 .0457 29.7 3.04
325X325 .0014 .0356 .0017 .0432 30.0 4.40
400X400 .0010 .0254 .0015 .370 36.0 3.3
500X500 .0010 .0254 .0010 .0254 25.0 3.8
635X635 .0008 .0203 .0008 .0203 25.0 2.63



Stainless Steel Woven Mesh Features



Excellent corrosion resistant ability.

Lower thermal expansion coefficient.

High thermal conductivity.

Widely used in chemical.

Seawater desalination equipment.

Uniform screen thickness.



Stainless Steel Woven Mesh Applications



  Perfectly suited for a wide array of architectural and functional purposes, stainless steel wire mesh is used in various industries. The petroleum, chemical environmental protection, mining, aerospace, paper making, electronic, metallurgical, food and pharmaceutical industries all utilize woven wire mesh.



  The above are some of the applications of wire mesh we listed. In fact, woven wire mesh has a seemingly infinite range of applications. Because it has many irreplaceable features and advantages, there can be few industries where wire mesh does not have a part to play.



Packing

  Woven wire mesh is available on the roll or cut to size.

  Provide fine and strict packaging to ensure that the goods will not be damaged.

  The usual packing is as the picture showed,or as costomized.

25 Micron Ss304 316 Stainless Steel Filter Wire Mesh Dutch Weave Micronic 025 Micron Ss304 316 Stainless Steel Filter Wire Mesh Dutch Weave Micronic 1

25 Micron Ss304 316 Stainless Steel Filter Wire Mesh Dutch Weave Micronic 225 Micron Ss304 316 Stainless Steel Filter Wire Mesh Dutch Weave Micronic 3
