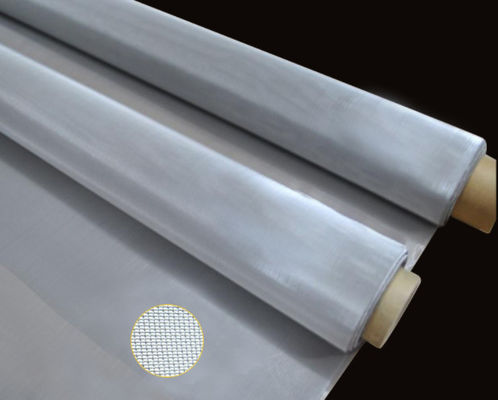

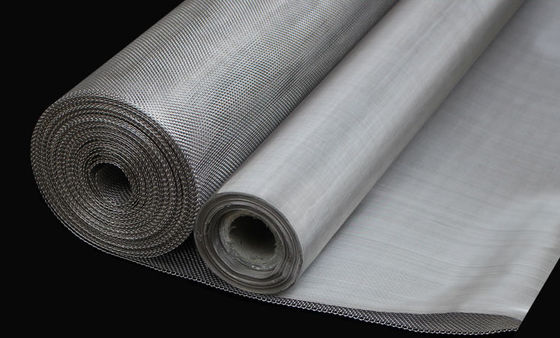

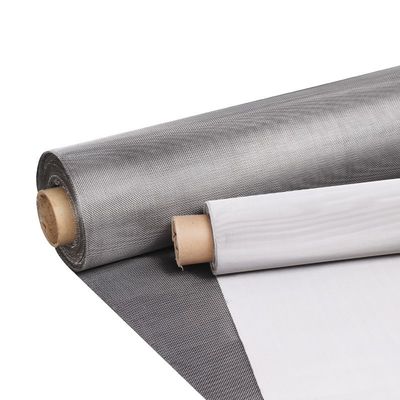

Aisi 316 316l 304 Stainless Steel Wire Mesh 30 80 120 Mesh Woven

Aisi 316 316l 304 Stainless Steel Wire Mesh 30 80 120 Mesh Woven
Aisi 316 316l 304 Stainless Steel Wire Mesh 30 80 120 Mesh Woven
Aisi 316 316l 304 Stainless Steel Wire Mesh 30 80 120 Mesh Woven Aisi 316 316l 304 Stainless Steel Wire Mesh 30 80 120 Mesh Woven Aisi 316 316l 304 Stainless Steel Wire Mesh 30 80 120 Mesh Woven Aisi 316 316l 304 Stainless Steel Wire Mesh 30 80 120 Mesh Woven Aisi 316 316l 304 Stainless Steel Wire Mesh 30 80 120 Mesh Woven

Large Image :  Aisi 316 316l 304 Stainless Steel Wire Mesh 30 80 120 Mesh Woven

Product Details:
Place of Origin: China
Brand Name: VELP
Certification: SGS
Model Number: 26
Payment & Shipping Terms:
Minimum Order Quantity: 1 roll
Price: dollar 50-300 roll
Packaging Details: wooden case+waterproof paper
Delivery Time: 5-10 work days
Payment Terms: T/T, L/C, Western Union, MoneyGram
Supply Ability: 30000 rolls month

Aisi 316 316l 304 Stainless Steel Wire Mesh 30 80 120 Mesh Woven

Description
Product Name: Aisi 304 316 316l Stainless Steel 30 50 80 100 120 Mesh Woven Wire Mesh Net Application: Filters, Chemistry.
Material: Stainless Steel Wire 304 316 304L 316L 403 409 Advantage: Large Stock, Fast Delivery, Best Quality
Wire Diameter: 0.1 - 1mm Width: In Roll: 1.5m 1m, 0.5m, In Piece Can Be Customized.
Technique: Woven Mesh Cloth Length: In Roll 30m, 20m, 15m, Or In Piece As Required.
High Light:

aisi 304 stainless steel wire mesh

,

woven 304 stainless steel wire mesh

,

aisi 316 stainless steel wire mesh

Aisi 304 316 316l Stainless Steel 30 50 80 100 120 Mesh Woven Wire Mesh Net



Stainless Steel Mesh Introduction

  High-Density stainless steel woven mesh, also known as stainless steel wire mesh, square hole woven mesh, stainless steel mesh, is the use of superior stainless steel wire under specific high-temperature process conditions, through a drawing machine to a specific wire warp, and then at a constant temperature, Dust-free and clean workshops are woven by knitting machines.

  High-Density stainless steel meshes commonly have 635 mesh, 500 mesh, 450 mesh, 400 mesh, 350 mesh, 325 mesh, 300 mesh, 280 mesh, 250 mesh, 200 mesh, 180 mesh, 150 mesh, 120 mesh, up to 3200 mesh Item.

  The width dimension is 0.1~8 meters, and the filtering precision is 5-300μm.

  The product materials are SUS302, 304, 304L, 316, 316L, 310, 310S dual-phase steel.

  The weaving methods: plain weave, twill weave, dense weave, and special-shaped weave.

  Due to the characteristics of stainless steel material, the product has the characteristics of acid resistance, alkali resistance, temperature resistance, and wear resistance.

  If you are interested in our product, please contact me as soon as possible.

Stainless Steel Woven Mesh Material

Product Name:



Woven Wire Mesh, Wire Cloth

Stainless Steel Grade:



304, 304L, 316, 316L, 310s, 904L, 430, etc

Special Material Options:



Inconel, Monel, Nickel, Titanium, etc

Wire Diameter Range:



0.02 - 6.30mm

Hole Size Range:



1 - 3500mesh

Weave Types:



Plain Weave,Twill Weave,Dutch or 'Hollander' Weave,Plain Dutch Weave Twill Dutch Weave,Reverse Dutch Weave,Multiplex Weave.

Mesh Width:



Standard less than 2000 mm

Mesh Length:



30m rolls or cut to length, minimum 2m

Mesh Type:



Rolls and sheets are available

Production Standards:



ASTM E2016 - 20

Certification:



ISO9001: 2015

Mesh/Inch Wire Diameter Aperture Open Area Weight(LB)/100 Square Foot
Inch MM Inch MM
1x1 .080 2.03 .920 23.37 84.6 41.1
2X2 .063 1.60 .437 11.10 76.4 51.2
3X3 .054 1.37 .279 7.09 70.1 56.7
4X4 .063 1.60 .187 4.75 56.0 104.8
4X4 .047 1.19 .203 5.16 65.9 57.6
5X5 .041 1.04 .159 4.04 63.2 54.9
6X6 .035 .89 .132 3.35 62.7 48.1
8X8 .028 .71 .097 2.46 60.2 41.1
10X10 .025 .64 .075 1.91 56.3 41.2
10X10 .020 .51 .080 2.03 64.0 26.1
12X12 .023 .584 .060 1.52 51.8 42.2
12X12 .020 .508 .063 1.60 57.2 31.6
14X14 .023 .584 .048 1.22 45.2 49.8
14X14 .020 .508 .051 1.30 51.0 37.2
16X16 .018 .457 .0445 1.13 50.7 34.5
18X18 .017 .432 .0386 .98 48.3 34.8
20X20 .020 .508 .0300 .76 36.0 55.2
20X20 .016 .406 .0340 .86 46.2 34.4
24X24 .014 .356 .0277 .70 44.2 31.8
30X30 .013 .330 .0203 .52 37.1 34.8
30X30 .012 .305 .0213 .54 40.8 29.4
30X30 .009 .229 .0243 .62 53.1 16.1
35X35 .011 .279 .0176 .45 37.9 29.0
40X40 .010 .254 .0150 .38 36.0 27.6
50X50 .009 .229 .0110 .28 30.3 28.4
50X50 .008 .203 .0120 .31 36.0 22.1
60X60 .0075 .191 .0092 .23 30.5 23.7
60X60 .007 .178 .0097 .25 33.9 20.4
70X70 .0065 .165 .0078 .20 29.8 20.8
80X80 .0065 .165 .0060 .15 23.0 23.2
80X80 .0055 .140 .0070 .18 31.4 16.9
90X90 .005 .127 .0061 .16 30.1 15.8
100X100 .0045 .114 .0055 .14 30.3 14.2
100X100 .004 .102 .0060 .15 36.0 11.0
100X100 .0035 .089 .0065 .17 42.3 8.3
110X110 .0040 .1016 .0051 .1295 30.7 12.4
120X120 .0037 .0940 .0064 .1168 30.7 11.6
150X150 .0026 .0660 .0041 .1041 37.4 7.1
160X160 .0025 .0635 .0038 .0965 36.4 5.94
180X180 .0023 .0584 .0033 .0838 34.7 6.7
200X200 .0021 .0533 .0029 .0737 33.6 6.2
250X250 .0016 .0406 .0024 .0610 36.0 4.4
270X270 .0016 .0406 .0021 .0533 32.2 4.7
300X300 .0051 .0381 .0018 .0457 29.7 3.04
325X325 .0014 .0356 .0017 .0432 30.0 4.40
400X400 .0010 .0254 .0015 .370 36.0 3.3
500X500 .0010 .0254 .0010 .0254 25.0 3.8
635X635 .0008 .0203 .0008 .0203 25.0 2.63

Aisi 316 316l 304 Stainless Steel Wire Mesh 30 80 120 Mesh Woven 0

Advantages:



1. High open area/flow rate.

2. Closely controlled, accurate apertures.

3. Smooth surface - screening surface has no sharp edges, burrs or acute angles.

4. Very high-temperature tolerance (variable according to metal selected).

5. Usable under high pressure.

6. Flexible - ideal for forming rigid concave / convex shapes.

7. Control of chemical/acid/ corrosion resistance using different metals.

8. Special aperture requirements can be met without high tooling costs.

9. High durability.

10. Self-supporting.



Packing:

  Woven wire mesh is available on the roll or cut to size.

  Provide fine and strict packaging to ensure that the goods will not be damaged.

  The usual packing is as the picture showed,or as costomized.

Aisi 316 316l 304 Stainless Steel Wire Mesh 30 80 120 Mesh Woven 1Aisi 316 316l 304 Stainless Steel Wire Mesh 30 80 120 Mesh Woven 2

Aisi 316 316l 304 Stainless Steel Wire Mesh 30 80 120 Mesh Woven 3Aisi 316 316l 304 Stainless Steel Wire Mesh 30 80 120 Mesh Woven 4
