Stainless Steel Wire Mesh 304 316 316L 30-120 Mesh Woven

Large Image : Stainless Steel Wire Mesh 304 316 316L 30-120 Mesh Woven

Product Details:

Place of Origin:	China
Brand Name:	VELP
Certification:	SGS
Model Number:	26

Payment & Shipping Terms:

Minimum Order Quantity:	1 roll
Price:	USD10-USD20/SQM
Packaging Details:	wooden case+waterproof paper
Delivery Time:	5-10 work days
Payment Terms:	T/T,L/C,Western Union,MoneyGram
Supply Ability:	30000 rolls month

Contact Now

Stainless Steel Wire Mesh 304 316 316L 30-120 Mesh Woven

Description

Product Name:	Aisi 304 316 316l Stainless Steel 30 50 80 100 120 Mesh Woven Wire Mesh Net	Application:	Filters, Chemistry.
Material:	Stainless Steel Wire 304 316 304L 316L 403 409	Advantage:	Large Stock, Fast Delivery, Best Quality
Wire Diameter:	0.1 - 1mm	Width:	In Roll: 1.5m 1m, 0.5m, In Piece Can Be Customized.
Technique:	Woven Mesh Cloth	Length:	In Roll 30m, 20m, 15m, Or In Piece As Required.
Highlight:	aisi 304 stainless steel wire mesh , woven 304 stainless steel wire mesh , aisi 316 stainless steel wire mesh

AISI 304 316 316L Stainless Steel 30-120 Mesh Woven Wire Mesh Net

Product Specifications

Product Name	AISI 304 316 316L Stainless Steel 30 50 80 100 120 Mesh Woven Wire Mesh Net
Application	Filters, chemistry
Material	Stainless Steel wire 304, 316, 304L, 316L, 403, 409
Advantage	Large stock, fast delivery, best quality
Wire Diameter	0.1 - 1mm
Width	In roll: 1.5m, 1m, 0.5m; in piece can be customized
Technique	Woven mesh cloth
Length	In roll: 30m, 20m, 15m; in piece as required

Stainless Steel Mesh Introduction

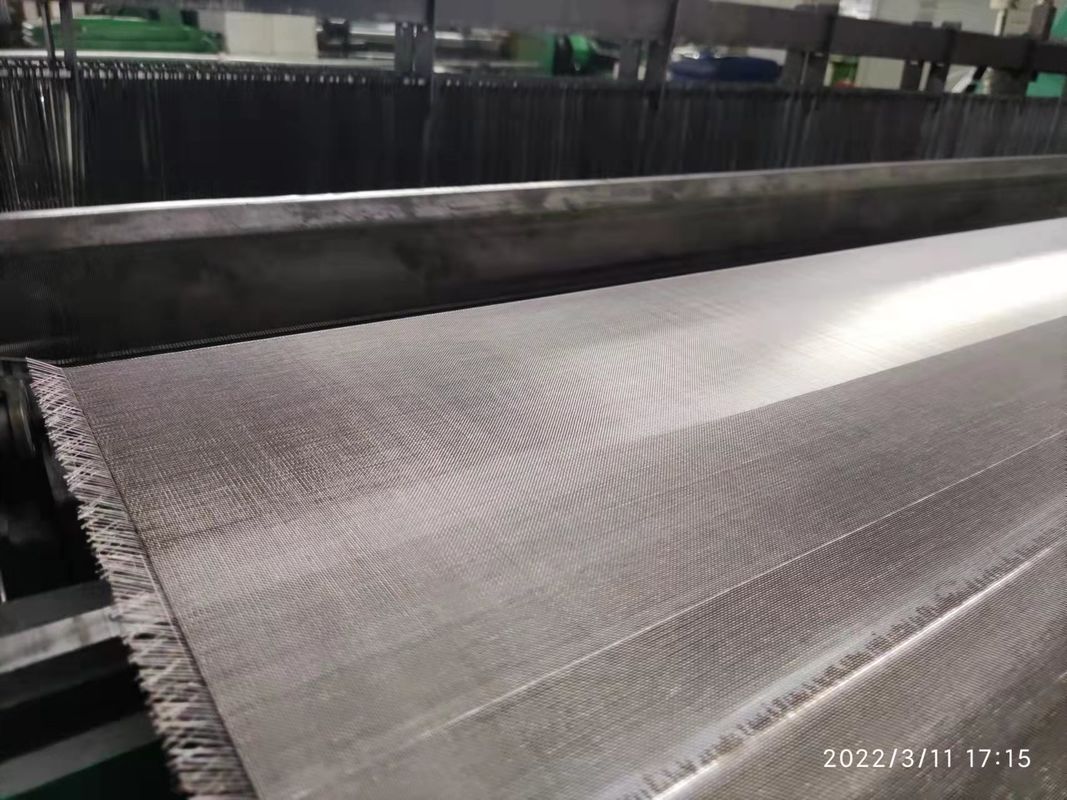

High-density stainless steel woven mesh, also known as stainless steel wire mesh or square hole woven mesh, is manufactured using superior stainless steel wire under specific high-temperature process conditions. The wire is drawn to specific dimensions and then woven by knitting machines in controlled, dust-free environments.

Technical Specifications

Available Mesh Counts: From 30 mesh up to 3200 mesh
Width Dimensions: 0.1~8 meters
Filtering Precision: 5-300μm
Materials: SUS302, 304, 304L, 316, 316L, 310, 310S dual-phase steel
Weaving Methods: Plain weave, twill weave, dense weave, and special-shaped weave

Material Properties

Stainless steel mesh offers excellent resistance to acids, alkalis, high temperatures, and wear due to its material characteristics.

Key Advantages

High open area/flow rate
Closely controlled, accurate apertures
Smooth surface with no sharp edges or burrs
Very high-temperature tolerance (varies by metal type)
Usable under high pressure
Flexible for forming rigid concave/convex shapes
Excellent chemical/acid/corrosion resistance
Custom aperture requirements without high tooling costs
High durability and self-supporting structure

Detailed Specifications

Mesh/Inch	Wire Diameter (Inch)	Wire Diameter (MM)	Aperture (Inch)	Aperture (MM)	Open Area	Weight (LB)/100 Square Foot
1x1	.080	2.03	.920	23.37	84.6	41.1
2X2	.063	1.60	.437	11.10	76.4	51.2
3X3	.054	1.37	.279	7.09	70.1	56.7

Packaging Options

Woven wire mesh is available in rolls or cut to size. We provide fine and strict packaging to ensure goods arrive undamaged. Standard packaging is as shown in the images below, or can be customized to your requirements.
