Product Details:
|
| Name: | Stainless Steel Filter Wire Mesh Cloth Stainless Steel Sieve Screen 80 Micron Mesh Sieve | Usage: | Oil, Space Flight, Chemical Industry. |
|---|---|---|---|
| Color: | Silver | Hole Shape: | Square Hole |
| Advantage: | Standard Mesh | Mesh Count: | 1x1-635x635mesh |
| Packing: | Paper Tube Inside+ Wodden Box +plastic Bag + Iron Pallet | OEM: | Support |
| Custom: | Support | ||
| High Light: | 80micron stainless steel wire mesh screen,oem stainless steel wire mesh screen,80micron stainless steel woven wire mesh |
||

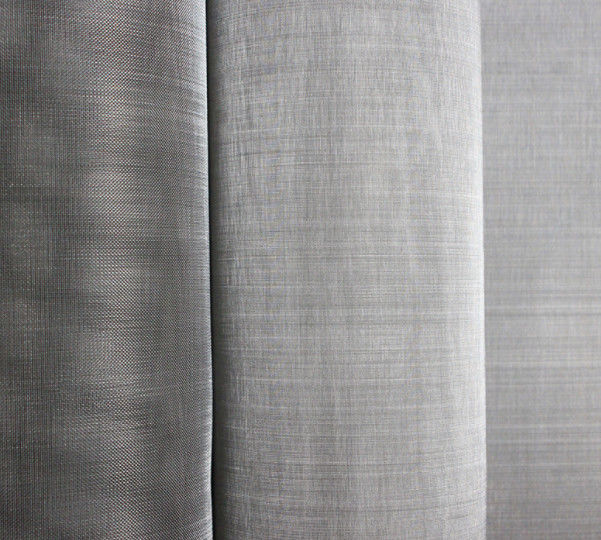

High-Density stainless steel woven mesh, also known as stainless steel wire mesh, square hole woven mesh, stainless steel mesh, is the use of superior stainless steel wire under specific high-temperature process conditions, through a drawing machine to a specific wire warp, and then at a constant temperature, Dust-free and clean workshops are woven by knitting machines.
High-Density stainless steel meshes commonly have 635 mesh, 500 mesh, 450 mesh, 400 mesh, 350 mesh, 325 mesh, 300 mesh, 280 mesh, 250 mesh, 200 mesh, 180 mesh, 150 mesh, 120 mesh, up to 3200 mesh Item.
The width dimension is 0.1~8 meters, and the filtering precision is 5-300μm.
The product materials are SUS302, 304, 304L, 316, 316L, 310, 310S dual-phase steel.
The weaving methods: plain weave, twill weave, dense weave, and special-shaped weave.
Due to the characteristics of stainless steel material, the product has the characteristics of acid resistance, alkali resistance, temperature resistance, and wear resistance.
If you are interested in our product, please contact me as soon as possible.
|
Name:
|
Stainless steel wire mesh,Stainless steel mesh screen,Stainless steel filter wire mesh, Metal wire mesh, Stainless steel square wire mesh |
| Material: | Stainless steel wire mesh 201/304/304L/316/316L/431/321 |
| mesh count: | 2-400 |
| Wire diameter: | 0.05mm-1.8mm |
| Width: | 0.5m-6m customized |
|
Feature:
|
Due to high content of Ni and Cr, it is with good oxidation resistance, Corrosion resistance, acid and alkali resistance, high temperature resistance. The maximum service temperature is 1200 |
|
Application:
|
Mainly used in petroleum, electronics, chemical industry, medicine, textile, food, mahinery, building, nuclear,power, aerospace, military industry etc. |
| Mesh/Inch | Wire Diameter | Aperture | Open Area | Weight(LB)/100 Square Foot | ||
| Inch | MM | Inch | MM | |||
| 1x1 | .080 | 2.03 | .920 | 23.37 | 84.6 | 41.1 |
| 2X2 | .063 | 1.60 | .437 | 11.10 | 76.4 | 51.2 |
| 3X3 | .054 | 1.37 | .279 | 7.09 | 70.1 | 56.7 |
| 4X4 | .063 | 1.60 | .187 | 4.75 | 56.0 | 104.8 |
| 4X4 | .047 | 1.19 | .203 | 5.16 | 65.9 | 57.6 |
| 5X5 | .041 | 1.04 | .159 | 4.04 | 63.2 | 54.9 |
| 6X6 | .035 | .89 | .132 | 3.35 | 62.7 | 48.1 |
| 8X8 | .028 | .71 | .097 | 2.46 | 60.2 | 41.1 |
| 10X10 | .025 | .64 | .075 | 1.91 | 56.3 | 41.2 |
| 10X10 | .020 | .51 | .080 | 2.03 | 64.0 | 26.1 |
| 12X12 | .023 | .584 | .060 | 1.52 | 51.8 | 42.2 |
| 12X12 | .020 | .508 | .063 | 1.60 | 57.2 | 31.6 |
| 14X14 | .023 | .584 | .048 | 1.22 | 45.2 | 49.8 |
| 14X14 | .020 | .508 | .051 | 1.30 | 51.0 | 37.2 |
| 16X16 | .018 | .457 | .0445 | 1.13 | 50.7 | 34.5 |
| 18X18 | .017 | .432 | .0386 | .98 | 48.3 | 34.8 |
| 20X20 | .020 | .508 | .0300 | .76 | 36.0 | 55.2 |
| 20X20 | .016 | .406 | .0340 | .86 | 46.2 | 34.4 |
| 24X24 | .014 | .356 | .0277 | .70 | 44.2 | 31.8 |
| 30X30 | .013 | .330 | .0203 | .52 | 37.1 | 34.8 |
| 30X30 | .012 | .305 | .0213 | .54 | 40.8 | 29.4 |
| 30X30 | .009 | .229 | .0243 | .62 | 53.1 | 16.1 |
| 35X35 | .011 | .279 | .0176 | .45 | 37.9 | 29.0 |
| 40X40 | .010 | .254 | .0150 | .38 | 36.0 | 27.6 |
| 50X50 | .009 | .229 | .0110 | .28 | 30.3 | 28.4 |
| 50X50 | .008 | .203 | .0120 | .31 | 36.0 | 22.1 |
| 60X60 | .0075 | .191 | .0092 | .23 | 30.5 | 23.7 |
| 60X60 | .007 | .178 | .0097 | .25 | 33.9 | 20.4 |
| 70X70 | .0065 | .165 | .0078 | .20 | 29.8 | 20.8 |
| 80X80 | .0065 | .165 | .0060 | .15 | 23.0 | 23.2 |
| 80X80 | .0055 | .140 | .0070 | .18 | 31.4 | 16.9 |
| 90X90 | .005 | .127 | .0061 | .16 | 30.1 | 15.8 |
| 100X100 | .0045 | .114 | .0055 | .14 | 30.3 | 14.2 |
| 100X100 | .004 | .102 | .0060 | .15 | 36.0 | 11.0 |
| 100X100 | .0035 | .089 | .0065 | .17 | 42.3 | 8.3 |
| 110X110 | .0040 | .1016 | .0051 | .1295 | 30.7 | 12.4 |
| 120X120 | .0037 | .0940 | .0064 | .1168 | 30.7 | 11.6 |
| 150X150 | .0026 | .0660 | .0041 | .1041 | 37.4 | 7.1 |
| 160X160 | .0025 | .0635 | .0038 | .0965 | 36.4 | 5.94 |
| 180X180 | .0023 | .0584 | .0033 | .0838 | 34.7 | 6.7 |
| 200X200 | .0021 | .0533 | .0029 | .0737 | 33.6 | 6.2 |
| 250X250 | .0016 | .0406 | .0024 | .0610 | 36.0 | 4.4 |
| 270X270 | .0016 | .0406 | .0021 | .0533 | 32.2 | 4.7 |
| 300X300 | .0051 | .0381 | .0018 | .0457 | 29.7 | 3.04 |
| 325X325 | .0014 | .0356 | .0017 | .0432 | 30.0 | 4.40 |
| 400X400 | .0010 | .0254 | .0015 | .370 | 36.0 | 3.3 |
| 500X500 | .0010 | .0254 | .0010 | .0254 | 25.0 | 3.8 |
| 635X635 | .0008 | .0203 | .0008 | .0203 | 25.0 | 2.63 |
-Flexible
- ideal for forming rigid concave / convex shapes.
-Control of chemical/acid/ corrosion resistance using different metals.
-Special aperture requirements can be met without high tooling costs.
-High durability.
-Self-supporting.
-Suitable as upper for less rigid media.
-Stable under tension
-The weaving process uses no punching, piercing or stretching operations that create
stress-induced weaknesses.
-Point contact only on the screened product allows freer screening and reduced binding.
-Corrosion, abrasion and heat resistance.
-Highly aesthetic appeal for architectural applications.
-Hygienic characteristics and clean ability are specifically suitable for the food and pharmaceutical industries.
Stainless Steel Woven Mesh Applications
Therefore, in recent years, stainless steel mesh has been widely used in coal mines, petroleum, chemical, food, medicine, machinery manufacturing, and other industries as mines and screen.
Woven wire mesh is available on the roll or cut to size.
Provide fine and strict packaging to ensure that the goods will not be damaged.
The usual packing is as the picture showed,or as costomized.
