4.5mm Standard Galvanized Steel Expanded Metal Sheet For Platform
Product Attributes
| Product name |
4.5mm standard galvanized steel expanded metal sheet for platform |
| Material |
Galvanized plate |
| Application |
Protecting Mesh |
| Type |
Flattened and Standard |
| Technique |
Perforated |
| Usage |
Construction |
| Hole shape |
Diamond Hole, hexagonal, etc |
| Short way of mesh |
2mm-50mm |
Product Introduction
Expanded metal is manufactured by slitting and stretching (expanding) the metal sheet with a die creating diamond/hexagonal shaped holes in one step. The connecting metal strands are called bonds that lie on top of each other creating a raised effect. Raised expanded metals are also called "regular" or "standard" expanded metal.
Standard expanded metal is an extremely versatile and economical product. It is offered in your choice of material, gauge, and opening size. Standard expanded metal sheets are ideal when a raised, slip-resistant surface is needed. It is available in aluminum, carbon steel, galvanized steel, or stainless steel.
Applications
Expanded metal mesh can be used for tanker footing netting, heavy machinery and boilers, oil mines, locomotives, 10,000-ton ships and other working platforms, escalators, walkways. It can also be used in the construction industry, highways and bridges for steel reinforcement.
In recent years, heavy duty hot-dipped expanded metal mesh panel has been favored by many customers and is popular. Expanded metal mesh is widely used for fencing, decoration and mechanical protection in various industries such as industry, agriculture, construction, transportation, mining, stadium, lawn, breeding, etc.
Product Specifications
| Material |
Stainless steel, Carbon steel, Galvanized plate, Aluminum, Brass, Copper |
| Hole Shape |
Diamond, Hexagon, etc. |
| Diameter |
5-10mm |
| Thickness |
0.5-25mm |
| Delivery Time |
8-14 days |
| Size |
1220*2440mm, 1500*6000mm, 1000*2000mm, 1500*3000mm, customized |
| Equipment |
CNC Punching Machine |
| Processing Service |
Bending, welding, decoiling, cutting, punching |
Expanded Mesh Terminology and Types
| S.W.D. |
Short Way Diamond |
| L.W.D |
Long Way Diamond |
| Bond |
Area where strands intersect |
| Strand Width |
Surface area of metal strips forming diamond |
| Strand Thickness |
Gauge of material being expanded |
| Flattening |
Flattened short dimension diamond parallel to rolls |
| Cross Flattening |
Flattened long way diamond parallel to rolls |
| Deburring |
Mesh passed through wire brushes to remove burns |
| Levelling |
Mesh roller levelled to reduce curving |
Key Features
- Heat reflectivity: The heat reflectivity of galvanized steel sheet is very high, which is twice that of galvanized steel sheet. People often use it as a material for heat insulation.
- Heat resistance: Aluminum-zinc alloy steel plate has good heat resistance and can withstand high temperatures of more than 300 degrees Celsius. It is very similar to the high temperature oxidation resistance of aluminum-plated steel plate.
- Excellent corrosion resistance for long-term durability.
- Economical: The density of 55% AL-Zn is lower than that of Zn, providing more coverage area when weight and thickness are equal.
- Easy to clean and maintain with stain-resistant properties.
Packaging
Wooden pallets + PVC films or Wooden Pallets for expanded mesh and aluminum mesh.
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

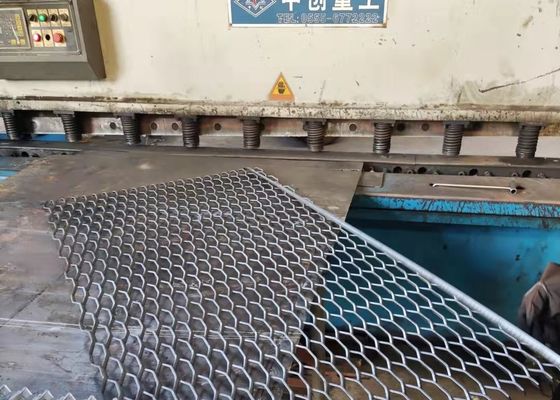

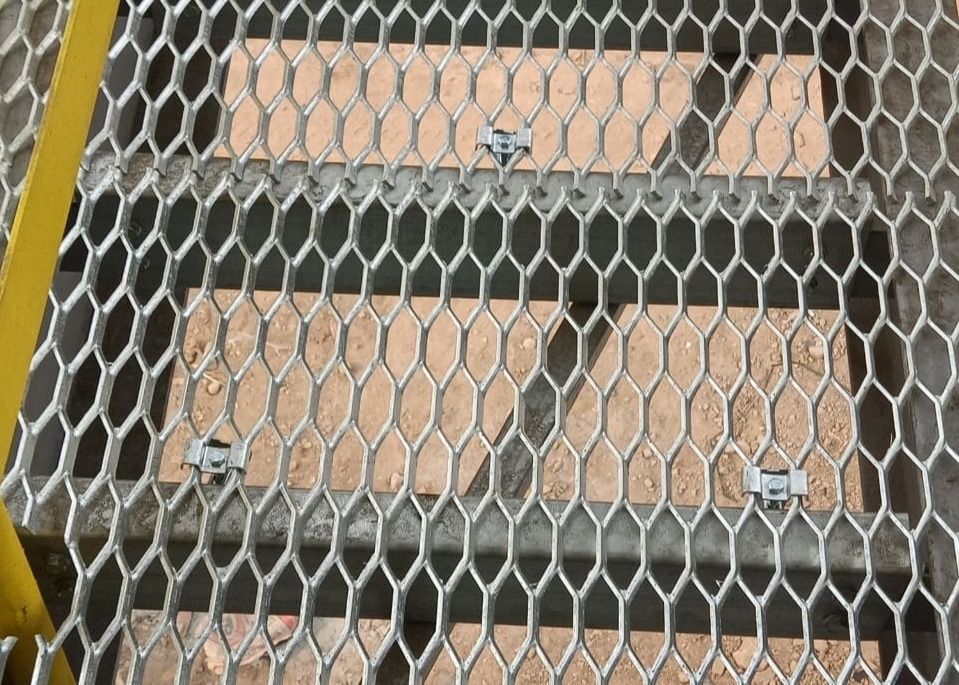

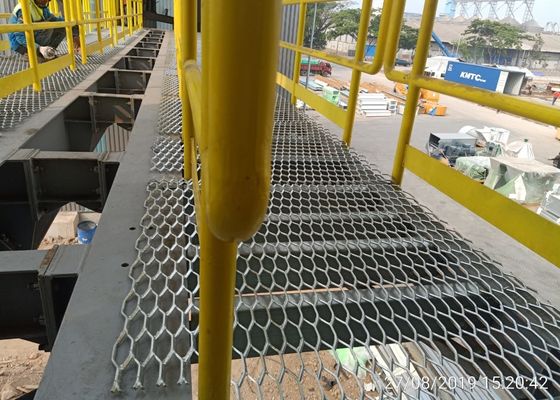

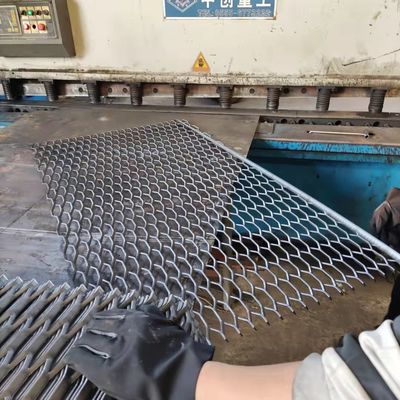

Product Images
