SUS 304 316 Stainless Steel Wire Mesh for Filters

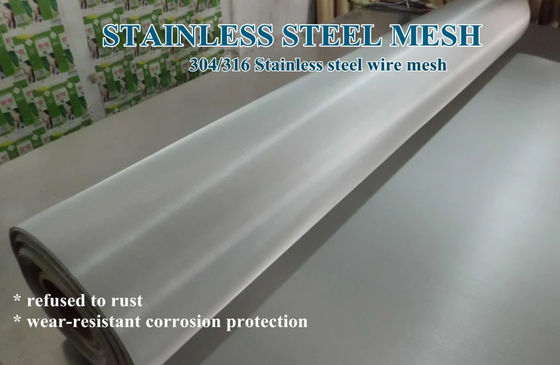

Large Image : SUS 304 316 Stainless Steel Wire Mesh for Filters

Product Details:

Place of Origin:	China
Brand Name:	Velp
Certification:	SGS CE ISO9002 BV
Model Number:	SS mesh - 17

Payment & Shipping Terms:

Minimum Order Quantity:	10sqm
Price:	USD10-USD20/SQM
Packaging Details:	Wooden Case / Iron Pallet + Bubble Film +Waterproof Paper +Safety Belts
Delivery Time:	15 days
Payment Terms:	MoneyGram,Western Union,T/T,L/C
Supply Ability:	2000 sqm per week

Contact Now

SUS 304 316 Stainless Steel Wire Mesh for Filters

Description

Name:	SUS 304 316 Wire Netting Cloth Micron Stainless Steel Wire Mesh For Filters	Package:	Bubble Film,kraft,plastic Cloth,wooden Case
Delivery Time:	5 Days For Stock Materials	Weave Style:	Plain Weave,twill Weave,Plain/Twill Weave,Dutch/Plain/Twill Weave,twill Or Dutch
Keywords:	Food Grade 100 Micron Stainless Steel Wire Mesh	Use:	Filters,sieve,chemical Industry,mine Industry,paper Making Etc
Samples:	A4 Size For Free
Highlight:	SUS 316 Micron Stainless Steel Mesh , SUS 304 Micron Stainless Steel Mesh , SUS 316 Wire Netting Cloth

SUS 304 316 Micron Stainless Steel Wire Mesh For Filters

Product Specifications

Attribute	Value
Name	SUS 304 316 wire netting cloth micron stainless steel wire mesh for filters
Package	Bubble film, kraft, plastic cloth, wooden case
Delivery time	5 days for stock materials
Weave style	Plain Weave, twill weave, Plain/Twill Weave, Dutch/Plain/Twill Weave, twill or dutch
Keywords	Food grade 100 micron stainless steel wire mesh
Use	Filters, sieve, chemical industry, mine industry, paper making etc
Samples	A4 size for free

Product Description

Our woven stainless steel mesh offers superior corrosion resistance. Available in standard grade 304 stainless steel or higher quality grade 316 (Marine Grade) which contains molybdenum for enhanced resistance in salt water or coastal environments.

Features of 100 Mesh Micron Stainless Steel Screen

304 stainless steel mesh provides excellent corrosion and intergranular corrosion resistance. Testing confirms strong performance in nitric acid (≤65% concentration below boiling temperature) along with good resistance to alkali solutions and most organic/inorganic acids.

Applications

Screening and filtering in acid/alkali environments
Petroleum industry (mud nets), chemical fiber industry (screens), electroplating (acid wash nets)
Mining, petroleum, chemical processing, food, pharmaceutical, and machinery manufacturing industries
Custom designs available to meet specific user requirements

Detailed Mesh Specifications

Meshes Per Linear Inch	Diameter of Wire	Width of Opening	Open Area %
10 x 10	0.047" (1.2mm)	0.053" (1.34mm)	28.1
10 x 10	0.035" (0.9mm)	0.065" (1.65mm)	42.3
325 x 325	0.0011" (0.028mm)	0.0020" (0.050mm)	42.0
400 x 400	0.0010" (0.025mm)	0.0015" (0.038mm)	36.0
500 x 500	0.0010" (0.025mm)	0.0011" (0.028mm)	25.0
635 x 635	0.0009" (0.022mm)	0.0006" (0.015mm)	14.5
