3.4lb Self Furring Expanded Metal Lath Stucco Wire Lath 96inch Length
Product Attributes
| Attribute |
Value |
| Product name |
galvanized expand stucco wire metal lath |
| Raw material |
galvanized steel |
| Zinc Coated |
ASTM:G60-G90 |
| MOQ |
500Pcs |
| Size |
27" * 96" |
| Weight |
3.4lb 2.5lb 1.75lb |
| Application |
building construction |
| Warranty |
5 years |
Product Description

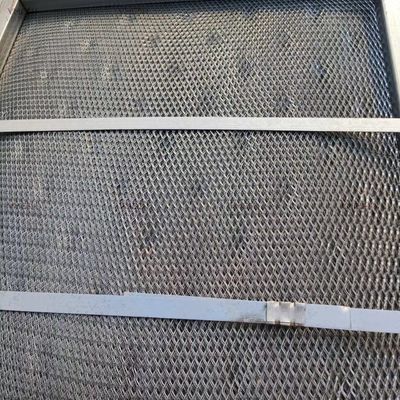

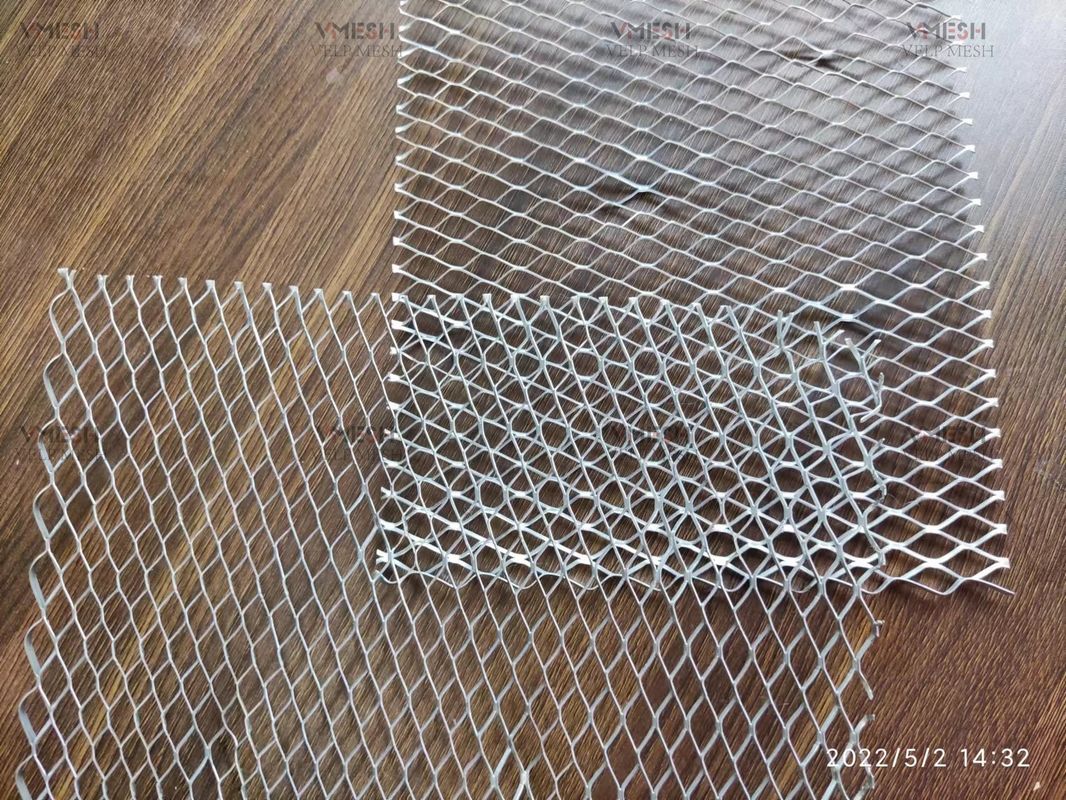

Self Furring Diamond Galvanized Expanded Metal Mesh Lath expand stucco wire metal lath 27" X 96"
27"*96" diamond galvanized flat rib expanded metal lath for interior and exterior stucco is manufactured by slitting and stretching galvanized steel to form small openings that allow the keying of plaster. Metal lath provides a lightweight and easily attachable base for plaster application.
Made from expanded steel, the lath is generally applied flat across the stud plane and attached with staples, nails or screws. The openings in the lath enable plaster to key around the metal to assure a secure bond and a flat, smooth surface for the plaster application.
Metal lath diamond stucco netting mesh is a popular building material in America for stucco work, primarily used in wooden construction. It comes in three types: flat galvanized diamond metal lath, self-furring dimpled diamond metal lath, and V grooved metal lath. This product is the flat diamond metal lath variety, and can also be offered with paper backing.
Product Specification
1.75lbs, 2.5lbs, and 3.4lbs expanded retaining dry walls plaster stucco galvanized mesh for formwork.
| Material |
Galvanized sheet G30 G60 G90, Stainless steel |
| Type |
Flat, self furring, dimples, "V" ribs |
| Size |
27"*96" |
| Weight/sq yd |
1.75lbs, 2.0lbs, 2.5lbs, 3.4lbs |
| Package |

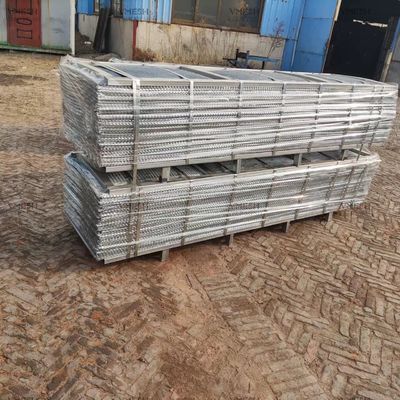

10 sheets/bundle, 500 sheets/pallets |
| Other products |
Angle beads, rib lath, coil mesh, diamond metal lath, expanded metal mesh, plaster bead, control joint beads |
| Quantity for one container |
12000pcs or 10000pcs |
Product Advantage
Metal lath diamond stucco netting mesh is ideal as a plaster base and reinforcement for all types of construction in walls, ceilings and fireproofing of steel beams and columns.
Easy to cut and form for ornamental plaster work. The expanded metal lath is available in 1.75lbs, 2.5lbs and 3.4lbs per square yards, in either flat, self-furred, dimpled or grooved varieties.
| Material |
Weight |
Width |
Length |
Packing |
| G60 G90 galvanized sheet |
1.75lbs |
27" |
96" |
10pcs per bundle, 50bundle per pallet |
| 2.5lbs |
27" |
96' |
10pcs per bundle, 50bundle per pallet |
| 3.4lbs |
27" |
96" |
10pcs per bundle, 50bundle per pallets |
The diamond metal lath is used in wall reinforcing, construction crack prevention, plaster network industry, civil construction, irrigation, municipal, transportation, road, and other projects. It's mainly used for residential wall plaster, repairing and reinforcing warehouses. Rib lath, stiffened by longitudinal ribs, is used on ceilings and partitions as well as walls.
