Building Material Expanded Metal Rib Lath Diamond Stucco Mesh 1.75lb
Product Specifications
| Attribute |
Value |
| Product name |
Metal building material expanded metal rib lath diamond stucco mesh |
| Package |
Iron pallet |
| Zinc Coated |
G30-G60-G90 |
| MOQ |
500Pcs/pallet |
| Size |
27" by 96" |
| Application |
Building construction |
| Weight |
3.4lb, 2.5lb, 1.75lb |
| Warranty |
More than 10 years |
Product Description

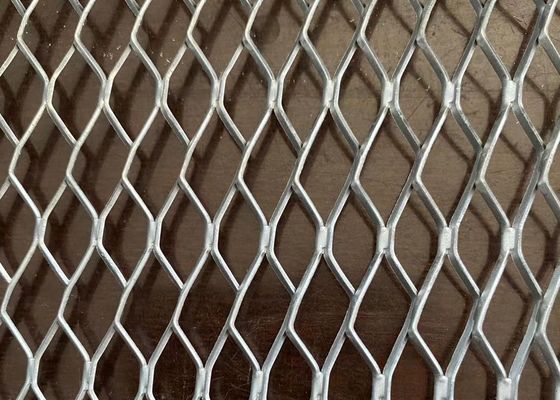

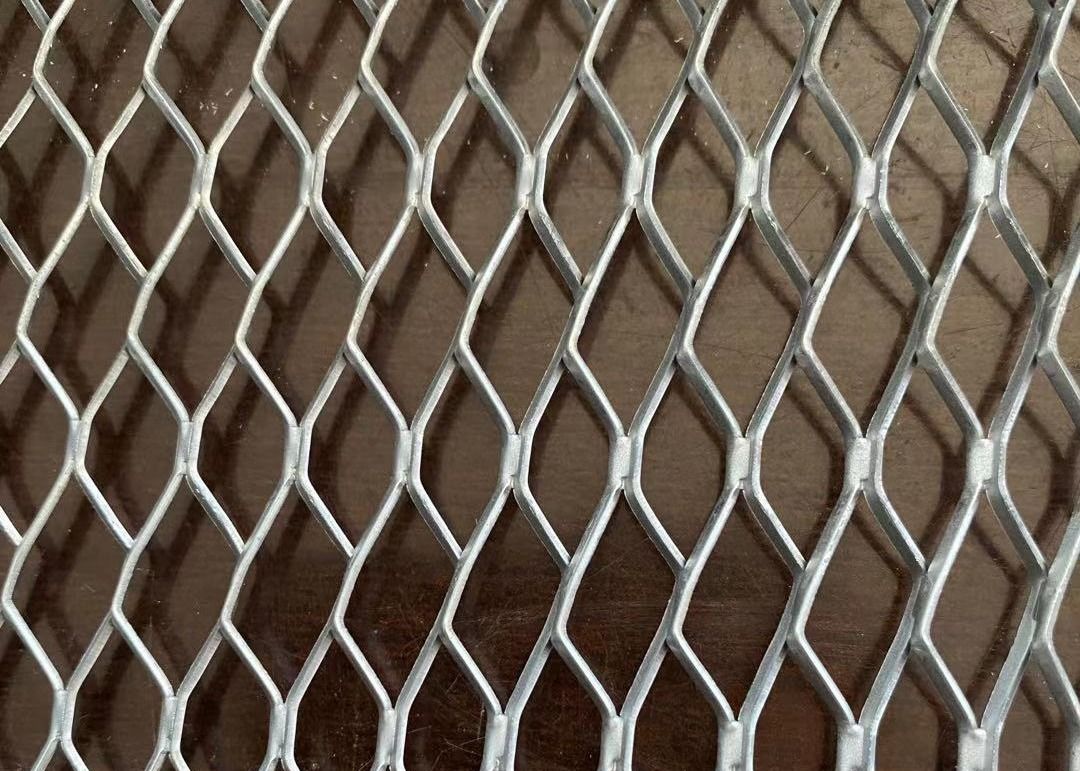

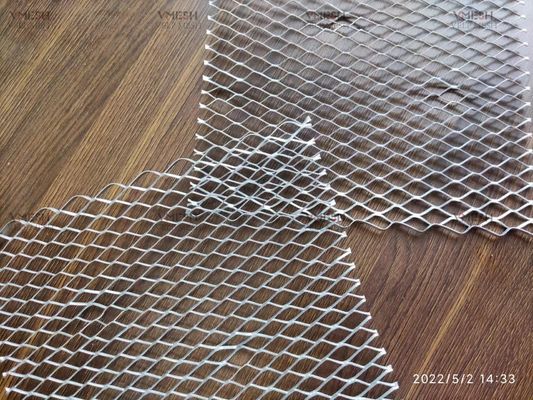

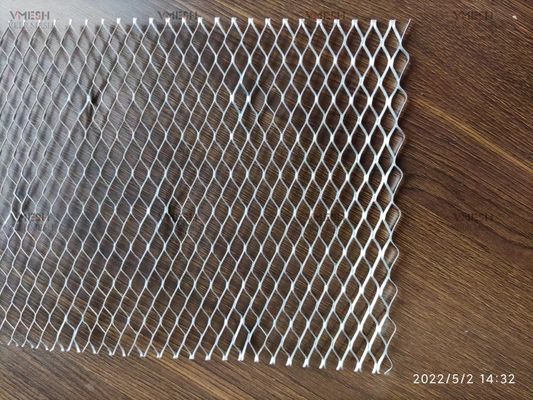

27"×96" diamond galvanized flat rib expanded metal lath for interior and exterior stucco is manufactured by slitting and stretching galvanized steel to form small openings that allow the keying of plaster. This metal lath provides a lightweight and easily attachable base for plaster applications.
Made from expanded steel, the lath is typically applied flat across the stud plane and attached with staples, nails, or screws. The openings in the lath enable plaster to key around the metal, ensuring a secure bond and creating a flat, smooth surface for plaster application.
This diamond stucco netting mesh is a popular building material in America for stucco work, primarily used in wooden construction. It comes in three types: flat galvanized diamond metal lath, self-furring dimpled diamond metal lath, and V-grooved metal lath. Paper-backed versions of these products are also available.
Technical Specifications
| Material |
Galvanized sheet G30, G60, G90; Stainless steel |
| Type |
Flat, self-furring, dimples, "V" ribs |
| Size |
27"×96" |
| Weight per sq/yd |
1.75lbs, 2.0lbs, 2.5lbs, 3.4lbs |
| Package |
10 sheets/bundle, 500 sheets/pallet |
| Related Products |
Angle beads, rib lath, coil mesh, diamond metal lath, expanded metal mesh, plaster bead, control joint beads |
| Container Quantity |
12,000pcs or 10,000pcs |
Product Advantages
- Available with diamond mesh lath, self-furring dimple lath, and self-furring V groove lath
- Compatible with both hand and machine applied plaster
- Available with Grade D asphalt paper backing
- Precise specifications with controlled production standards
- Smooth surface without burrs, excellent workmanship, sturdy and durable

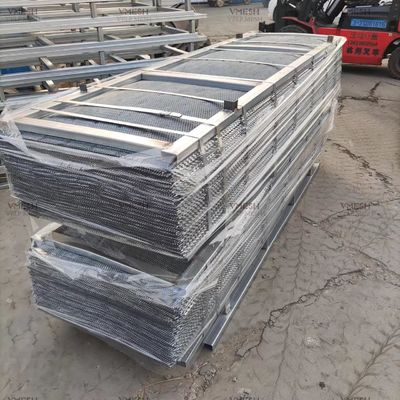

Packaging Details
| Material |
Weight |
Width |
Length |
Packing |
| G60/G90 galvanized sheet |
1.75lbs |
27" |
96" |
10pcs per bundle, 50 bundles per pallet |
| G60/G90 galvanized sheet |
2.5lbs |
27" |
96" |
10pcs per bundle, 50 bundles per pallet |
| G60/G90 galvanized sheet |
3.4lbs |
27" |
96" |
10pcs per bundle, 50 bundles per pallet |
The diamond metal lath is widely used in wall reinforcement, construction crack prevention, plaster network industry, civil construction, irrigation, municipal projects, transportation, and road construction. It's primarily used for residential wall plaster, warehouse repair and reinforcement, and as rib lath stiffened by longitudinal ribs for ceilings, partitions, and walls.
Manufacturer Information
Anping Velp Wire Mesh Products Co., Ltd was founded in 2000, located in the hometown of wire mesh - Anping County, China, covering an area of 20,000 square meters.
Specializing in stainless steel mesh, steel/aluminum expanded metal, perforated metal panel, chain link fence, welded mesh fence, filter mesh, and high rib lath, we have more than 15 years of experience in this field.
Velp has adopted modern management systems to ensure product quality. Our products are widely used in petroleum, chemical, construction, building decoration, and textile industries.
Main markets include Australia, Germany, France, UK, Spain, Sweden, Switzerland, Norway, Italy, USA, Canada, Brazil, Panama, Middle East, and Southeast Asia.
We sincerely hope to cooperate with every customer through superior products, reasonable prices, and comfortable services.
