ASTM G60 Galvanized Stucco Mesh 27x96in Dimple Diamond Hole

This expanded metal lath is widely used in plaster projects, providing an excellent plaster base. The permanent plate holds the plate approximately 1/4" away from solid surfaces to aid stucco adhesion, resulting in solid, flat plastering that resists cracking.

The Self-Furred Metal Lath is ideal for interior and exterior use over sheathing, masonry and other solid surfaces. The dimple self-furring plaster base features evenly spaced indentations that hold the metal lath ¼" away from the surface to be plastered.

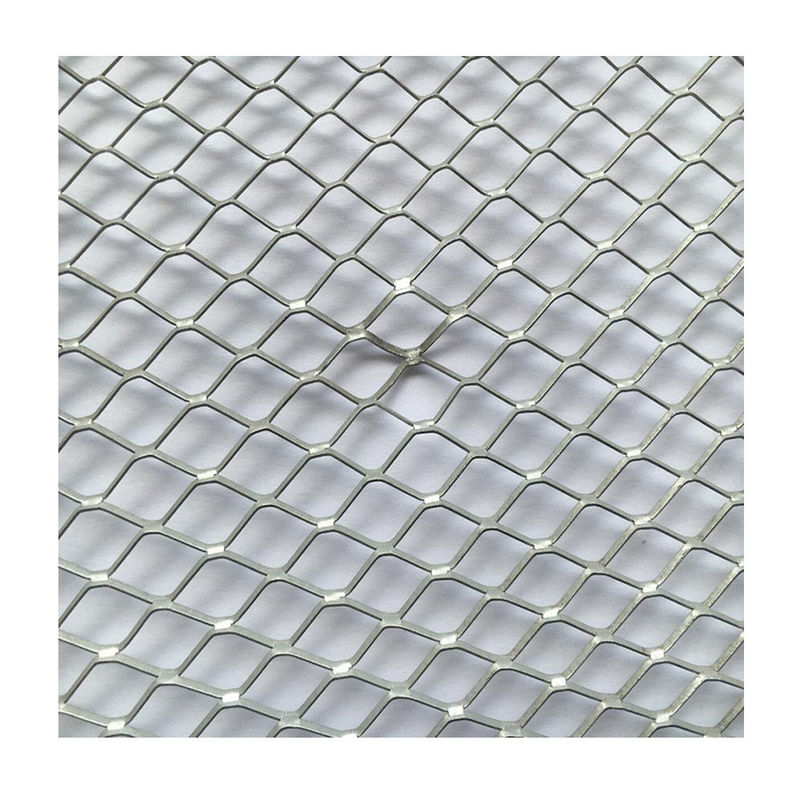

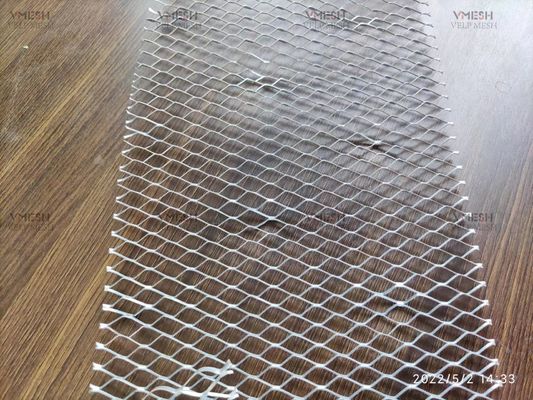

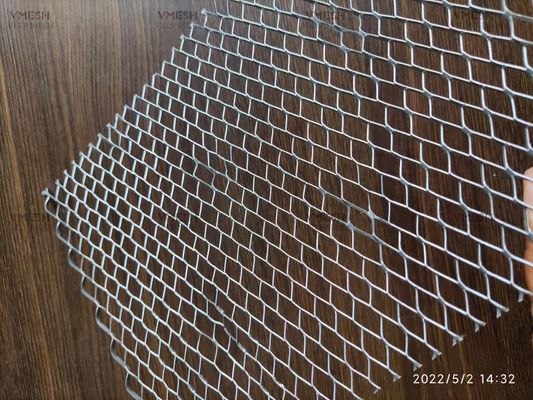

27"×96" G60 standard diamond galvanized flat rib expanded metal lath is manufactured by slitting and stretching galvanized steel to form small openings that allow plaster keying. The openings enable plaster to securely bond around the metal, creating a flat, smooth plaster surface.

• Available weights: 1.75lbs, 2.5lbs, 3.4lbs per square yard
• Material: Galvanized sheet G30, G60, G90; Stainless steel
• Types: Flat, self-furring, dimples, "V" ribs
• Size: 27" × 96"
• Package: 10 sheets/bundle, 500 sheets/pallet
• Container quantity: 12,000pcs or 10,000pcs

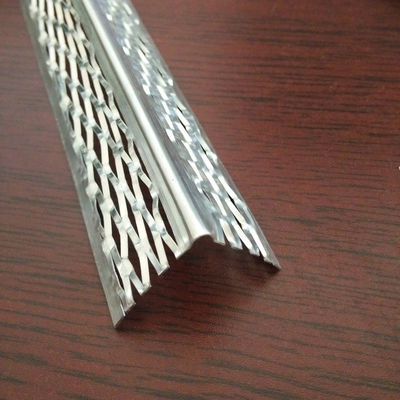

Angle beads, rib lath, coil mesh, diamond metal lath, expanded metal mesh, plaster bead, control joint beads.

Ideal as a plaster base and reinforcement for all types of construction in walls, ceilings and fireproofing of steel beams and columns. Easy to cut and form for ornamental plaster work.

Self-furred Stucco Lath is secured to masonry surfaces with hardened concrete nails and power-driven fasteners at the furring dimples. Paper-backed lath is often used as a bond breaker.

Used in wall reinforcement, construction crack prevention, plaster network industry, civil construction, irrigation, municipal projects, transportation, and road projects. Primarily for residential wall plaster, warehouse repair and reinforcement, ceilings, partitions, and walls.
