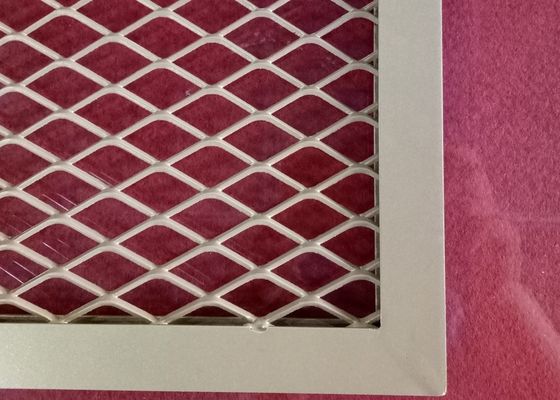

Perforated Expanded Metal Sheet Raised or Flattened 0.5-5CM Dia

Large Image : Perforated Expanded Metal Sheet Raised or Flattened 0.5-5CM Dia

Product Details:

Place of Origin:	China
Brand Name:	VELP
Certification:	SGS
Model Number:	002

Payment & Shipping Terms:

Minimum Order Quantity:	30pcs
Price:	USD10-USD20/SQM
Packaging Details:	iron pallet + safety belt+ plastic films
Delivery Time:	5-8 workdays
Payment Terms:	L/C,T/T
Supply Ability:	10000 Piece/Pieces per Month

Contact Now

Perforated Expanded Metal Sheet Raised or Flattened 0.5-5CM Dia

Description

Product Name:	Perforated Expanded Metal Raised Or Flattened Expanded Metal Sheet	Material:	Aluminum， GI, S/S.
Color:	Customized Any Color	Technique:	Perforated
Type:	Expanded Mesh	Wire Diameter:	Requirement 0.5-5CM
Surface Treatment:	Anodized,Powder Coated, PVDF，	Usage:	Screen,Curtain， Grating,
Packing:	Wooden Box	Sample:	Free
Highlight:	Expanded Metal Sheet Powder coated , Flattened Expanded Metal Sheet , 5CM dia Expanded Metal Sheet

Perforated Raised Or Flattened Expanded Metal Sheet 0.5-5CM Dia

Product Specifications

Attribute	Value
Product name	Perforated Expanded Metal Raised Or Flattened Expanded Metal Sheet
Material	Aluminum, GI, S/S
Color	Customized any color
Technique	Perforated
Type	Expanded Mesh
Wire diameter	Requirement 0.5-5CM
Surface treatment	Anodized, Powder coated, PVDF
Usage	Screen, Curtain, Grating
Packing	Wooden box
Sample	Free

For Exact Pricing Information

Please provide details about: material, sheet thickness, sheet size, hole size, strand width, surface treatment and quantity.

We can assist with design if you don't have clear specifications.

Product Overview

Expanded metal mesh is available in two primary forms:

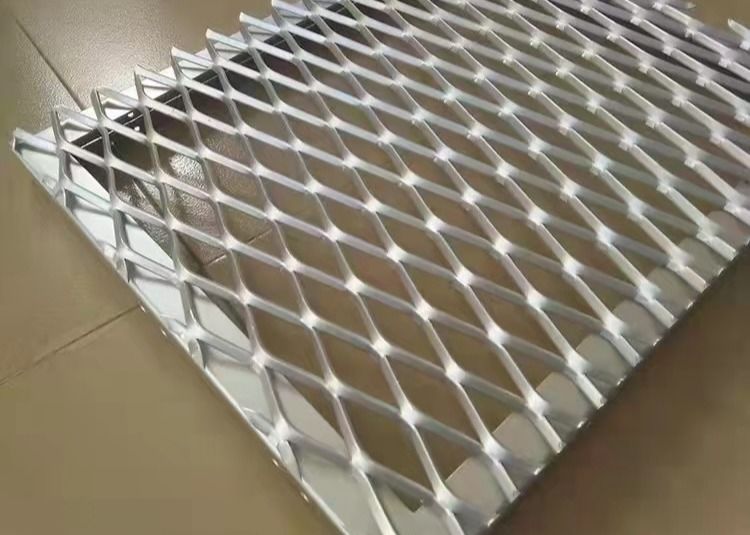

Raised Expanded Metal (Standard) - Features diamond openings with slightly raised surface
Flattened Expanded Metal - Processed through cold roll reducing mill for flat surface diamond openings

Technical Specifications

Parameter	Options
Material	Stainless steel, Carbon steel, Galvanized plate, Aluminum, Brass, Copper
Hole Shape	Diamond, scale hole, gothic hole (custom designs available)
Thickness	0.5-25mm
Surface treatment	PVC coated, Powder coating, Anodized oxidation, paint, polishing, Fluorocarbon spraying
Standard Sizes	1220×2440mm, 1500×6000mm, 1000×2000mm, 1500×3000mm (custom sizes available)
Delivery Time	3-14 days

Manufacturing Process

Our expanded metal mesh is produced using CNC Punching Machines that cut and stretch the original metal plate, creating a product that is stronger, lighter, and more rigid than the base material.

Key Advantages

Single-piece construction for durability
Lighter weight and more economical than solid metal sheets
Wide material selection for diverse applications
Combines structural strength with decorative appeal
Superior durability and cost-effectiveness
Simple installation process

Applications

Architectural Uses

Expanded metal ceilings and curtain walls have become essential in modern architecture, offering both structural support and aesthetic appeal with their distinctive open patterns.

Decorative Applications

Our customizable steel mesh solutions can be tailored to meet specific decorative requirements for various design projects.

Industrial Applications

Heavy-duty expanded metal is ideal for mechanical pedal mesh, boiler applications, mining equipment, transportation platforms, and industrial walkways.

Stair Construction

Expanded metal provides an attractive, durable solution for stair treads that can be customized to meet specific safety and design requirements.

Product Gallery
