Product Details:
|
Name: | Flexible Stainless Steel Wire Rope Mesh | Edge Type: | Knotted, |
---|---|---|---|
SIZE: | 1*2M, 1.22*2.44M, Customized | Aperture: | 20*20mm 30*30mm 50*50mm 80*80mm 100*100mm Customized |
Surface Treatment: | Non, Black Oxidation | Packing: | Rolls Or Panels |
Wire Diameter: | 1mm-3mm | Material: | Stainless Steel Wire 304/316 |
Highlight: | aviary stainless steel rope wire mesh,30x30mm stainless steel rope wire mesh,ss 304 steel wire rope net |
Attribute | Value |
---|---|
Name | Flexible stainless steel wire rope mesh |
Edge Type | Knotted |
Size | 1*2M, 1.22*2.44M, customized |
Aperture | 20*20mm, 30*30mm, 50*50mm, 80*80mm, 100*100mm, customized |
Surface Treatment | Non, Black Oxidation |
Packing | Rolls Or Panels |
Wire Diameter | 1mm-3mm |
Material | Stainless Steel Wire 304/316 |

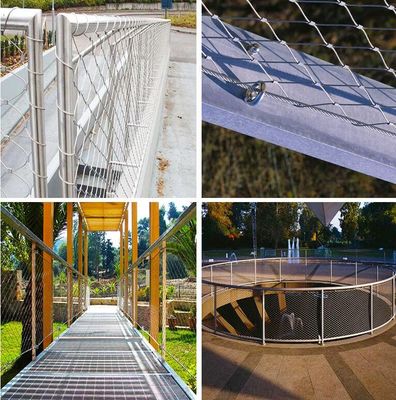

Stainless steel rope mesh serves multiple purposes including zoo enclosures, aviary mesh, decorative applications, and various railing systems. Its strength and reliability make it ideal for safety applications like stair railings, balustrades, guardrails, and bridge railings, effectively preventing falls while offering design flexibility.

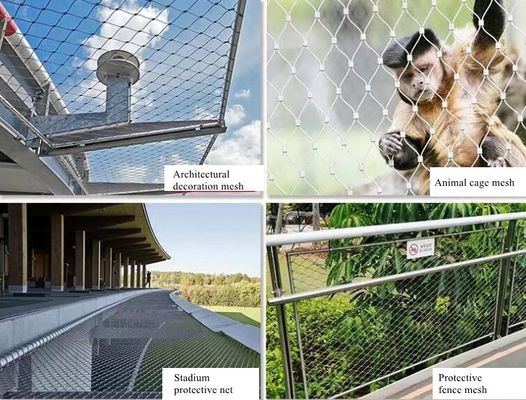

This versatile product is used in zoos, aviaries, decorative installations, and various railing systems. Its transparency creates open visual spaces while providing security. Applications include:
Available in widths from 0.5m-2.5m with customizable apertures (20x20mm to 100x100mm). Perfect for bird aviary netting and specialized rope mesh applications.
Cable Diameter | Mesh Opening Size | Nominal Break |
---|---|---|
1/8 inch (3.2mm) | 4x4 inch (102x102mm) | 1600 lbs |
1/8 inch (3.2mm) | 3x3 inch (76x76mm) | 1600 lbs |
1/8 inch (3.2mm) | 2x2 inch (51x51mm) | 1600 lbs |
3/32 inch (2.4mm) | 4x4 inch (102x102mm) | 920 lbs |
3/32 inch (2.4mm) | 3x3 inch (76x76mm) | 920 lbs |
3/32 inch (2.4mm) | 2x2 inch (51x51mm) | 920 lbs |
5/64 inch (2.0mm) | 3x3 inch (76x76mm) | 676 lbs |
5/64 inch (2.0mm) | 2x2 inch (51x51mm) | 676 lbs |
5/64 inch (2.0mm) | 1-1/2x1-1/2 inch (38x38mm) | 676 lbs |
